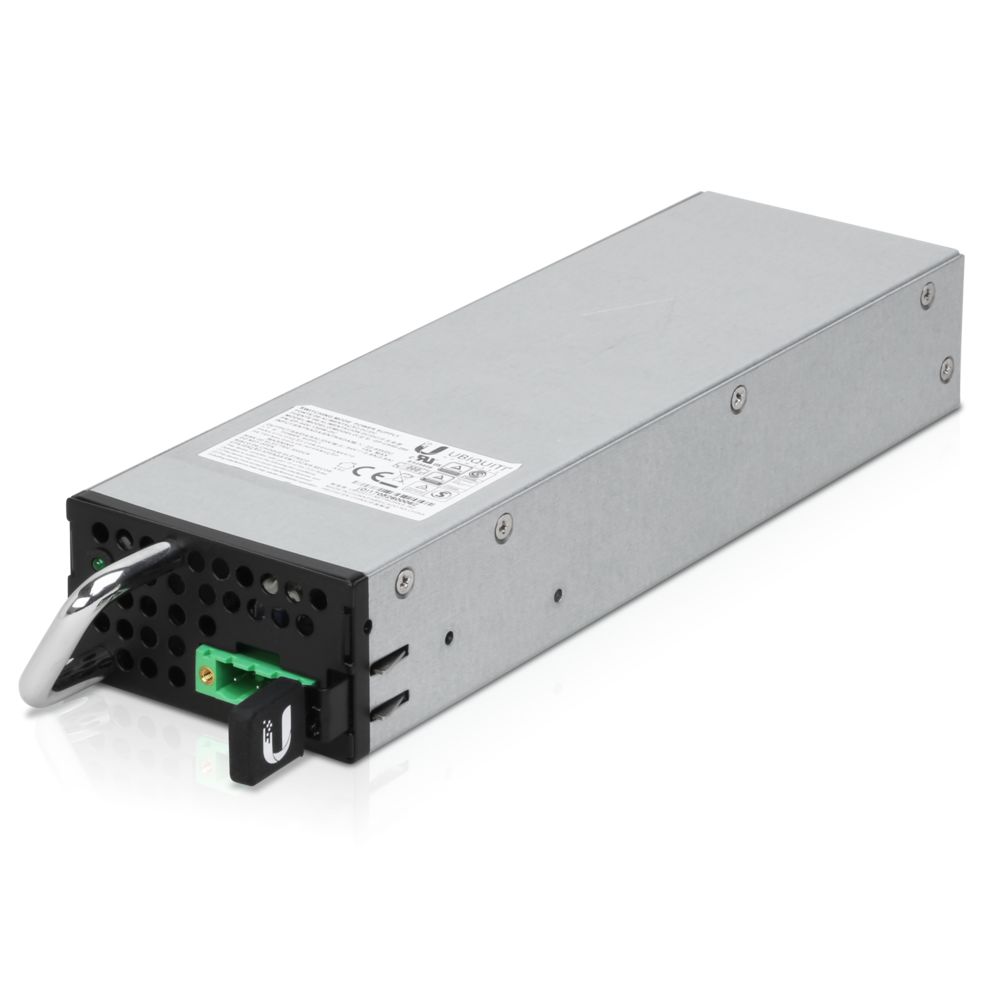

Ubiquiti EdgePower, 54v, 150W

Power supply module for use with the EdgePower EP-Supply (54V 150W model) 54V, 150W max power
Increase total power up to 300W
Compatible with EdgePower EP-54V-150WTechnical Specifications EP-54V-150W -AC Power Method AC/DC 150W for 110-240VAC input, DC terminal block for 54V output Power supply AC/DC 150W for 110-240VAC input Voltage range AC/DC for 110-240VAC input, 54V output LED system on/off ESD/EMP protection air ± 8 kV contact ± 6kV operating temperature 0 to 40 °C (32 to 104 °F) operating humidity 10 - 90% non-condensing Certifications CE, FCC, IC EP-54V-150W-DC Power method DC/DC 150W for 22-60V input, DC terminal block for 54V output Power supply DC/DC 150W for 22-60V input Voltage range DC/DC for 22-60V input, 54V output Battery Type Lead-acid battery series 2/3/4 Maximum charging voltage
2 series,
3 series,
4 series
26.8 - 27.5 V,
40.2 - 41.2 V,
53.6 - 55 V Discharge protection voltage 2 series,
3 series,
4 series
21.5 V
, 32 V
, 43 V Charging current
2 series,
3 series,
4 series
0.3A
0.3A
0.2A LED system on/off ESD/ EMP protection air ± 8 kV contact ± 6kV operating temperature 0 to 40 °C
(32 to 104 °F) operating humidity 10 to 90% non-condensing Certifications CE, FCC, IC
