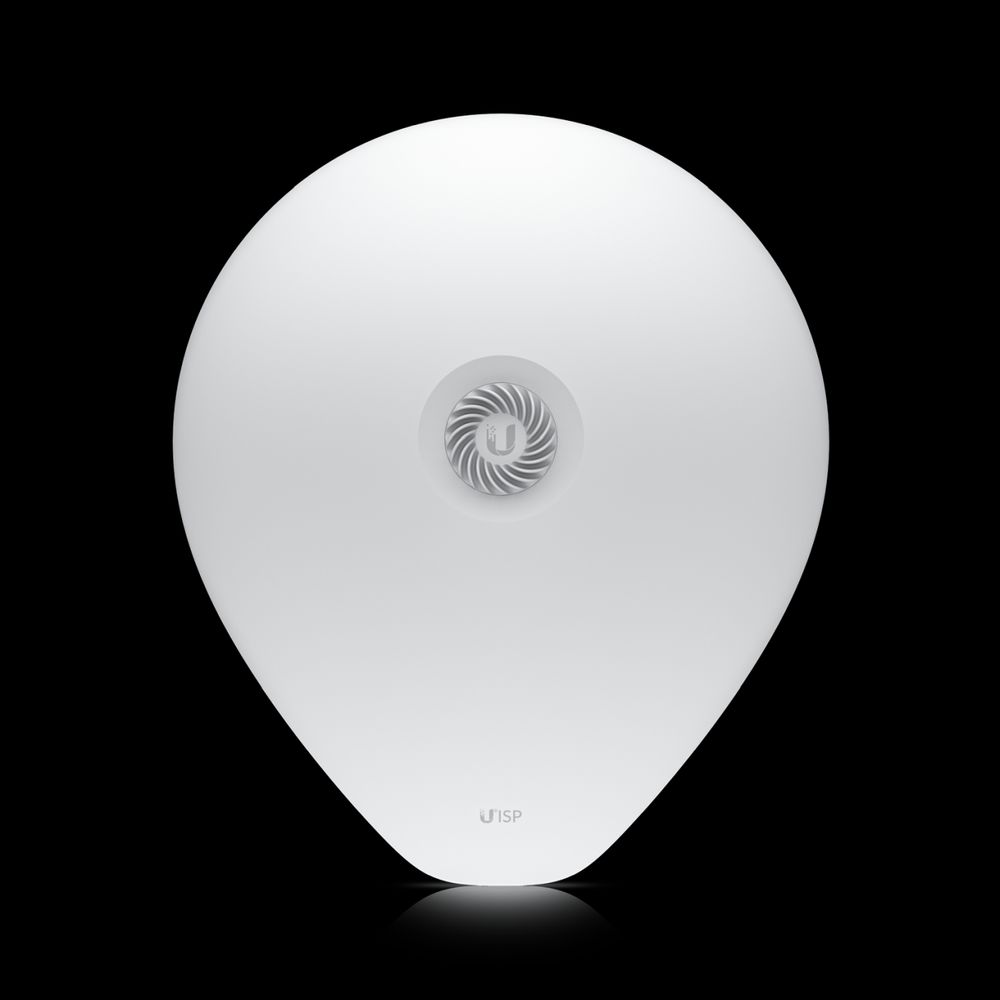

Ubiquiti AF60-XR 60GHz

Multi-Gigabit 60 GHz bridge designed to build long-distance connections, delivering a total throughput of 5.4 Gbit/s (2.7 Gbit/s duplex). Over 15 km connection range
2.7 Gbps duplex
Weather-resistant backup radio with 5 GHz and 800+ Mbps

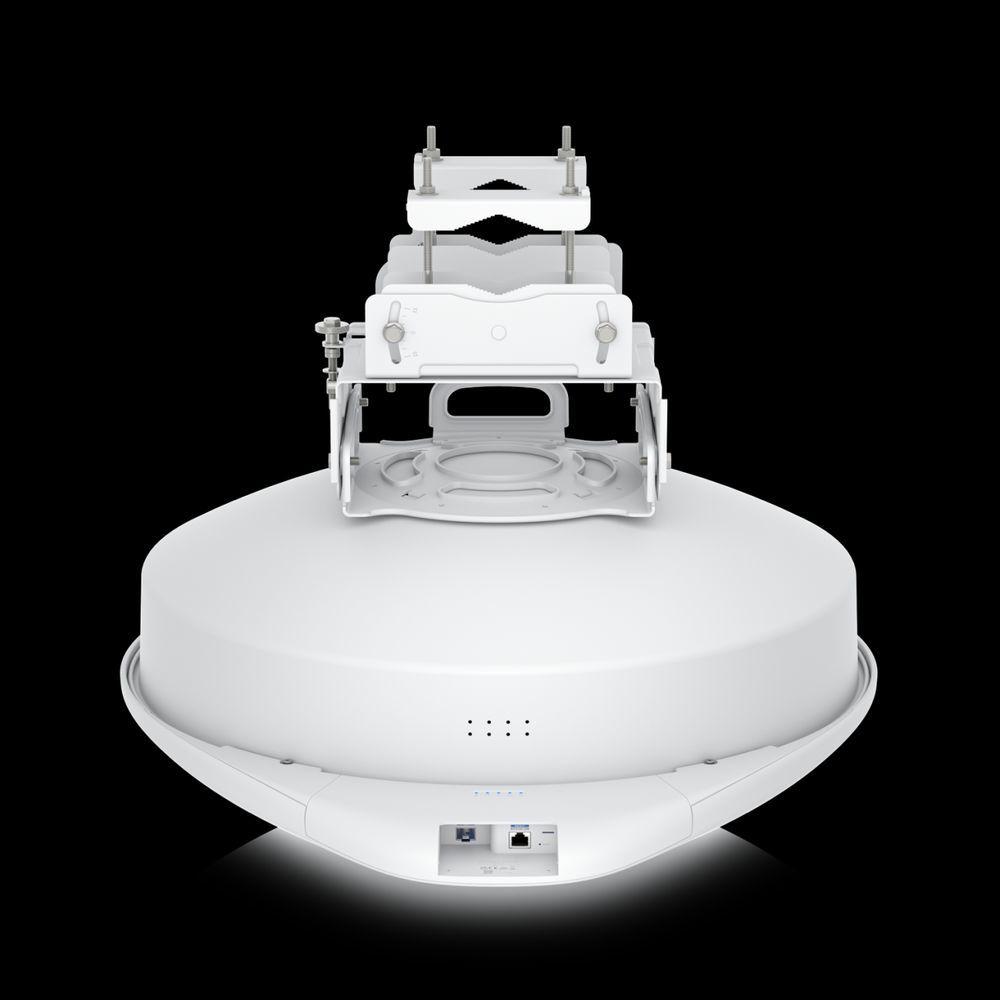

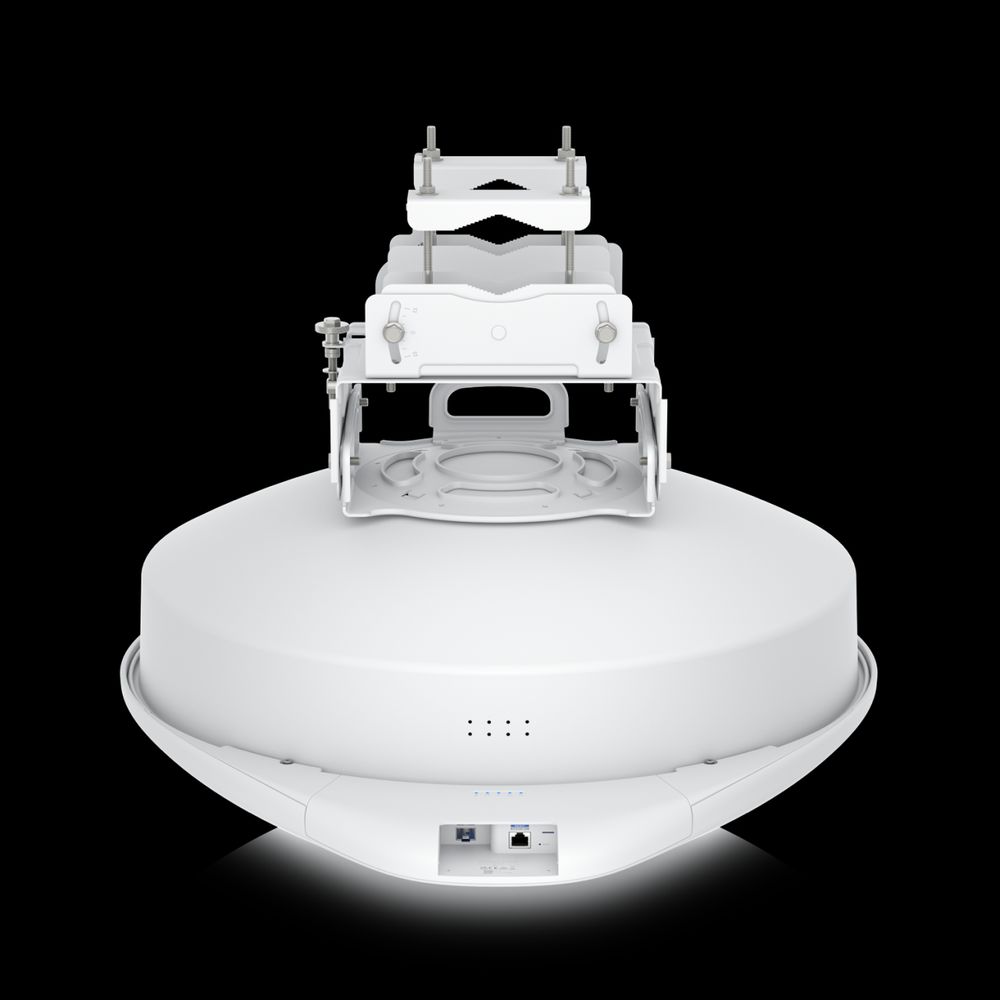

(1) GbE and (1) 10G SFP+ port

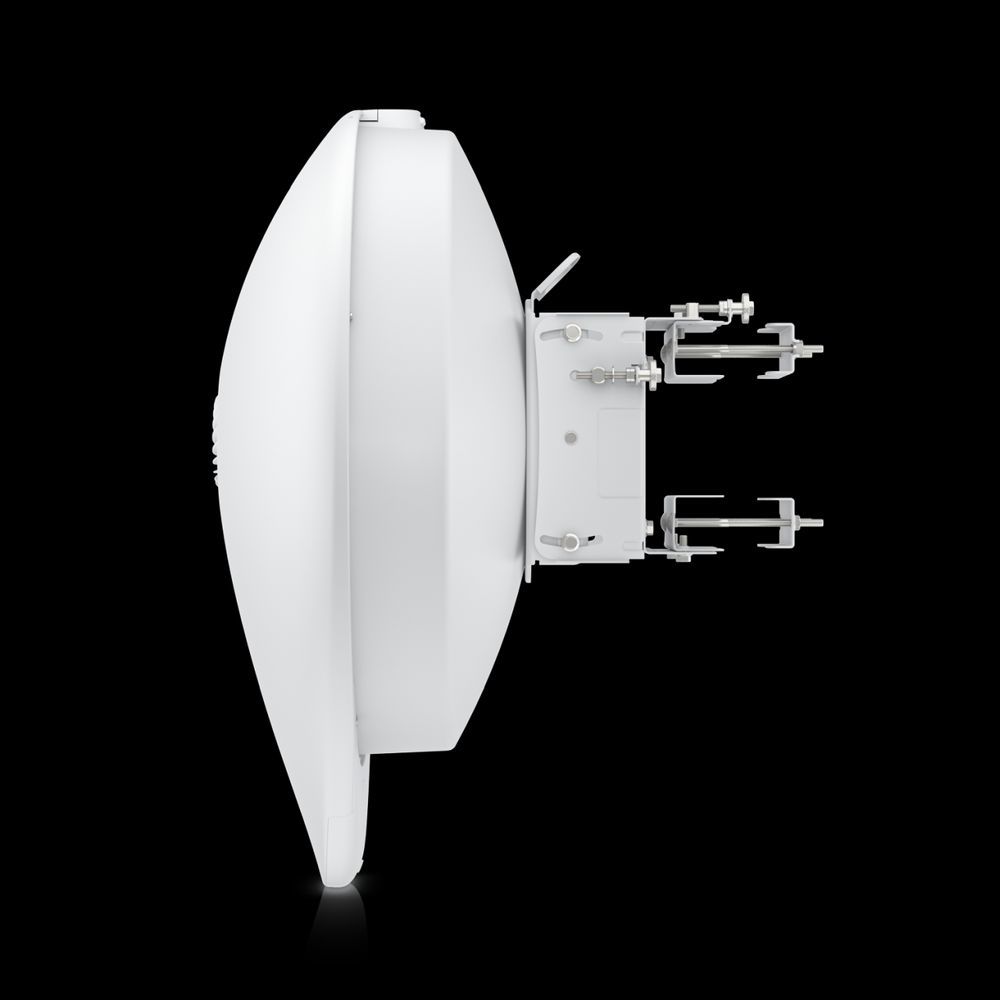

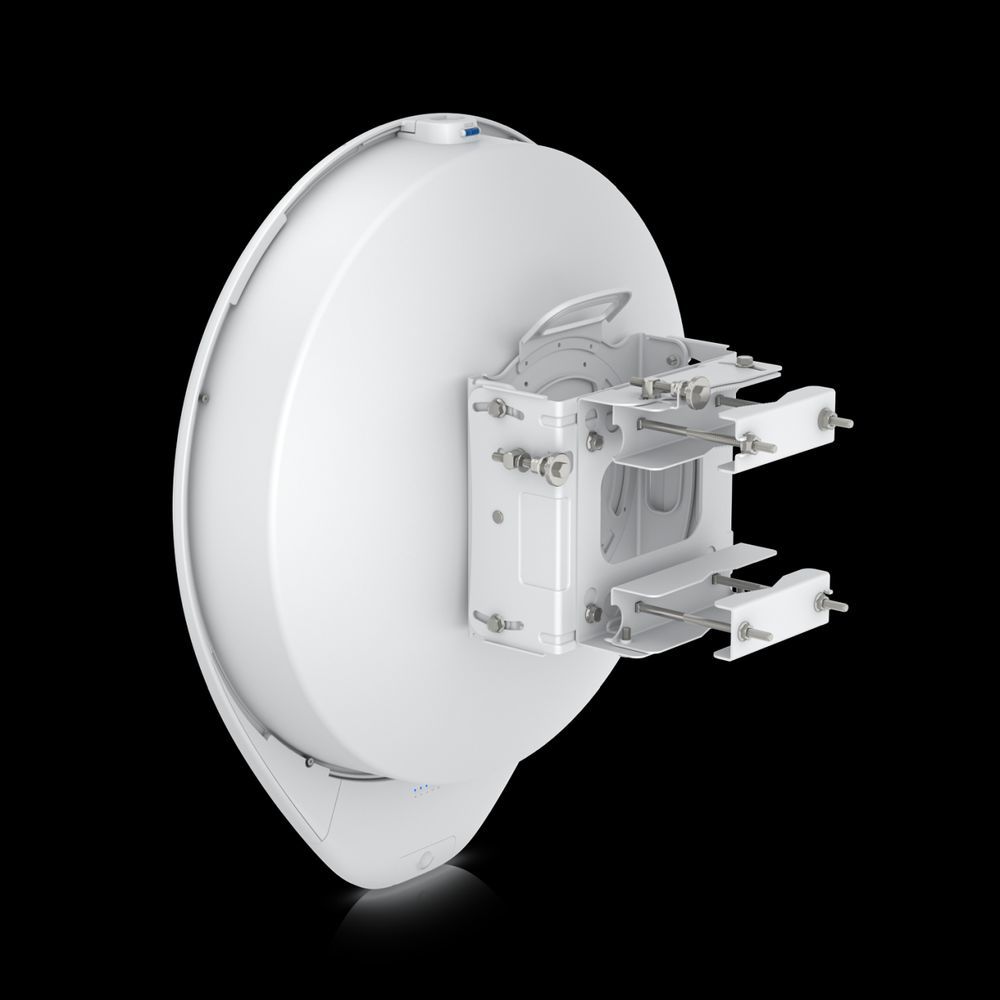

Precision alignment bracket
Integrated GPS and Bluetooth
Note . This product should be purchased in pairs to form connections.Technical Specifications Mechanical Dimensions 779 x 664 x 383 mm (30.7 x 26.1 x 38,4 cm ( 15,1 inch )) Weight Without bracket: 8.6 kg (19 lb)
With bracket : 13 kg (28.7 lb) Housing materials UV-stabilized polycarbonate, steel Mounting material Galvanized steel Mounting Precision alignment kit (included)

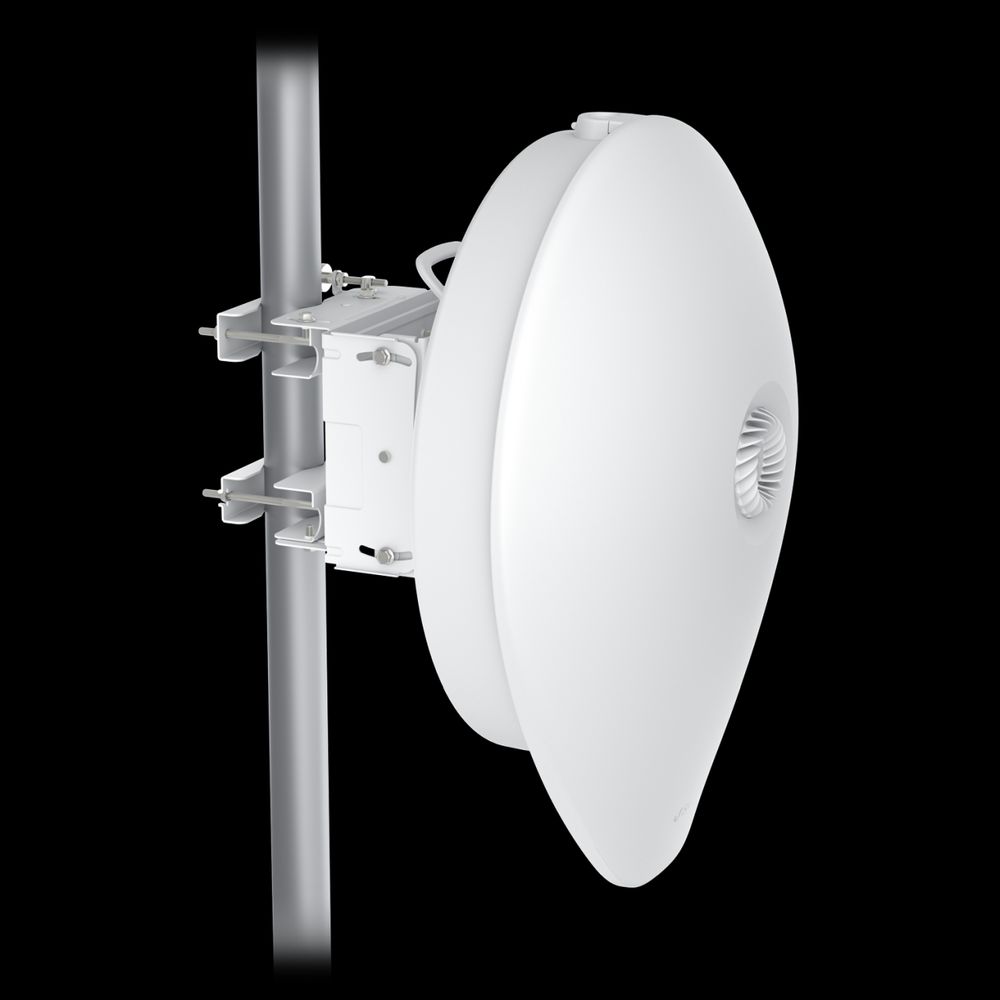

Pole compatibility: Ø40 to 80 mm (Ø1.5 to 8 cm ( 3,1 inch )) on pipe outside diameter Wind load 422 N at 200 km/h (94.86 lbf at 125 mph) Weatherproof IPX6 Hardware Processor Quad-Core ARM® Cortex®-A53 with 1.4 GHz Memory DDR3L1 GB Network Interface (1) GbE RJ45 port
(1) 1/10G SFP+ port Max. Energy Consumption 24W Power Method Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54V DC Power supply 48V DC, 0.65A Gigabit PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal Button Factory reset Operating temperature -40 to 55 °C (-40 to 131 °F) Operating Humidity 5 to 95% non-condensing Certifications FCC, IC, CE Software Operating Mode PtP only Ubiquiti-specific features Integrated 60 GHz radio, Discovery Protocol, Wave technology Services UISP, Ping Watchdog, NTP Client, Device Discovery Tools Antenna Alignment, Discovery Utility, Ping, Route Tracking, Speed Test Network Bridge Mode Management Application UISP Web: Version 1.4.3 and above
UISP iOS™: Version 2.20 and above
UISP Android™: Version 2.21.5 and above System Max. Throughput 2.7 Gbps Max Range 15+ km Encryption WPA2-PSK (AES) RF Working Frequency* 57-71 GHz
* Depends on regulatory region. Channel bandwidth 2160, 1080 MHz Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz
* Depends on regulatory region. Management Radio 2400-2483.5 MHz Modulation 16QAM, BPSK, QPSK Polarization Vertical Linear Beam Width Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4° Electrical Down Tilt 0° Backup RF Operating Frequency*
USA/CA
Worldwide
U-NII- 1 5150-5250MHz
U-NII-2A 5250-5350MHz
U-NII-2C 5470-5725 MHz
U-NII-3 5725-5850 MHz
5150-5875 MHz
*Depending on regulatory region. Channel bandwidth 20, 40, 80 MHz modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2/3), 64QAM (¾), 64QAM (5/6 ), 256QAM (¾), 256QAM (5/6) Antenna gain 26 dBi Polarization Dual-linear Beam width Azimuth: 3 dB 5°
Elevation: 3 dB 5° Cross-pole isolation 14 dB Electrical downward tilt 0° LEDs Power Flashing white: Booting running.
White: not connected to the UISP application.
Blue: connected to the UISP application Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals Link Blue: 5 GHz connection.
Blue: 60GHz connection
