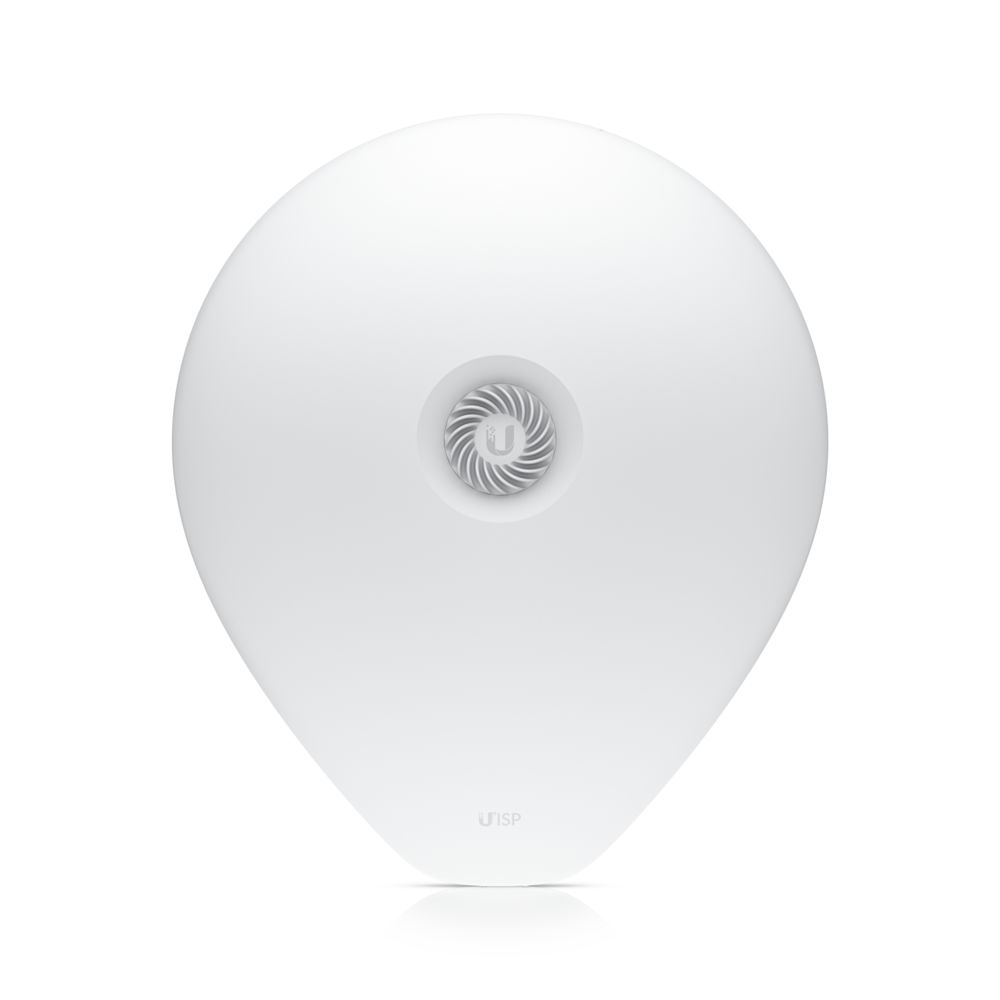

Ubiquiti AF60-XG 60GHz
|
935,02 EUR 969,02 EUR |
|
|
( 1.112,67 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1705930 |
|---|---|
| Mfg Part No: | AF60-XG |
| Weight: | 13.6 kg |
Product information for Ubiquiti AF60-XG:
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support. 4+ km connection range
6 Gbps max throughput
Weatherproof backup radio with 5 GHz and 800+ Mbps
(1) GbE and (1) 10G SFP+ port

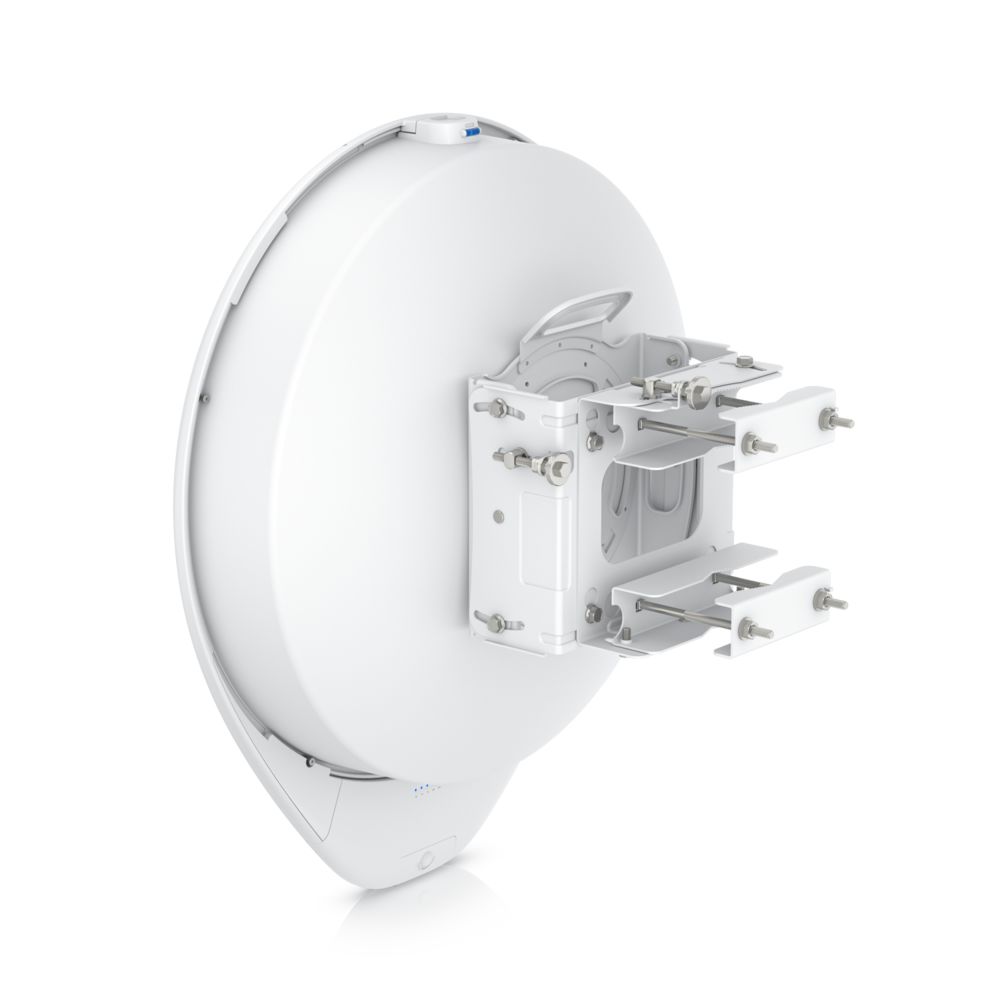

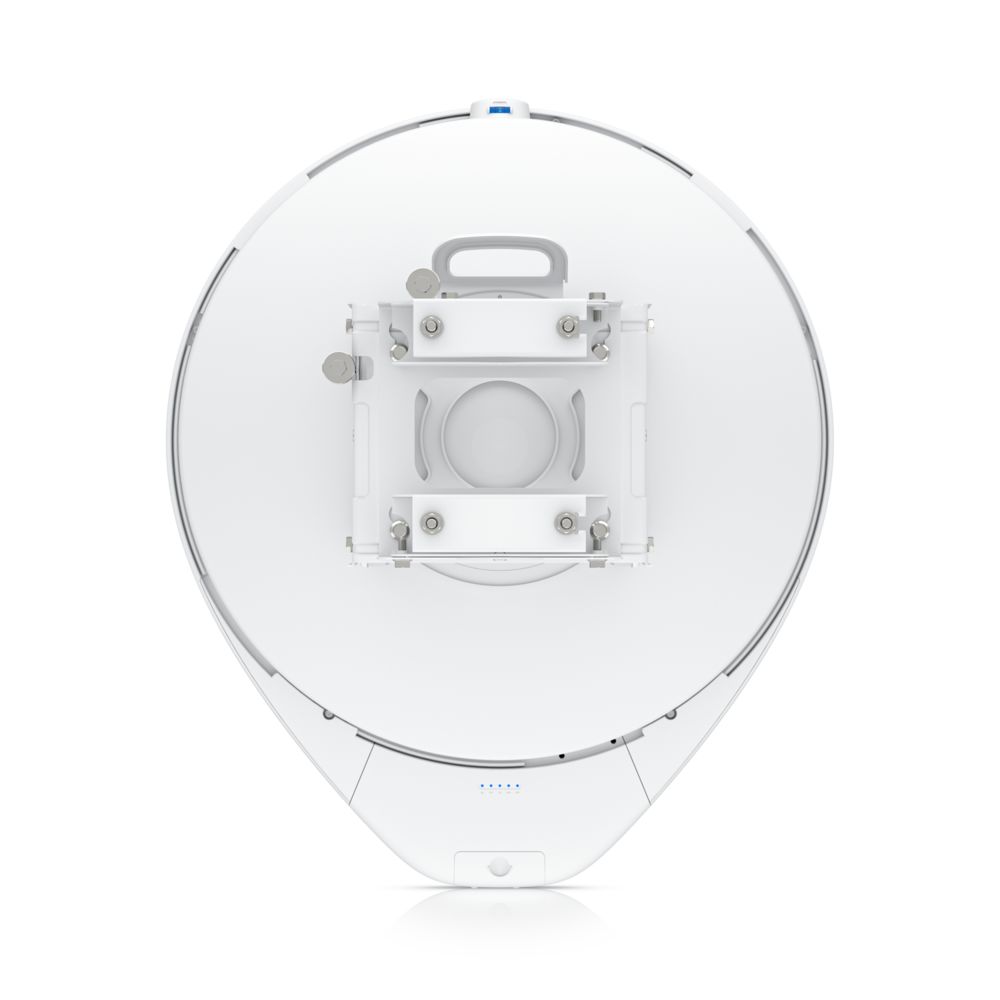

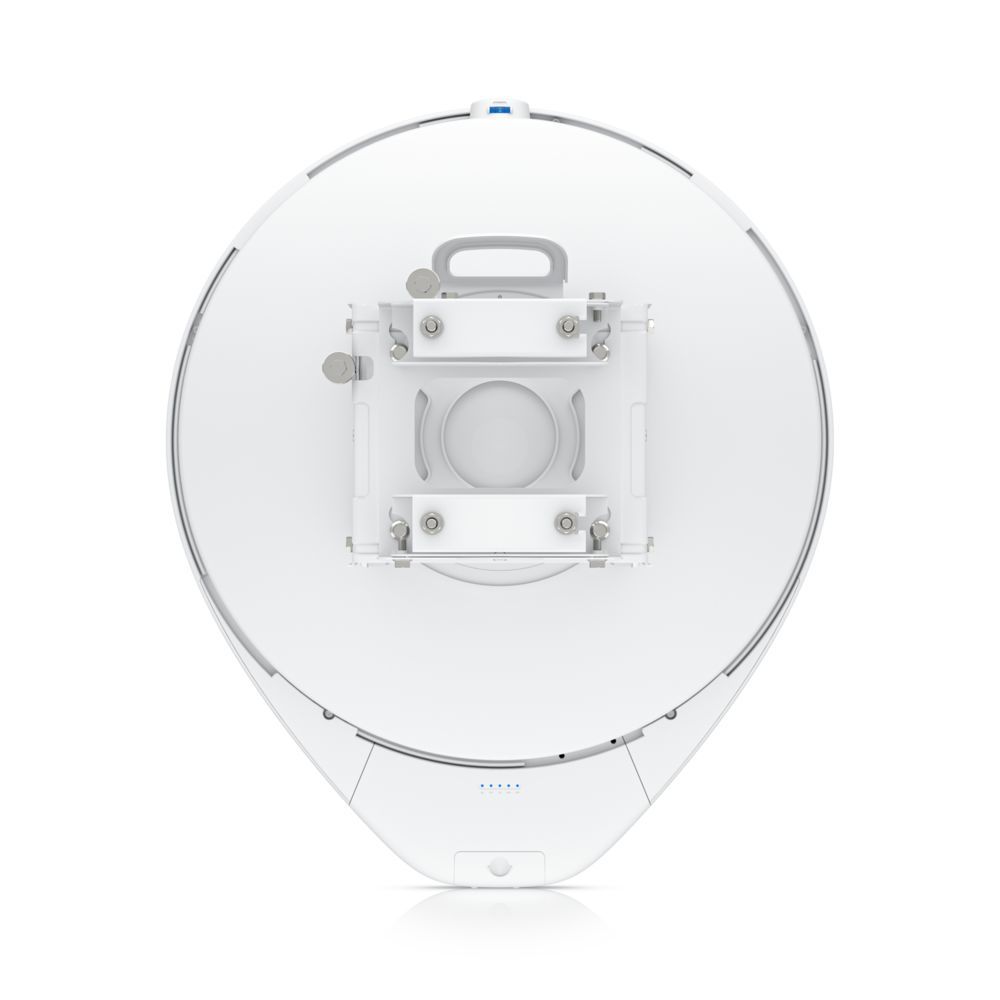

Precision alignment bracket
Integrated GPS and Bluetooth
Terragraph certified
Note . This product should be purchased in pairs to form connections.
Technical specifications Mechanical Dimensions 779 x 664 x 383 mm (30.68 x 26.14 x 38,3 cm ( 15,1 inch )) Weight Without bracket: 8.6 kg (19 lb)
With bracket: 13 kg (28.7 lb) Housing materials UV Stabilized polycarbonate, steel Mounting material Galvanized steel Mounting Precision alignment kit (included)

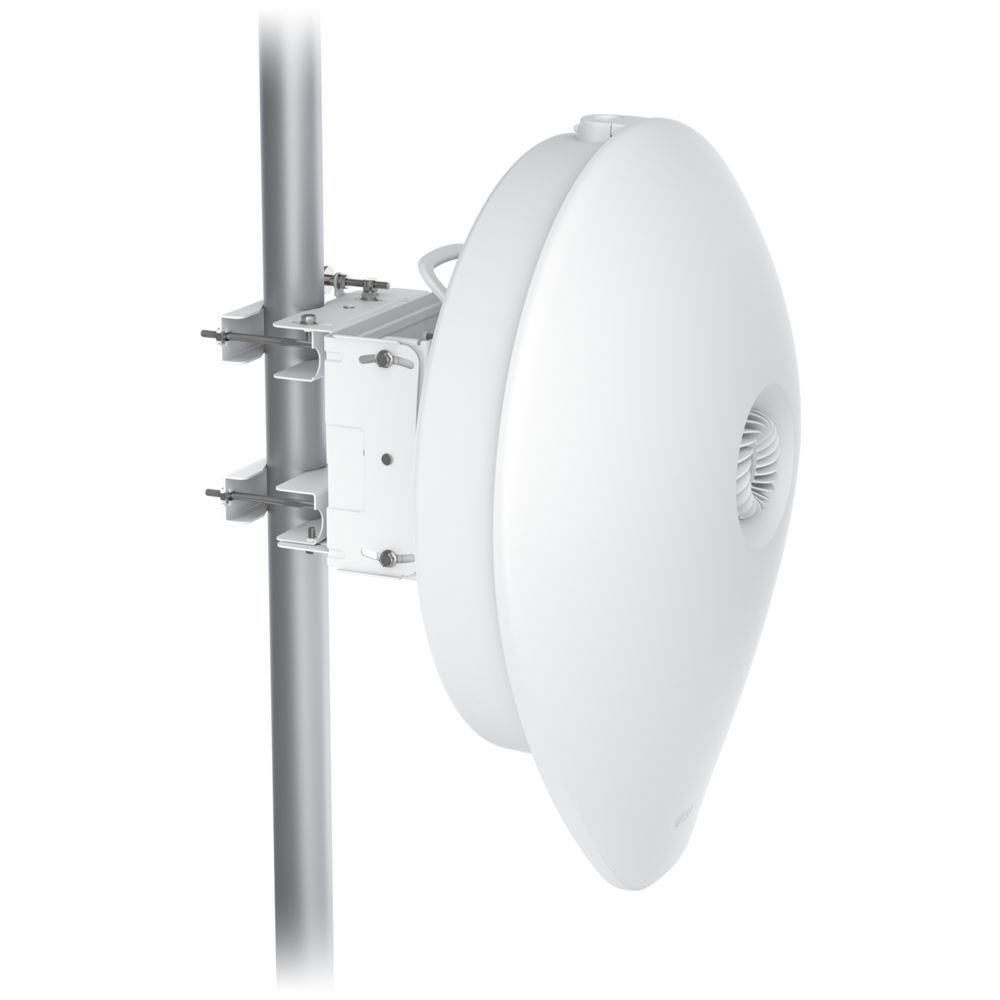

Pole compatibility: Ø40 to 80 mm (Ø1.5 to 8 cm ( 3,1 inch )) Wind load 422 N at 200 km/h (94.86 lbf at 125 mph) Hardware Processor Quad -Core ARM® Cortex® A72 with 1.6 GHz Memory 2 GB DDR4 network interface (1) GbE RJ45 port
(1) 1/10G SFP+ port Max. power consumption 31.2 W Power method Passive PoE 4 pair (1 , 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 pair (4, 5+ 7, 8-), only for 44-54V DC power supply 48V DC, 0.65A Gigabit PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal Button Factory reset Operating temperature -40 to 55°C (-40 to 131°F) Operating humidity 5 to 95 % non-condensing Certifications FCC, IC, CE, Terragraph Software Operating Mode PtP only Services UISP, Ping Watchdog, NTP Client, System Protocol Utilities Antenna Alignment Tool, Detection Utility, Ping, Speed Test Management Application UISP Web: Version 1.4.3 and above
UISP iOS™ and Android™: Version 2.19 and above System Max. throughput 5 GHz: 866.6 Mbit/s
60 GHz: 3.8 Gbit/s/6 Gbit/s (with channel bonding enabled) Max. range 4 km Encryption WPA2-PSK (AES ) RF Working Frequency* 57-66 GHz
* Depends on regulatory region. Channel bandwidth 2160 MHz/4320 MHz (with channel bundling enabled) Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depending on channel bandwidth. Polarization Vertical Linear Beamwidth Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6° Backup RF Operating Frequency*
USA/California
U-NII-1 5150-5250 MHz
U-NII-3 5725-5850 MHz Worldwide 5150-5875 MHz
*Depending on regulatory region. Channel bandwidth 20/40/80 MHz Polarization Dual-linear Beam width Azimuth: 3 dB 5°
Elevation: 3 dB 5° LEDs Power Flashes white: Booting in progress.
White: not connected to the UISP™ console.
Blue: connected to the UISP console Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals 60G Blue: active connection 5G Blue: active connection
6 Gbps max throughput
Weatherproof backup radio with 5 GHz and 800+ Mbps
(1) GbE and (1) 10G SFP+ port
Precision alignment bracket
Integrated GPS and Bluetooth
Terragraph certified
Note . This product should be purchased in pairs to form connections.
Technical specifications Mechanical Dimensions 779 x 664 x 383 mm (30.68 x 26.14 x 38,3 cm ( 15,1 inch )) Weight Without bracket: 8.6 kg (19 lb)
With bracket: 13 kg (28.7 lb) Housing materials UV Stabilized polycarbonate, steel Mounting material Galvanized steel Mounting Precision alignment kit (included)
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 8 cm ( 3,1 inch )) Wind load 422 N at 200 km/h (94.86 lbf at 125 mph) Hardware Processor Quad -Core ARM® Cortex® A72 with 1.6 GHz Memory 2 GB DDR4 network interface (1) GbE RJ45 port
(1) 1/10G SFP+ port Max. power consumption 31.2 W Power method Passive PoE 4 pair (1 , 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 pair (4, 5+ 7, 8-), only for 44-54V DC power supply 48V DC, 0.65A Gigabit PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal Button Factory reset Operating temperature -40 to 55°C (-40 to 131°F) Operating humidity 5 to 95 % non-condensing Certifications FCC, IC, CE, Terragraph Software Operating Mode PtP only Services UISP, Ping Watchdog, NTP Client, System Protocol Utilities Antenna Alignment Tool, Detection Utility, Ping, Speed Test Management Application UISP Web: Version 1.4.3 and above
UISP iOS™ and Android™: Version 2.19 and above System Max. throughput 5 GHz: 866.6 Mbit/s
60 GHz: 3.8 Gbit/s/6 Gbit/s (with channel bonding enabled) Max. range 4 km Encryption WPA2-PSK (AES ) RF Working Frequency* 57-66 GHz
* Depends on regulatory region. Channel bandwidth 2160 MHz/4320 MHz (with channel bundling enabled) Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depending on channel bandwidth. Polarization Vertical Linear Beamwidth Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6° Backup RF Operating Frequency*
USA/California
U-NII-1 5150-5250 MHz
U-NII-3 5725-5850 MHz Worldwide 5150-5875 MHz
*Depending on regulatory region. Channel bandwidth 20/40/80 MHz Polarization Dual-linear Beam width Azimuth: 3 dB 5°
Elevation: 3 dB 5° LEDs Power Flashes white: Booting in progress.
White: not connected to the UISP™ console.
Blue: connected to the UISP console Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals 60G Blue: active connection 5G Blue: active connection
