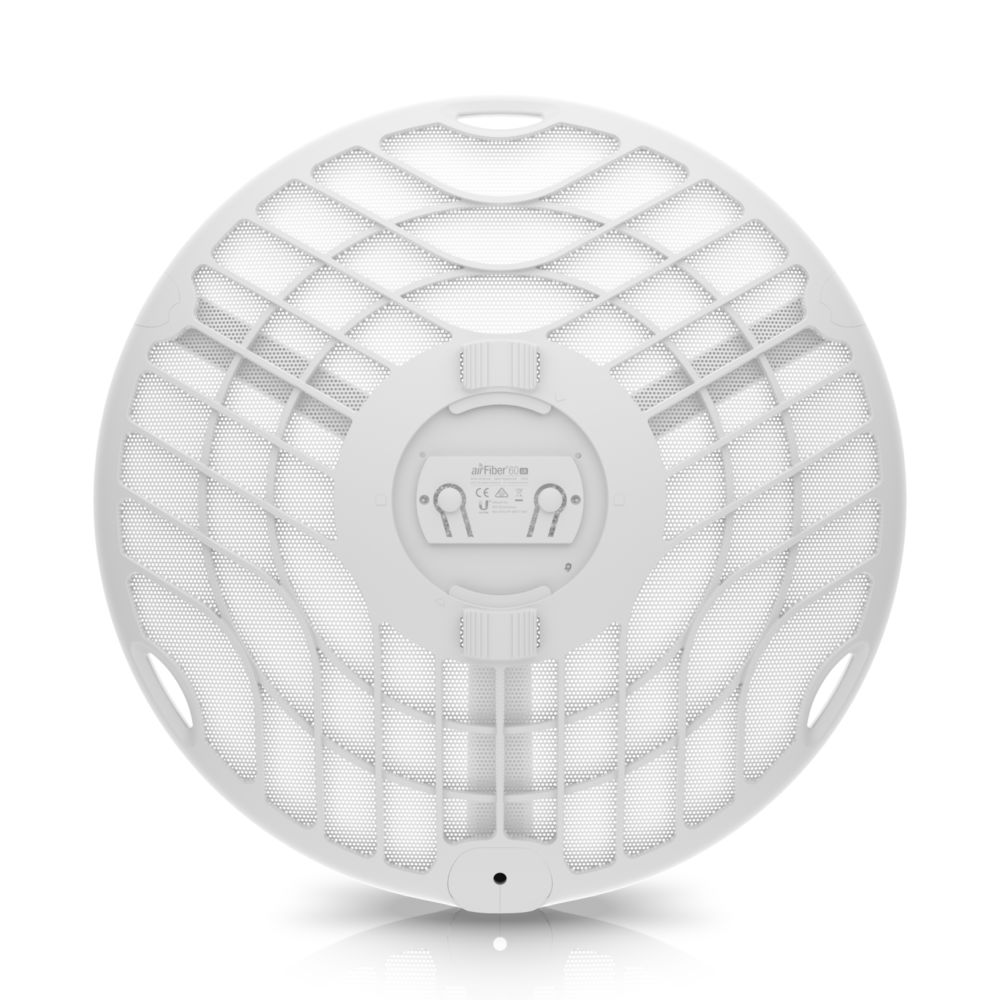

Ubiquiti AF60-LR 60GHz
|
275,78 EUR 285,81 EUR |
|
|
( 328,18 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 551600 |
|---|---|
| Mfg Part No: | AF60-LR |
| Weight: | 1.5 kg |
Product information for Ubiquiti AF60-LR:
Long range 60GHz PtP wireless system with Wave technology. 12+ km connection range
2 Gbps max throughput
(1) GbE RJ45 port
Precision alignment bracket
Integrated GPS and Bluetooth
Note . This product should be purchased in pairs to form connections.
Technical specifications Mechanical Dimensions Ø413 x 360 mm (Ø16.3 x 36,1 cm ( 14,2 inch )) Weight Without bracket: 1.5 kg (3.3 lb)
With bracket: 2.7 kg (6 lb) Housing materials Aluminum, UV-stabilized polycarbonate Mounting material Galvanized steel Mounting Precision alignment kit (included)
Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 7,6 cm ( 3 inch )) Wind load 420 N at 200 km/h (94.4 lbf at 125 mph) Hardware Processor Quad-Core ARM® Cortex® A7 Reminder 256MB DDR3 Network Interface (1) GbE RJ45 Port Max Power Consumption 22W Power Method Passive PoE 4 Pair (1, 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 -Pair (4, 5+ 7, 8-), only for 44-54V DC Power supply 48V DC, 0.65A Gigabit PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal ESD/EMP protection Air/Contact: ± 24 kV Operating Temperature -40 to 60°C (-40 to 140°F) Operating Humidity 5 to 95% non-condensing Certifications FCC, IC, CE Software Operating Mode Only PtP Ubiquiti Specific Features Wave Technology, Discovery Utility Network Bridge Mode Services UISP, Ping Watchdog, NTP Client Tools Antenna Alignment, Discovery Utility, Ping, Route Tracking, Speed Test Software Management Bluetooth management for easy setup via
WEB UI of UISP App Minimum Software Requirements Any modern web browser/iOS™ or Android™ based smartphone system Max throughput 1.95 Gbps Max range 12+ km Encryption WPA2-PSK (AES) RF Working frequency* 57-71 GHz
* Depends on regulatory region. Channel bandwidth 2160, 1080 MHz Polarization Vertical linear Beam width Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6° LEDs Power White flashing: Booting in progress.
White: not connected to the UISP application.
Blue: connected to the UISP application Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals 60G Blue: active connection
2 Gbps max throughput
(1) GbE RJ45 port
Precision alignment bracket
Integrated GPS and Bluetooth
Note . This product should be purchased in pairs to form connections.
Technical specifications Mechanical Dimensions Ø413 x 360 mm (Ø16.3 x 36,1 cm ( 14,2 inch )) Weight Without bracket: 1.5 kg (3.3 lb)
With bracket: 2.7 kg (6 lb) Housing materials Aluminum, UV-stabilized polycarbonate Mounting material Galvanized steel Mounting Precision alignment kit (included)
Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 7,6 cm ( 3 inch )) Wind load 420 N at 200 km/h (94.4 lbf at 125 mph) Hardware Processor Quad-Core ARM® Cortex® A7 Reminder 256MB DDR3 Network Interface (1) GbE RJ45 Port Max Power Consumption 22W Power Method Passive PoE 4 Pair (1, 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 -Pair (4, 5+ 7, 8-), only for 44-54V DC Power supply 48V DC, 0.65A Gigabit PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal ESD/EMP protection Air/Contact: ± 24 kV Operating Temperature -40 to 60°C (-40 to 140°F) Operating Humidity 5 to 95% non-condensing Certifications FCC, IC, CE Software Operating Mode Only PtP Ubiquiti Specific Features Wave Technology, Discovery Utility Network Bridge Mode Services UISP, Ping Watchdog, NTP Client Tools Antenna Alignment, Discovery Utility, Ping, Route Tracking, Speed Test Software Management Bluetooth management for easy setup via
WEB UI of UISP App Minimum Software Requirements Any modern web browser/iOS™ or Android™ based smartphone system Max throughput 1.95 Gbps Max range 12+ km Encryption WPA2-PSK (AES) RF Working frequency* 57-71 GHz
* Depends on regulatory region. Channel bandwidth 2160, 1080 MHz Polarization Vertical linear Beam width Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6° LEDs Power White flashing: Booting in progress.
White: not connected to the UISP application.
Blue: connected to the UISP application Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals 60G Blue: active connection
Questions & answers
What is the delivery time of Ubiquiti AF60-LR 60GHz?
The article Ubiquiti AF60-LR 60GHz is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti AF60-LR to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti AF60-LR 60GHz always at the best possible price. We can give you a discount of 2% on Ubiquiti AF60-LR 60GHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
