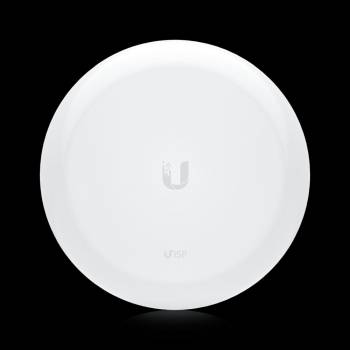

Ubiquiti AF60-HD 60GHz ODU
|
335,26 EUR 347,46 EUR |
|
|
( 398,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1970236 |
|---|---|
| Mfg Part No: | AF60-HD |
| Weight: | 3 kg |
Product information for Ubiquiti AF60-HD:
Multi-Gigabit 60GHz bridge with SFP+ support and a connection range of 2km. 2km connection range
6Gbps max throughput
(1) GbE and (1) 10G SFP+ port

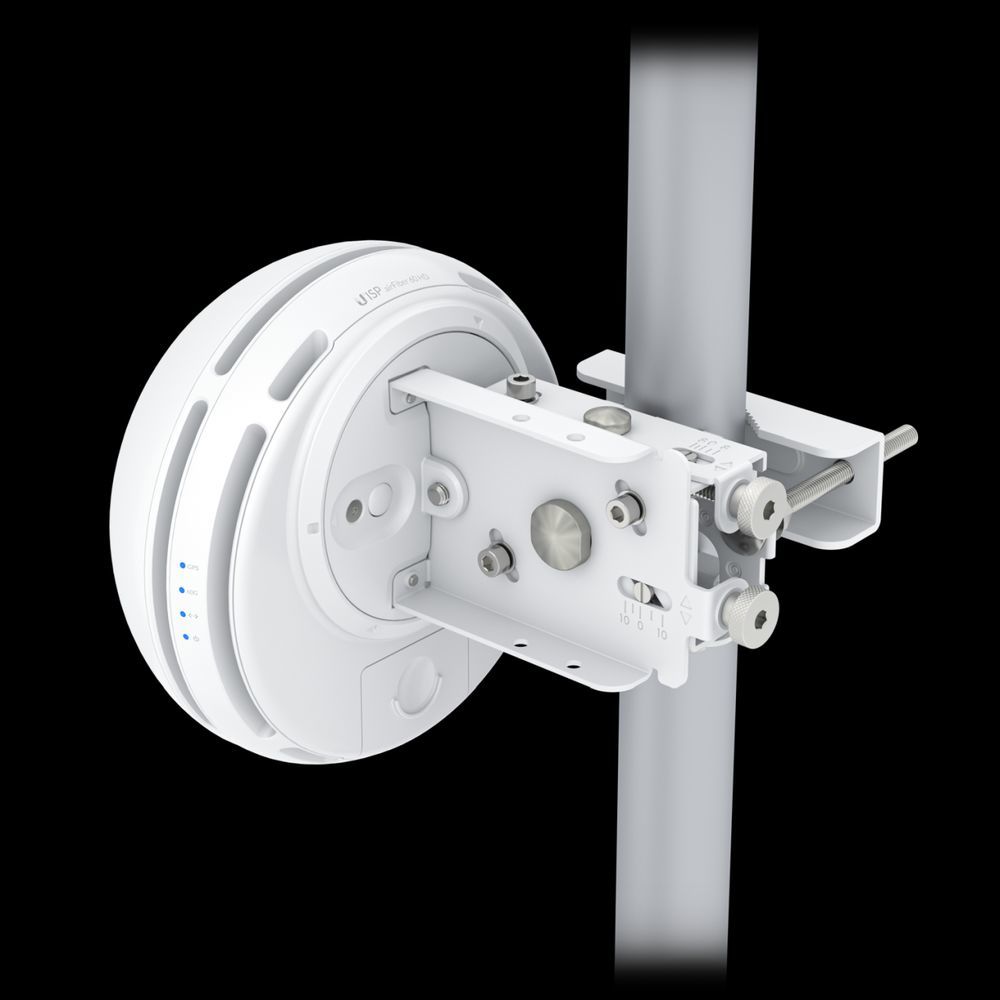

Precision alignment bracket
Integrated GPS
Note . This product should be purchased in pairs to form connections.Technical Specifications Mechanical Dimensions Ø189 x 89 mm (Ø7.4 x 8,9 cm ( 3,5 inch )) Weight Without bracket: 1.8 kg (3.9 lb)
With bracket: 2.95 kg (6.5 lb) Body materials Aluminum alloy, UV stabilized plastic Mounting material Stainless steel (SUS304) Mount 60G precision alignment rod bracket (included) Wind load 64 N @ 200 km/h (14.39 lbf @ 125 mph) Weatherproof IPX6 Hardware Processor Quad -Core ARM® Cortex® A72 with 1.6GHz Memory 2GB DDR4 Network Interface (1) GbE RJ45 Port
(1) 1/10G SFP+ Port Max. Power Consumption 29.31W Power Method Passive PoE 4 Pair (1, 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 pair (4, 5+ 7, 8-), only for 44-54V DC power supply 48V DC, 0.65A Gigabit -PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal Button Factory reset Operating temperature -40 to 55°C (-40 to 131°F) Operating humidity 5 to 95% non-condensing Certifications FCC, IC, CE, Terragraph Software Operating Mode PtP only Services UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery Utilities Beamform Info, Discovery Utility, Ping, Trace Route, Speed Test Network Bridge mode Wireless settings GPS synchronization Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone system Max throughput
60 GHz
3.8 Gbps s/6 Gbit/s (with channel bonding enabled) Max. range 2 km Encryption WPA2-PSK (AES) Uplink/Downlink ratio 50/50 RF Working frequency* 57-66 GHz
* Depends on regulatory region. Channel bandwidth 2160 MHz/4320 MHz (with channel bundling enabled) Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depending on channel bandwidth. Polarization Vertical linear Beam width Azimuth: 3 dB 3°

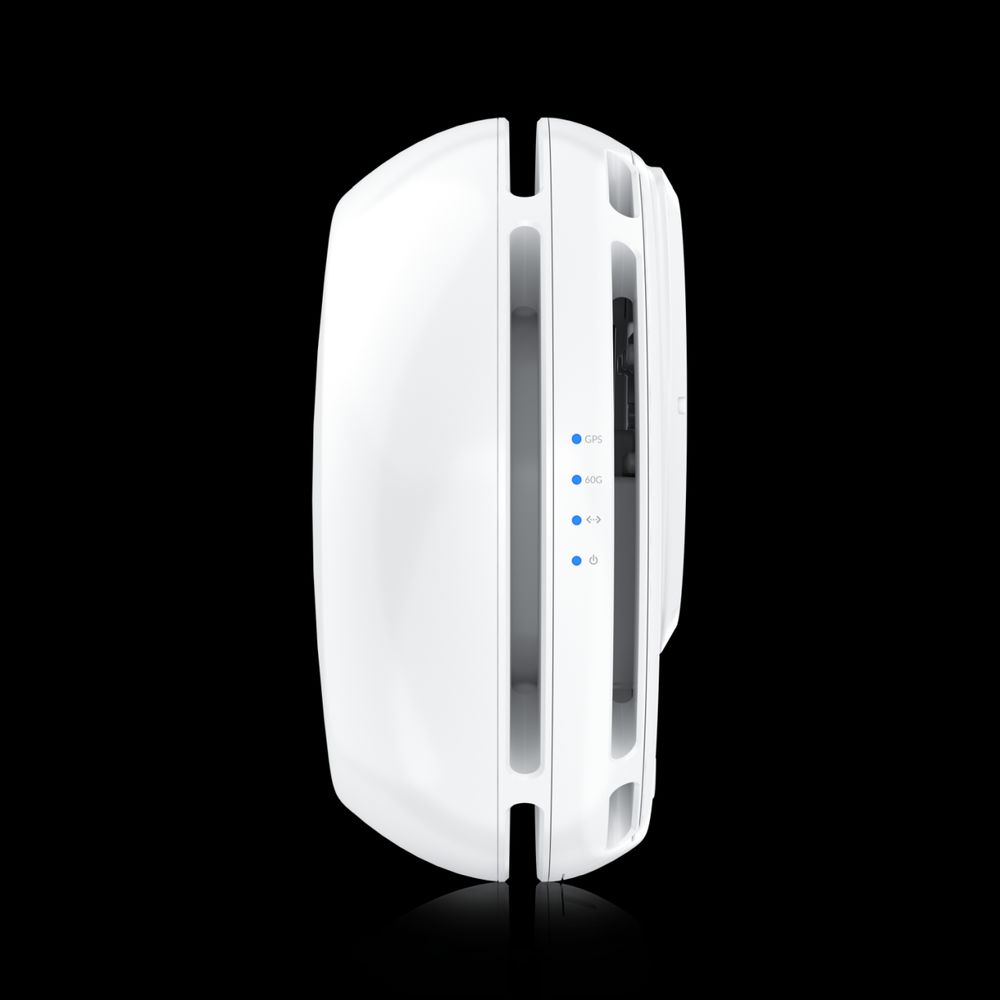

Elevation: 3 dB 3° Electrical downward tilt 0° LEDs Power Flashes white: Booting in progress.
White: not connected to the UISP™ console.
Blue: connected to the UISP console Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS 60G satellite signals Blue: active connection
6Gbps max throughput
(1) GbE and (1) 10G SFP+ port
Precision alignment bracket
Integrated GPS
Note . This product should be purchased in pairs to form connections.Technical Specifications Mechanical Dimensions Ø189 x 89 mm (Ø7.4 x 8,9 cm ( 3,5 inch )) Weight Without bracket: 1.8 kg (3.9 lb)
With bracket: 2.95 kg (6.5 lb) Body materials Aluminum alloy, UV stabilized plastic Mounting material Stainless steel (SUS304) Mount 60G precision alignment rod bracket (included) Wind load 64 N @ 200 km/h (14.39 lbf @ 125 mph) Weatherproof IPX6 Hardware Processor Quad -Core ARM® Cortex® A72 with 1.6GHz Memory 2GB DDR4 Network Interface (1) GbE RJ45 Port
(1) 1/10G SFP+ Port Max. Power Consumption 29.31W Power Method Passive PoE 4 Pair (1, 2+ 3, 6-) (4, 5+ 7, 8-)
Passive PoE 2 pair (4, 5+ 7, 8-), only for 44-54V DC power supply 48V DC, 0.65A Gigabit -PoE adapter (included) Supported voltage range 44-54V DC
22-27V DC GPS Yes RF connections Internal Button Factory reset Operating temperature -40 to 55°C (-40 to 131°F) Operating humidity 5 to 95% non-condensing Certifications FCC, IC, CE, Terragraph Software Operating Mode PtP only Services UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery Utilities Beamform Info, Discovery Utility, Ping, Trace Route, Speed Test Network Bridge mode Wireless settings GPS synchronization Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone system Max throughput
60 GHz
3.8 Gbps s/6 Gbit/s (with channel bonding enabled) Max. range 2 km Encryption WPA2-PSK (AES) Uplink/Downlink ratio 50/50 RF Working frequency* 57-66 GHz
* Depends on regulatory region. Channel bandwidth 2160 MHz/4320 MHz (with channel bundling enabled) Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depending on channel bandwidth. Polarization Vertical linear Beam width Azimuth: 3 dB 3°
Elevation: 3 dB 3° Electrical downward tilt 0° LEDs Power Flashes white: Booting in progress.
White: not connected to the UISP™ console.
Blue: connected to the UISP console Ethernet Blue flashing: Ethernet activity GPS Blue: receiving at least (4) GPS 60G satellite signals Blue: active connection
Questions & answers
What is the delivery time of Ubiquiti AF60-HD 60GHz ODU?
The article Ubiquiti AF60-HD 60GHz ODU is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti AF60-HD to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti AF60-HD 60GHz ODU always at the best possible price. We can give you a discount of 2% on Ubiquiti AF60-HD 60GHz ODU if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
