Ubiquiti AirFiber, 11GHz AF-11-EU
|
871,27 EUR 902,96 EUR |
|
|
( 1.036,81 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1782144 |
|---|---|
| Mfg Part No: | AF-11 |
| Weight: | 3.5 kg |

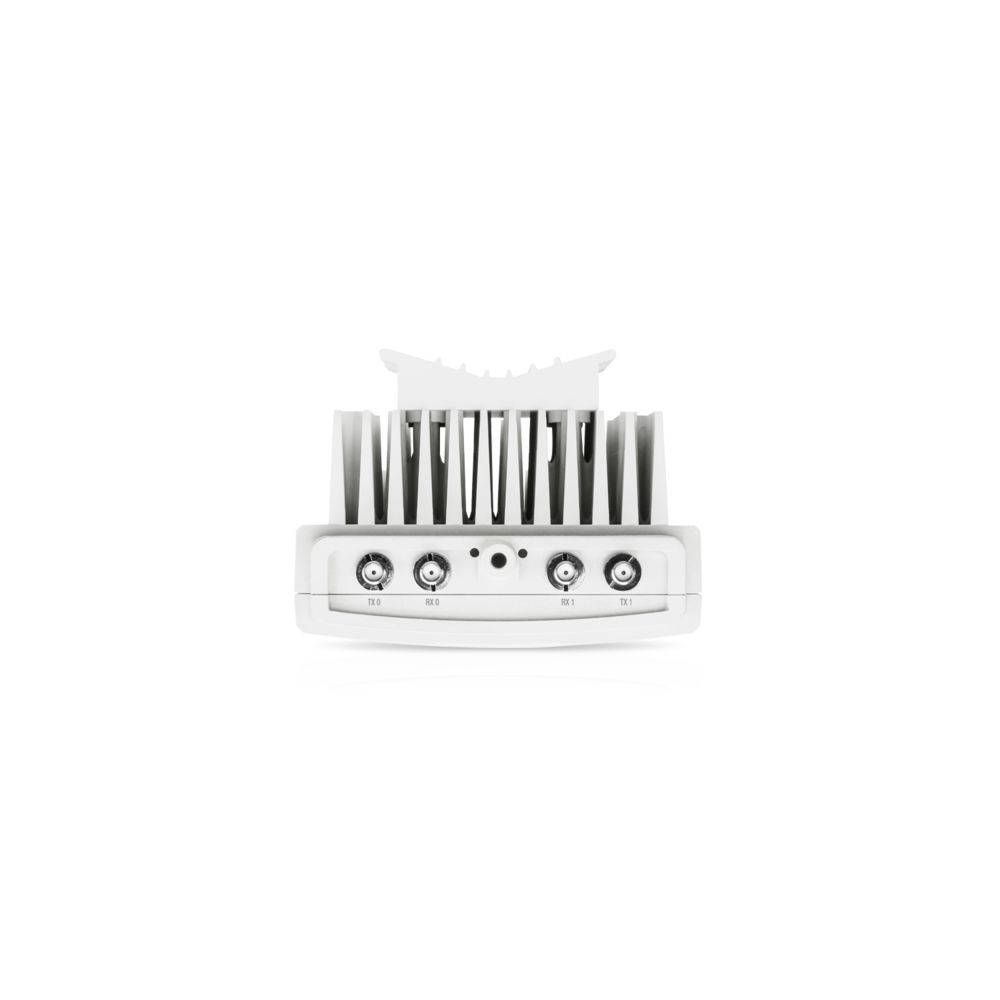

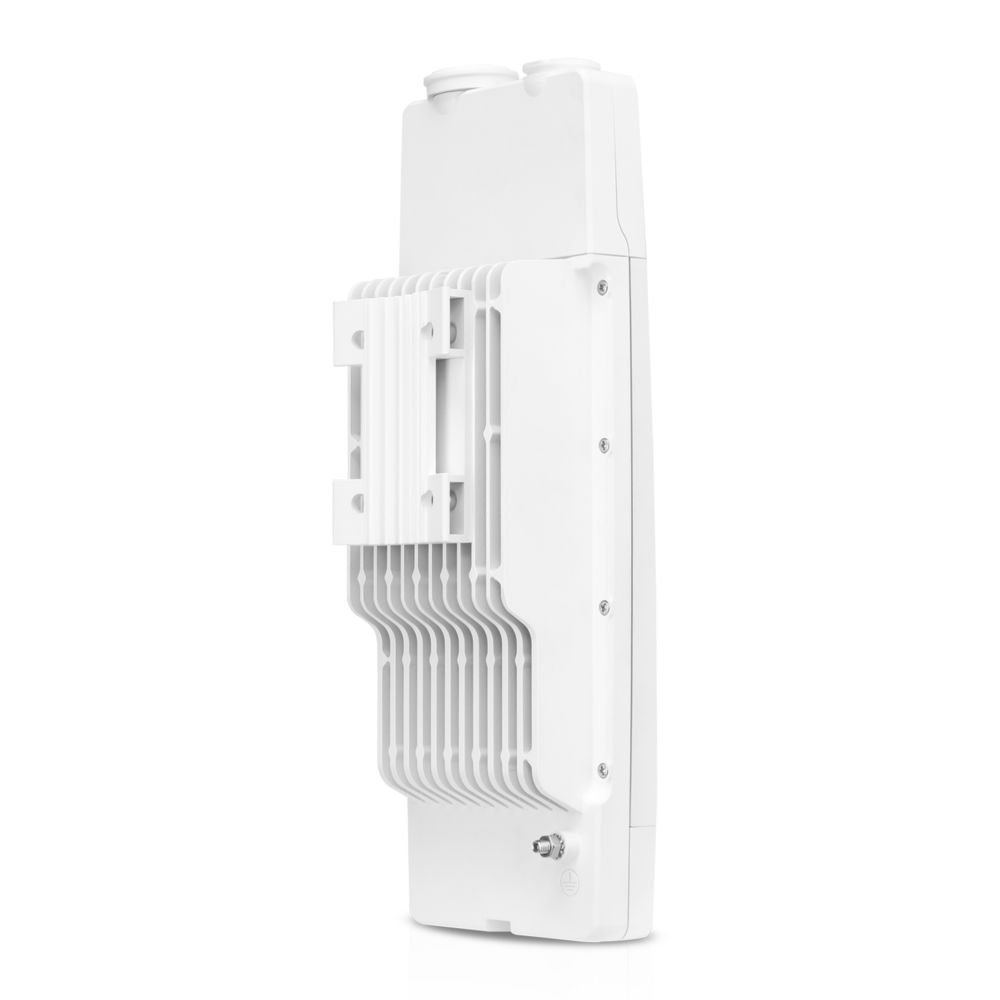

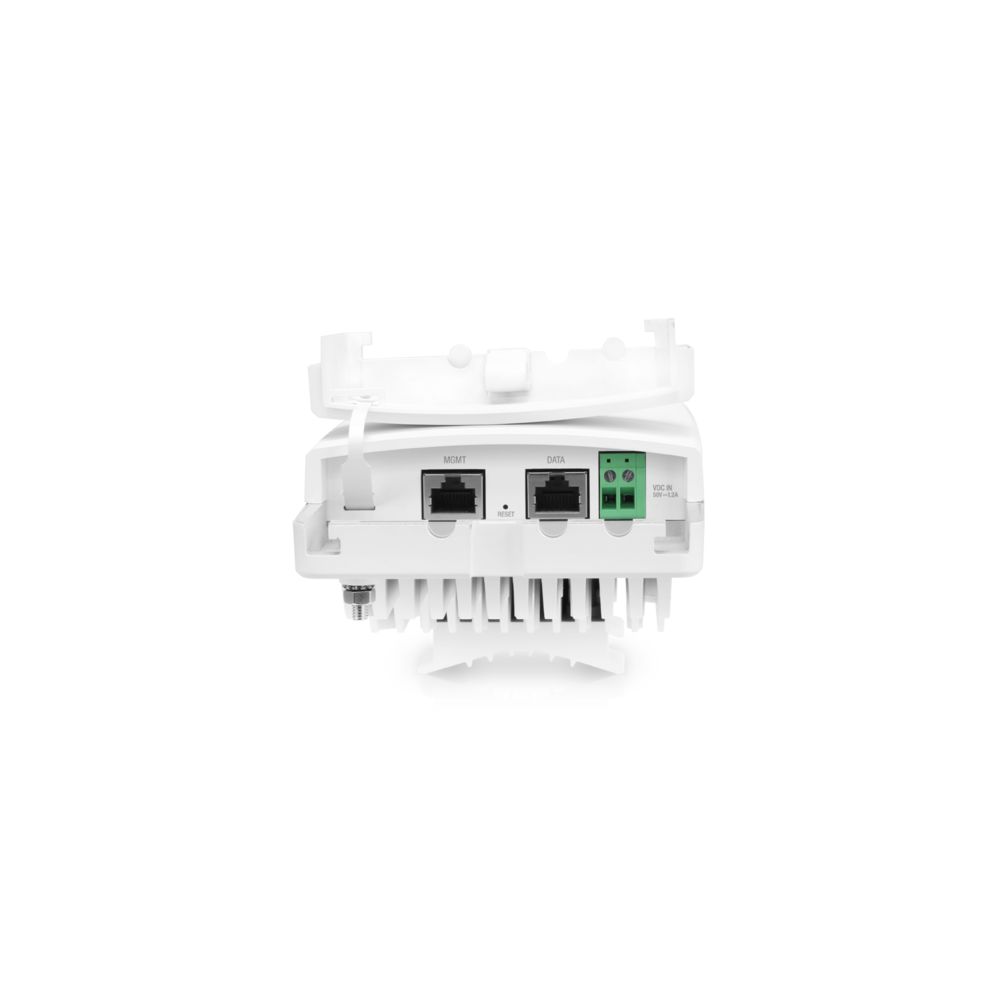

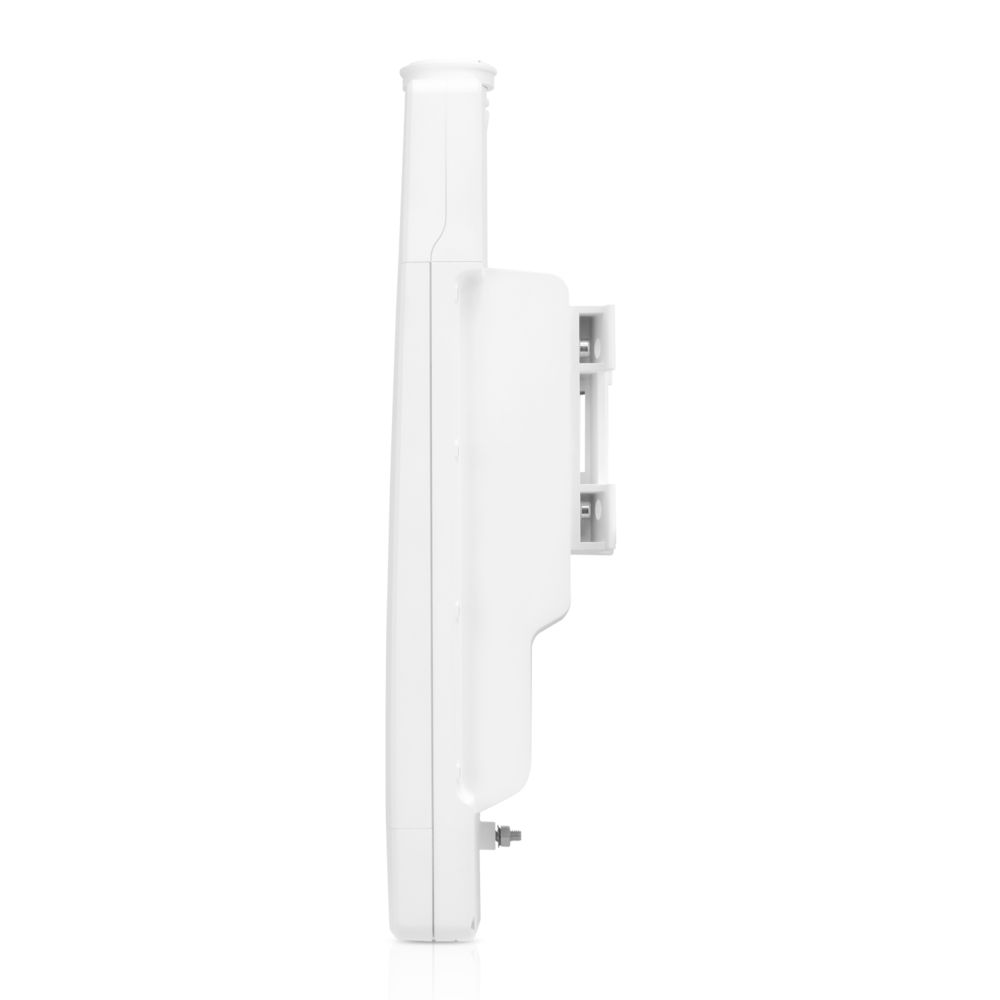

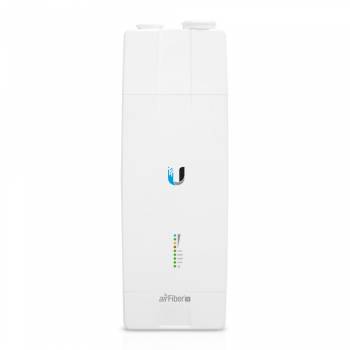

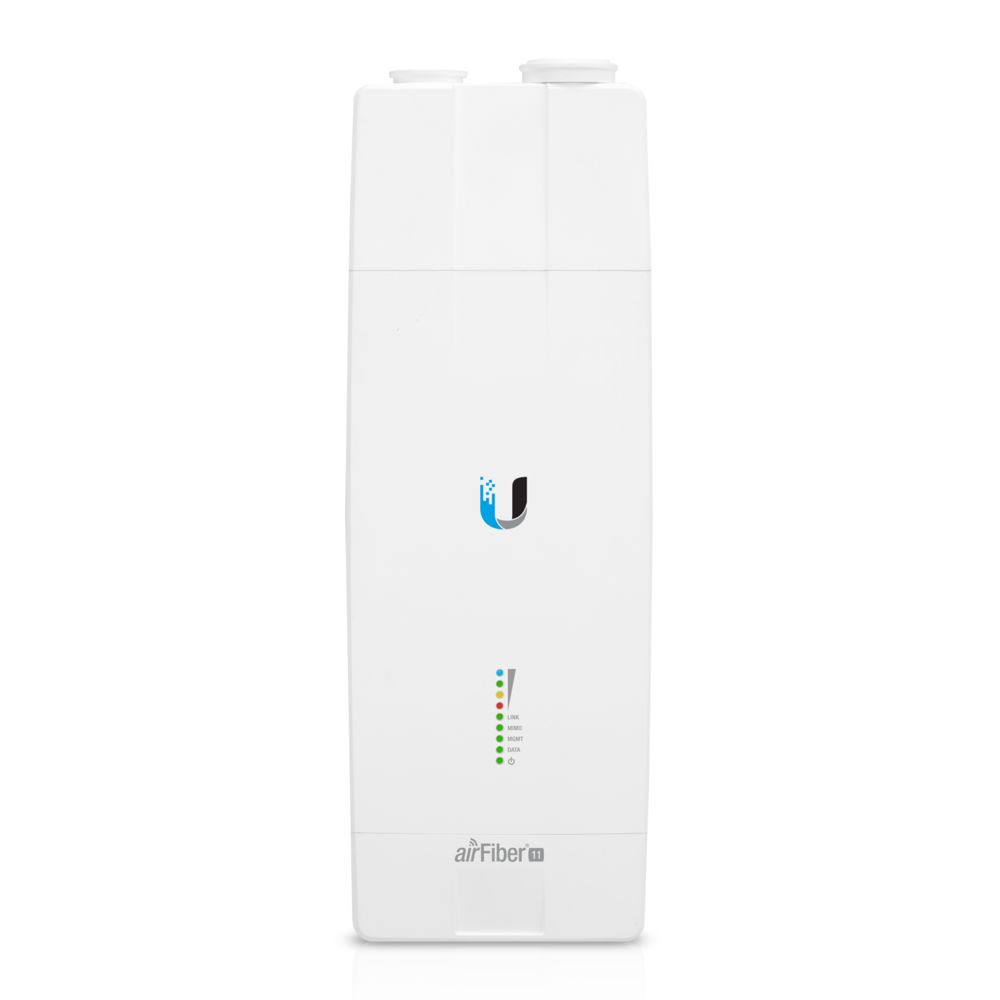

Product information for Ubiquiti AF-11:
Compact point-to-point radio system operating at a frequency of 11 GHz. 11 GHz, over 300 km connection range
1.2+ Gbit/s throughput
Different RX and TX frequencies
1+ Mpps processing Technical specifications Mechanical Dimensions 327 x 112 x 86 mm (12.87 x 4.41 x 8,6 cm ( 3,4 inch ) ) Weight 2.26 kg (5 pounds) Mounting Compatible with AF-11G35 mount Hardware Network interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port Power method Passive PoE (Pins 1, 2, 4 , 5 (+) and pins 7, 8, 3, 6 (-))
DC power supply block Power supply 50V DC, 1.2A PoE Gigabit adapter (included) Supported voltage range 38-56V DC RF connectors (4) SMA weatherproof, two per chain: TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1)
(2) N-type waterproof, one per duplexer Operating temperature -40 to 55 °C (-40 up to 131°F) Certifications CE, FCC, IC Software Modes SISO/MIMO System Max. Throughput 1.2+ Gbit/s Max. Range 300+ km Encryption 128-bit AES RF Working Frequency* 10.7-11.7 GHz
*Depending on regional regulations. Max. conducted transmission power* 30 dBm
*Depending on regional regulations. Frequency accuracy ± 1 ppm Channel bandwidth* 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable
programmable uplink and downlink duty cycles
* For region-specific details, see the airFiber Compliance chapter AF-11FX User Guide
1.2+ Gbit/s throughput
Different RX and TX frequencies
1+ Mpps processing Technical specifications Mechanical Dimensions 327 x 112 x 86 mm (12.87 x 4.41 x 8,6 cm ( 3,4 inch ) ) Weight 2.26 kg (5 pounds) Mounting Compatible with AF-11G35 mount Hardware Network interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port Power method Passive PoE (Pins 1, 2, 4 , 5 (+) and pins 7, 8, 3, 6 (-))
DC power supply block Power supply 50V DC, 1.2A PoE Gigabit adapter (included) Supported voltage range 38-56V DC RF connectors (4) SMA weatherproof, two per chain: TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1)
(2) N-type waterproof, one per duplexer Operating temperature -40 to 55 °C (-40 up to 131°F) Certifications CE, FCC, IC Software Modes SISO/MIMO System Max. Throughput 1.2+ Gbit/s Max. Range 300+ km Encryption 128-bit AES RF Working Frequency* 10.7-11.7 GHz
*Depending on regional regulations. Max. conducted transmission power* 30 dBm
*Depending on regional regulations. Frequency accuracy ± 1 ppm Channel bandwidth* 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable
programmable uplink and downlink duty cycles
* For region-specific details, see the airFiber Compliance chapter AF-11FX User Guide
Questions & answers
What is the delivery time of Ubiquiti AirFiber, 11GHz AF-11-EU?
The article Ubiquiti AirFiber, 11GHz AF-11-EU is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti AF-11 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti AirFiber, 11GHz AF-11-EU always at the best possible price. We can give you a discount of 2% on Ubiquiti AirFiber, 11GHz AF-11-EU if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
