UBIQUITI NETWORKS UACC-Cable-DoorLockRelay-2P Ubiquiti UniFi Access Door Lock Relay Cable /
|
135,11 EUR |
|
|
( 160,78 EUR incl. VAT ) ≈ £114.84 | ≈ $151.73 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 2027594 |
|---|---|
| Mfg Part No: | UACC-Cable-DoorLockRelay-2P |
| UPC/EAN: | 810084691625 |
| Weight: | 5.6 kg |
Product information for UBIQUITI NETWORKS UACC-Cable-DoorLockRelay-2P:

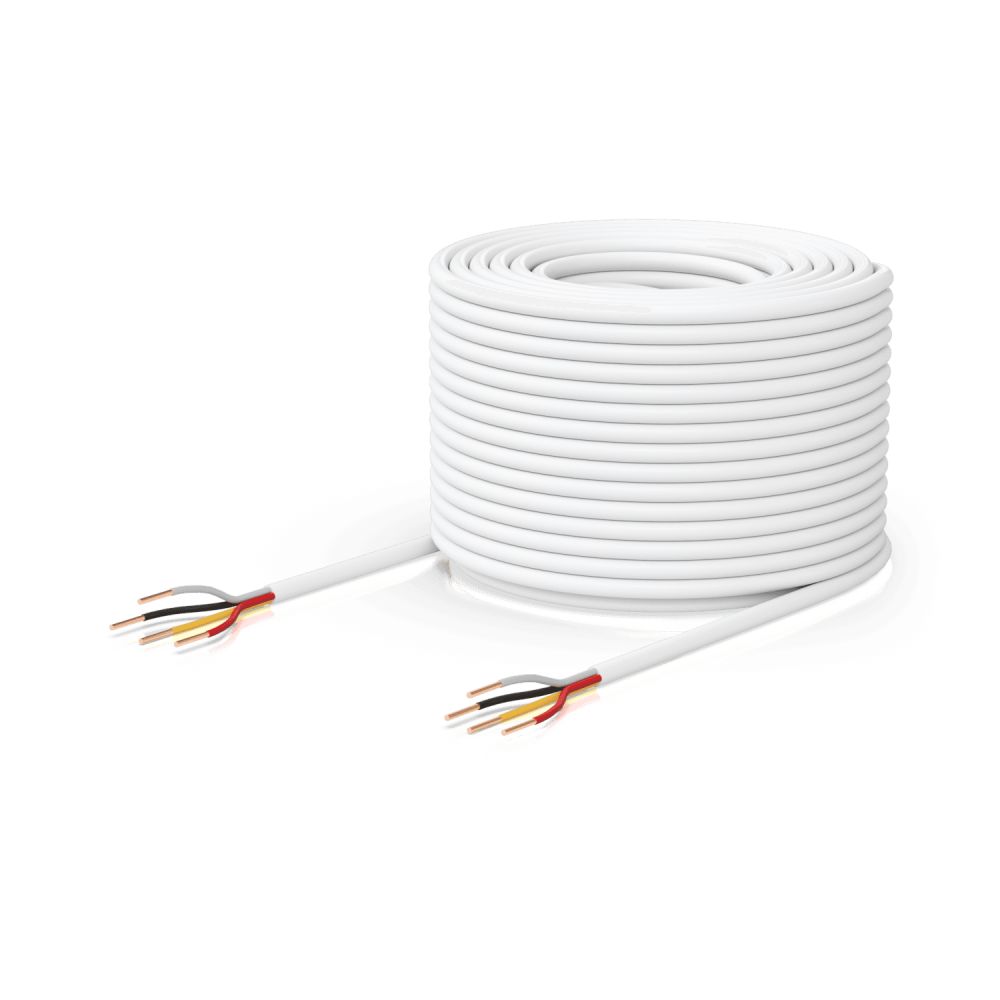

A 500-foot-long reel of one or two pairs of low voltage cables. 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
– (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
– (2) 18 AWG conductors for an electric/magnetic lock
– (2) 22 AWG conductors for a door position sensor
Cable Length 500 ft (152.4 m)
Plenum Rated
Technical Specifications Specifications Weight UACC-Cable-DoorLockRelay-2P: 12.3 lb (5.6 kg)
UACC-Cable-DoorLockRelay-1P: 10.1 lb (4.58 kg) Cable Length 500 ft (152.4 m) Jacket OD UACC-Cable-DoorLockRelay-2P: 1.77 in (4.5 mm) (0,5 cm ( 0,2 inch ))
UACC-Cable-DoorLockRelay-1P: 4.2 mm (0,4 cm ( 0,2 inch )) Jacket Material Thermoplastic Elastomer (TPE) Jacket Color White Conductor Wire Gauge UACC-Cable-DoorLockRelay-2P: 18/22 AWG
UACC-Cable-DoorLockRelay-1P: 18 AWG Insulation Material Semi-rigid Polyvinyl Chloride (SR-PVC) Insulation Color UACC-Cable-DoorLockRelay-2P: Black/Red (18AWG), Yellow/White (22AWG)
UACC-Cable-DoorLockRelay-1P: Black/Red (18AWG) Number of Conductors UACC-Cable-DoorLockRelay-2P: 4
UACC-Cable-DoorLockRelay-1P: 2 Conductor Material Solid Bare Copper Max. Draw Voltage UACC-Cable-DoorLockRelay-2P: 24.2 kgf
UACC-Cable-DoorLockRelay-1P: 16.4 kgf Minimum Bend Radius UACC-Cable-DoorLockRelay-2P: 56 mm (5,6 cm ( 2,2 inch ))
UACC-Cable-DoorLockRelay-1P: 33 mm (3,3 cm ( 1,3 inch )) Conductor DCR UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) Voltage 36V DC Flame Rating VW-1 Current Rating 18AWG: 2A for 500 ft. length.
22AWG: 1A for 500 feet length Storage temperature -45 to 65 °C (-40 to 149 °F) Operating temperature -45 to 65 °C (-40 to 149 °F)
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
– (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
– (2) 18 AWG conductors for an electric/magnetic lock
– (2) 22 AWG conductors for a door position sensor
Cable Length 500 ft (152.4 m)
Plenum Rated
Technical Specifications Specifications Weight UACC-Cable-DoorLockRelay-2P: 12.3 lb (5.6 kg)
UACC-Cable-DoorLockRelay-1P: 10.1 lb (4.58 kg) Cable Length 500 ft (152.4 m) Jacket OD UACC-Cable-DoorLockRelay-2P: 1.77 in (4.5 mm) (0,5 cm ( 0,2 inch ))
UACC-Cable-DoorLockRelay-1P: 4.2 mm (0,4 cm ( 0,2 inch )) Jacket Material Thermoplastic Elastomer (TPE) Jacket Color White Conductor Wire Gauge UACC-Cable-DoorLockRelay-2P: 18/22 AWG
UACC-Cable-DoorLockRelay-1P: 18 AWG Insulation Material Semi-rigid Polyvinyl Chloride (SR-PVC) Insulation Color UACC-Cable-DoorLockRelay-2P: Black/Red (18AWG), Yellow/White (22AWG)
UACC-Cable-DoorLockRelay-1P: Black/Red (18AWG) Number of Conductors UACC-Cable-DoorLockRelay-2P: 4
UACC-Cable-DoorLockRelay-1P: 2 Conductor Material Solid Bare Copper Max. Draw Voltage UACC-Cable-DoorLockRelay-2P: 24.2 kgf
UACC-Cable-DoorLockRelay-1P: 16.4 kgf Minimum Bend Radius UACC-Cable-DoorLockRelay-2P: 56 mm (5,6 cm ( 2,2 inch ))
UACC-Cable-DoorLockRelay-1P: 33 mm (3,3 cm ( 1,3 inch )) Conductor DCR UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) Voltage 36V DC Flame Rating VW-1 Current Rating 18AWG: 2A for 500 ft. length.
22AWG: 1A for 500 feet length Storage temperature -45 to 65 °C (-40 to 149 °F) Operating temperature -45 to 65 °C (-40 to 149 °F)
