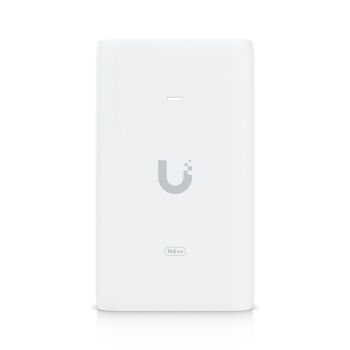

UBIQUITI NETWORKS U-PoE Ubiquiti PoE Adapter/Injector ++ 48VDC 60W Gigabit
|
23,85 EUR |
|
|
( 28,38 EUR incl. VAT ) ≈ £20.27 | ≈ $26.78 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 2027586 |
|---|---|
| Mfg Part No: | U-PoE |
| UPC/EAN: | 810084691762 |
| Weight: | 0.21 kg |
Product information for UBIQUITI NETWORKS U-PoE++:
An adapter that can power UniFi PoE++ devices with wireless mesh applications or offload PoE switch power dependencies. Delivers up to 60W PoE++
Even more power for UA Hub, G4 PTZ and other PoE++ devices
Surge, spike and overcurrent protection
Includes RJ45 data input, AC cable with ground and PoE++ output
LED indicator for status monitoringTechnical Specifications Specifications Model U-PoE++ Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 3,3 cm ( 1,3 inch )) Weight 210 g (7.4 oz) Output voltage 48 VDC at 1.25 A LAN activity indicator NO Gigabit LAN port Yes Remote reset capability NO Reset button NO Rated voltage 100-240 VAC at 50/60 Hz Input current 1.3 A at 120 VAC
0.75 A at 230 VAC Inrush current efficiency 85+% Output ripple 1% max Switching frequency 65 kHz Line regulation = 1% Load Regulation = 3% 2-Pair Power Supply NO 4-Pair Power Supply Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC Connector IEC-320 C6 Data Input / PoE Shielded RJ45 jack Surge Protection Differential and Common Mode Pinch Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8/20 µs) Power Peak Pulse Current 36A (10/1000 µs) Data Shunt Capacitance Response Time Power Method Universal AC input, 100–240 VAC, 50/60 Hz, (48V at 1.25A) Power Supply AC/DC Supported Voltage Range 100–240 VAC Max. PoE+ Wattage per Port from PSE 60W Operating Temperature 0 to 40 °C (32 to 104 °F) Storage Temperature -30 to 70 °C (-22 to 158 °F) Operating Humidity 10 to 95% non-condensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
Even more power for UA Hub, G4 PTZ and other PoE++ devices
Surge, spike and overcurrent protection
Includes RJ45 data input, AC cable with ground and PoE++ output
LED indicator for status monitoringTechnical Specifications Specifications Model U-PoE++ Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 3,3 cm ( 1,3 inch )) Weight 210 g (7.4 oz) Output voltage 48 VDC at 1.25 A LAN activity indicator NO Gigabit LAN port Yes Remote reset capability NO Reset button NO Rated voltage 100-240 VAC at 50/60 Hz Input current 1.3 A at 120 VAC
0.75 A at 230 VAC Inrush current efficiency 85+% Output ripple 1% max Switching frequency 65 kHz Line regulation = 1% Load Regulation = 3% 2-Pair Power Supply NO 4-Pair Power Supply Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC Connector IEC-320 C6 Data Input / PoE Shielded RJ45 jack Surge Protection Differential and Common Mode Pinch Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8/20 µs) Power Peak Pulse Current 36A (10/1000 µs) Data Shunt Capacitance Response Time Power Method Universal AC input, 100–240 VAC, 50/60 Hz, (48V at 1.25A) Power Supply AC/DC Supported Voltage Range 100–240 VAC Max. PoE+ Wattage per Port from PSE 60W Operating Temperature 0 to 40 °C (32 to 104 °F) Storage Temperature -30 to 70 °C (-22 to 158 °F) Operating Humidity 10 to 95% non-condensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
