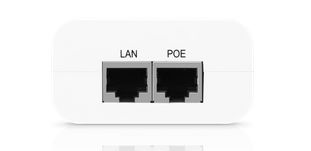

UBIQUITI NETWORKS POE-24-12W-WH
Ubiquiti POE Injector, 24VDC, 12W White
|
-14% 6,21 EUR 7,22 EUR |
|
|
( 7,39 EUR incl. VAT ) ≈ £5.31 | ≈ $7.21 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 19135 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 1165615 |
|---|---|
| Mfg Part No: | POE-24-12W-WH |
| UPC/EAN: | 817882022002 |
| Weight: | 0.25 kg |
Product information for UBIQUITI NETWORKS POE-24-12W-WH:
Ubiquiti 24V DC PoE adapters offer a variety of features to protect your PoE devices. Overvoltage and pinch protection
Maximum surge discharge
peak pulse current
AC cable with groundingTechnical specifications POE-24-7W-G-WH (low power) Dimensions 72 x 45 x 33 mm (2.84 x 1.75 x 3,4 cm ( 1,3 inch )) Weight 72.1 g (2.54 Ounces) Output voltage 24 VDC at 0.3 A LAN activity indicator NO Gigabit LAN port Yes Remote reset function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.3 A at 120 VAC, 0 .2 A at 240 VAC Inrush Current Efficiency 80+% Output Ripple 1% Max. Switching Frequency 65 kHz Line Regulation = 3% Charge Regulation = 5% 2-Pair Power Supply Pins 4, 5 (+) and Pins 7, 8 (-) 4-Pair -Power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158 °F) Operating humidity 35 to 95% non-condensing AC connection IEC-320 C6 Data input / PoE Shielded RJ45 -Socket Surge Protection Differential and Common Mode Clamp Protection 11V Data, 60V Current Max Overvoltage Discharge 1500A (8/20µs) Power Peak Pulse Current 36A (10/1000µs) Data Shunt Capacity Response Time Certifications CE, FCC, IC, UL POE-24 -12W-G (medium power) Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 2,9 cm ( 1,1 inch )) Weight 99.4 g (3.51 ounces) Output voltage 24 VDC at 0.5 A LAN- Activity indicator NO Gigabit LAN port Yes Remote reset function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.3 A at 120 V AC, 0.2 A at 240 V AC Inrush current efficiency 75+% output ripple 1% max. Switching frequency 50 kHz Line regulation = 3% Charge regulation = 5% 2-pair power supply Pins 4, 5 (+) and pins 7, 8 (-) 4-pair power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158 °F) Operating humidity 35 to 95% non-condensing AC connection IEC-320 C6 data input / PoE Shielded RJ45 socket Surge protection Differential and common mode Clamp protection 11 V data, 60 V Current Max Surge Discharge 1500A (8/20µs) Power Peak Pulse Current 36A (10/1000µs) Data Shunt Capacity Response Time Certifications CE, FCC, IC, UL POE-24-24W-G (Hi-Power) Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 3,3 cm ( 1,3 inch )) Weight 158.5 g (5.59 ounces) Output voltage 24 VDC at 1.0 A LAN activity indicator NO Gigabit LAN port Yes Remote reset -Function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.6 A at 120 V AC, 0.4 A at 240 V AC Inrush current efficiency 80+% Output ripple 1% Max. switching frequency 65 kHz Line regulation = 3% Charge regulation = 5% 2-pair power supply Pins 4, 5 (+) and pins 7, 8 (-) 4-pair power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158°F) Operating Humidity 35 to 95% non-condensing AC connector IEC-320 C6 Data input / PoE Shielded RJ45 jack Surge protection Differential and common mode Pinch protection 11 V data, 60 V current Max. over-voltage discharge 1500 A (8/20 µs) Power Peak pulse current 36A (10/1000 µs) Data Shunt capacity Response time Certifications CE, FCC, IC, UL
Maximum surge discharge
peak pulse current
AC cable with groundingTechnical specifications POE-24-7W-G-WH (low power) Dimensions 72 x 45 x 33 mm (2.84 x 1.75 x 3,4 cm ( 1,3 inch )) Weight 72.1 g (2.54 Ounces) Output voltage 24 VDC at 0.3 A LAN activity indicator NO Gigabit LAN port Yes Remote reset function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.3 A at 120 VAC, 0 .2 A at 240 VAC Inrush Current Efficiency 80+% Output Ripple 1% Max. Switching Frequency 65 kHz Line Regulation = 3% Charge Regulation = 5% 2-Pair Power Supply Pins 4, 5 (+) and Pins 7, 8 (-) 4-Pair -Power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158 °F) Operating humidity 35 to 95% non-condensing AC connection IEC-320 C6 Data input / PoE Shielded RJ45 -Socket Surge Protection Differential and Common Mode Clamp Protection 11V Data, 60V Current Max Overvoltage Discharge 1500A (8/20µs) Power Peak Pulse Current 36A (10/1000µs) Data Shunt Capacity Response Time Certifications CE, FCC, IC, UL POE-24 -12W-G (medium power) Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 2,9 cm ( 1,1 inch )) Weight 99.4 g (3.51 ounces) Output voltage 24 VDC at 0.5 A LAN- Activity indicator NO Gigabit LAN port Yes Remote reset function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.3 A at 120 V AC, 0.2 A at 240 V AC Inrush current efficiency 75+% output ripple 1% max. Switching frequency 50 kHz Line regulation = 3% Charge regulation = 5% 2-pair power supply Pins 4, 5 (+) and pins 7, 8 (-) 4-pair power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158 °F) Operating humidity 35 to 95% non-condensing AC connection IEC-320 C6 data input / PoE Shielded RJ45 socket Surge protection Differential and common mode Clamp protection 11 V data, 60 V Current Max Surge Discharge 1500A (8/20µs) Power Peak Pulse Current 36A (10/1000µs) Data Shunt Capacity Response Time Certifications CE, FCC, IC, UL POE-24-24W-G (Hi-Power) Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 3,3 cm ( 1,3 inch )) Weight 158.5 g (5.59 ounces) Output voltage 24 VDC at 1.0 A LAN activity indicator NO Gigabit LAN port Yes Remote reset -Function Yes Reset button Yes Rated voltage 100-240 VAC at 50/60 Hz Input current 0.6 A at 120 V AC, 0.4 A at 240 V AC Inrush current efficiency 80+% Output ripple 1% Max. switching frequency 65 kHz Line regulation = 3% Charge regulation = 5% 2-pair power supply Pins 4, 5 (+) and pins 7, 8 (-) 4-pair power supply - Operating temperature 0 to 40 °C (32 to 104 °F) Storage temperature -30 to 70 °C (-22 to 158°F) Operating Humidity 35 to 95% non-condensing AC connector IEC-320 C6 Data input / PoE Shielded RJ45 jack Surge protection Differential and common mode Pinch protection 11 V data, 60 V current Max. over-voltage discharge 1500 A (8/20 µs) Power Peak pulse current 36A (10/1000 µs) Data Shunt capacity Response time Certifications CE, FCC, IC, UL
Questions & answers
What is the delivery time of UBIQUITI NETWORKS POE-24-12W-WH Ubiquiti POE Injector, 24VDC, 12W White?
The article UBIQUITI NETWORKS POE-24-12W-WH Ubiquiti POE Injector, 24VDC, 12W White is currently in stock
According to our experience the article is ready for dispatch within 19135 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of UBIQUITI NETWORKS POE-24-12W-WH to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you UBIQUITI NETWORKS POE-24-12W-WH Ubiquiti POE Injector, 24VDC, 12W White always at the best possible price. We can give you a discount of 2% on UBIQUITI NETWORKS POE-24-12W-WH Ubiquiti POE Injector, 24VDC, 12W White if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of UBIQUITI NETWORKS POE-24-12W-WH Ubiquiti POE Injector, 24VDC, 12W White via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
