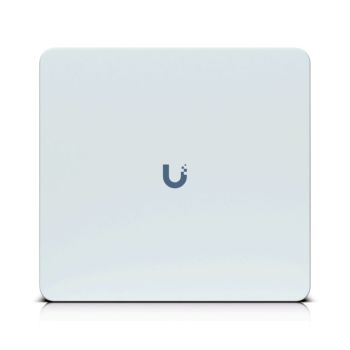

UBIQUITI NETWORKS EAH-8 Ubiquiti UniFi Enterprise Access Hub / PoE / AUX /
|
909,53 EUR |
|
|
( 1.082,34 EUR incl. VAT ) ≈ £773.10 | ≈ $1,021.40 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 2027588 |
|---|---|
| Mfg Part No: | EAH-8 |
| UPC/EAN: | 810084693117 |
| Weight: | 9.8 kg |
Product information for UBIQUITI NETWORKS EAH-8:
Enterprise-class access control panel with entry and exit control for eight doors and battery backup support. (8) Lock terminals (12V or dry)
(8+8) Inputs for exit request devices and door position sensors
(8) PoE ports for access readers
(4) AUX ports for bells, sirens or door openers
(1) Battery backup input (32-48V)
Technical Specifications Mechanical Dimensions 379 x 355 x 105 mm (15 x 14 x 10,4 cm ( 4,1 inch )) Weight Unit: 9.1 kg (20 lb)
Bracket: 624 g (1.4 lb) Housing Material SGCC case with PC cover Mounting Material SGCC wall mount plate Hardware Network Interface (10) 10/100/1000 Base-T Power Method Universal input, 100-240 VAC, ~4.4 A max., 50/60 Hz,
32-48 VDC, Lead acid battery Power supply AC/DC, internal Max. power consumption 240W PoE interface (8) PoE (pins 1, 2+ 3, 6-) Voltage range PoE mode 44-57 VDC Total available PoE 60W Max. PoE wattage per port 15.4W Button (1) Factory reset LEDs System: white/blue
Output relay: solid white
Ethernet: flashing white Digital input (8) Prompt device inputs
(8) Door position sensor inputs
(1) Emergency dry output relay (8) Lock terminals (12V or dry)
(4) AUX terminals for advanced setup (chime/siren/door opener) Powered output relay Lock: 12 VDC, 1A/ dry
Aux: Dry only Recommend max. cable length 18 AWG
UACC cable DoorLockRelay length 20
AWG length 22
AWG length 24
AWG Length UA-Lock-Electric
(400mA) 100 m
(328 ft) 66 m
(217 ft) 42 m
(138 ft) 25 m
(82 ft) UA-Lock-Magnetic-270kg
(800mA) 46 m
(151 ft) 30 m
(98 ft) 20 m
(66 ft) 12 m
(29 ft) UA-Lock-Magnetic-540kg
(500mA) 80 m
(262 ft) 51 m
(167 ft) 32 m
(105 ft) 20 m
(66 ft) Other Locks
(1A) 36 m
(118 ft) 24 m
(79 ft) 15 m
(49 ft) 9 m
(30 ft) Operating Environment Indoor Use Only Operating Temperature 0 to 40 °C (32 to 104 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC
(8+8) Inputs for exit request devices and door position sensors
(8) PoE ports for access readers
(4) AUX ports for bells, sirens or door openers
(1) Battery backup input (32-48V)
Technical Specifications Mechanical Dimensions 379 x 355 x 105 mm (15 x 14 x 10,4 cm ( 4,1 inch )) Weight Unit: 9.1 kg (20 lb)
Bracket: 624 g (1.4 lb) Housing Material SGCC case with PC cover Mounting Material SGCC wall mount plate Hardware Network Interface (10) 10/100/1000 Base-T Power Method Universal input, 100-240 VAC, ~4.4 A max., 50/60 Hz,
32-48 VDC, Lead acid battery Power supply AC/DC, internal Max. power consumption 240W PoE interface (8) PoE (pins 1, 2+ 3, 6-) Voltage range PoE mode 44-57 VDC Total available PoE 60W Max. PoE wattage per port 15.4W Button (1) Factory reset LEDs System: white/blue
Output relay: solid white
Ethernet: flashing white Digital input (8) Prompt device inputs
(8) Door position sensor inputs
(1) Emergency dry output relay (8) Lock terminals (12V or dry)
(4) AUX terminals for advanced setup (chime/siren/door opener) Powered output relay Lock: 12 VDC, 1A/ dry
Aux: Dry only Recommend max. cable length 18 AWG
UACC cable DoorLockRelay length 20
AWG length 22
AWG length 24
AWG Length UA-Lock-Electric
(400mA) 100 m
(328 ft) 66 m
(217 ft) 42 m
(138 ft) 25 m
(82 ft) UA-Lock-Magnetic-270kg
(800mA) 46 m
(151 ft) 30 m
(98 ft) 20 m
(66 ft) 12 m
(29 ft) UA-Lock-Magnetic-540kg
(500mA) 80 m
(262 ft) 51 m
(167 ft) 32 m
(105 ft) 20 m
(66 ft) Other Locks
(1A) 36 m
(118 ft) 24 m
(79 ft) 15 m
(49 ft) 9 m
(30 ft) Operating Environment Indoor Use Only Operating Temperature 0 to 40 °C (32 to 104 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC
