Triton RXA-12-AS4-CAX-A1 48,3 cm ( 19 inch ) wall-mounted enclosure, 12 U, 1-piece, T400, light grey, disassembled, Flat Pack content_copy

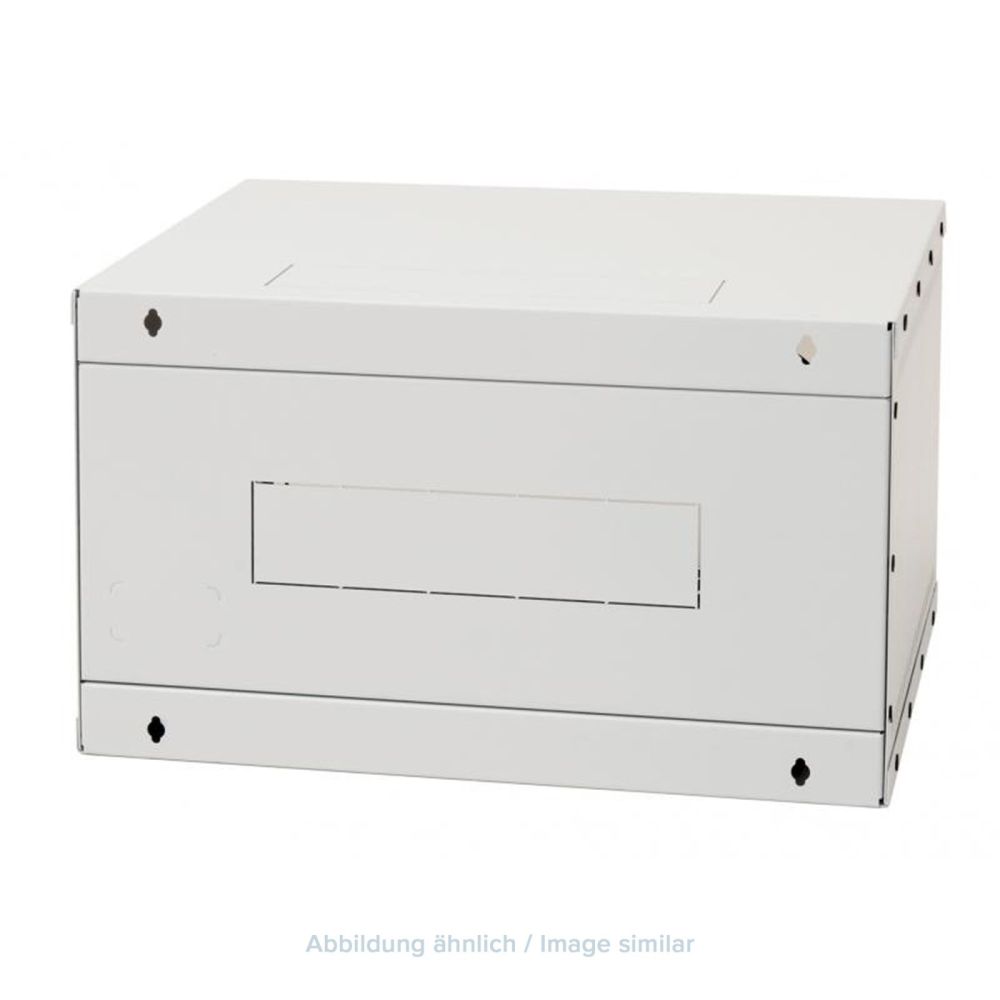

The Triton RXA-12-AS4-CAX-A1 is a 48,3 cm ( 19 inch ) wall cabinet in 12 U format, designed for use in office environments. The housing is delivered in disassembled form (flat-pack concept) and consists of sheet steel in light grey colour (RAL 7035). Dimensions are 550 mm width, 580 mm height, and 400 mm depth. The construction allows for quick assembly within approximately 5 to 10 minutes, with individual parts connected via plastic connectors. Installation is carried out on a wall with sufficient load-bearing capacity, such as brick or concrete wall, using included screws, anchors, and washers. The recommended maximum load is 25 kg, which must be evenly distributed to ensure stability.

Applications

The wall cabinet is designed for mounting data and telecommunication systems as well as their distribution systems. It is not intended for outdoor use or for environments with explosion hazard, moisture, or dampness. Use is restricted to enclosed, dry rooms that do not allow mechanical damage or improper handling of the housing. The construction protects against unauthorized access and provides secure housing for sensitive IT components.

Functions and Equipment in Detail

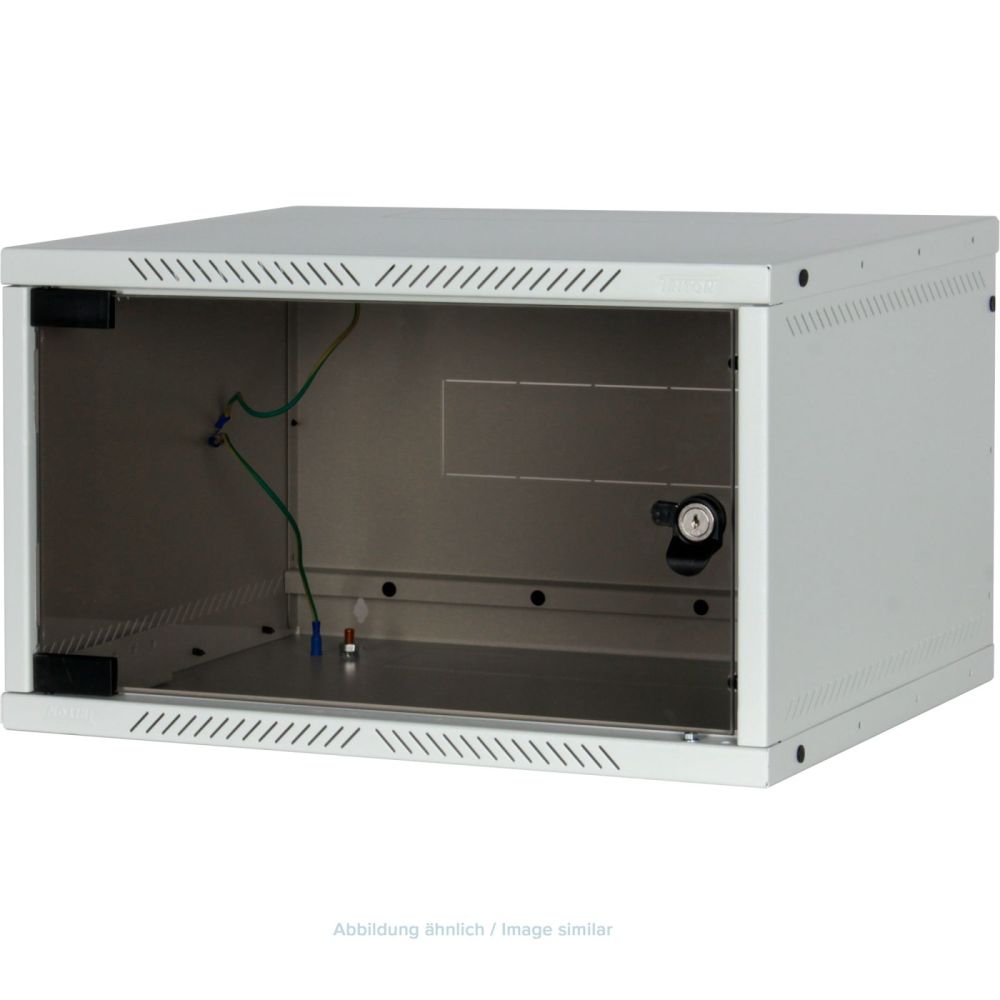

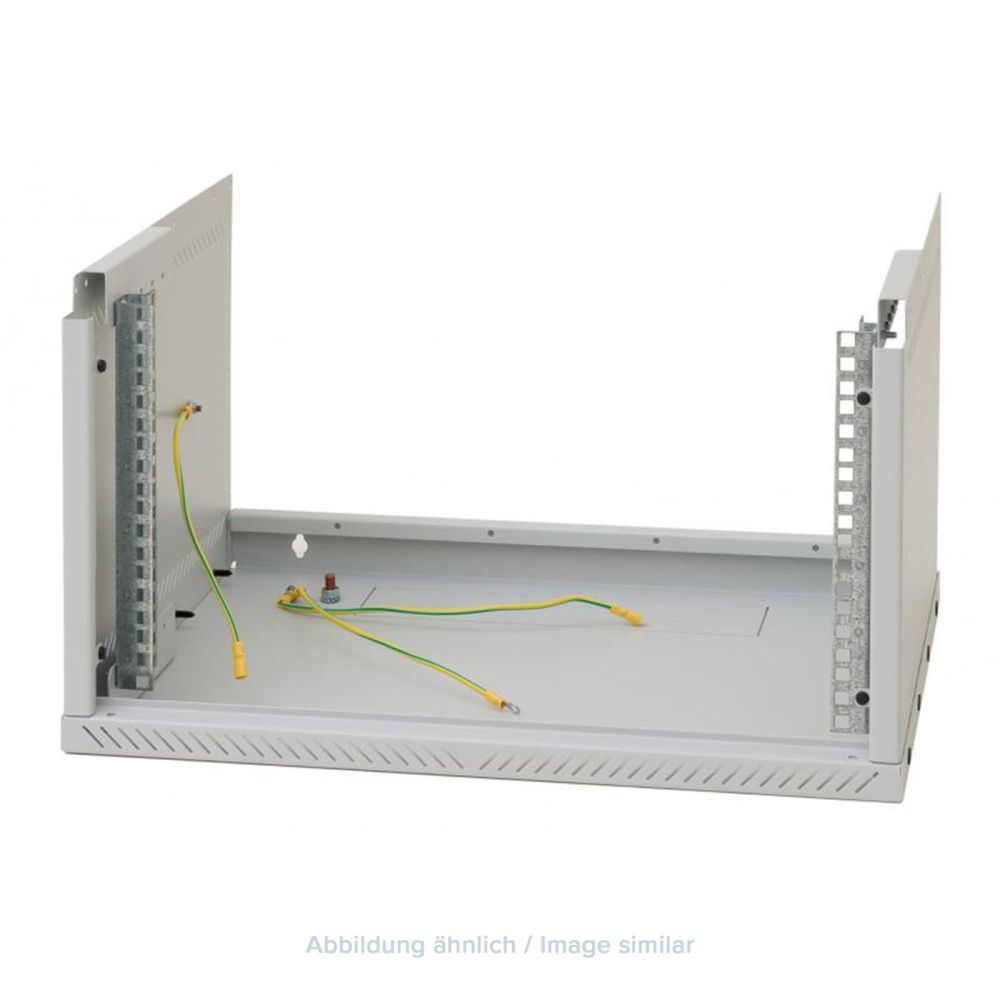

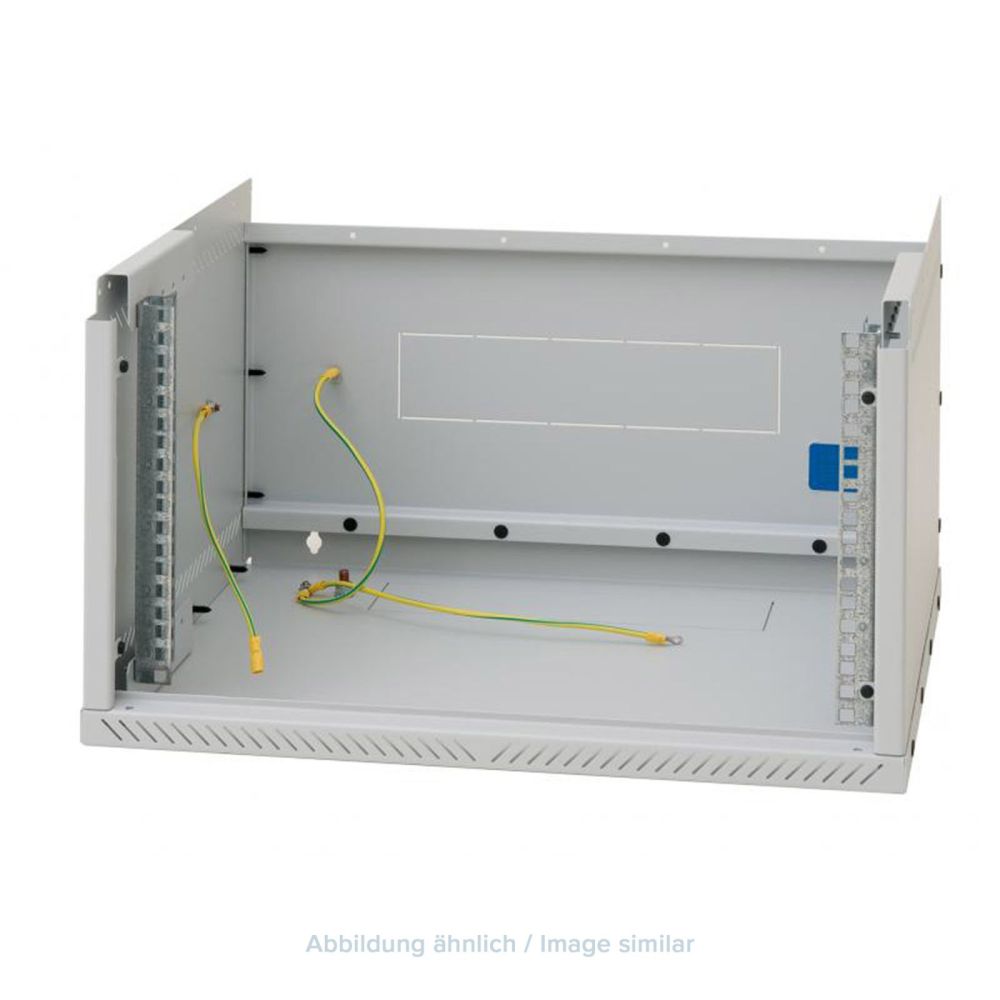

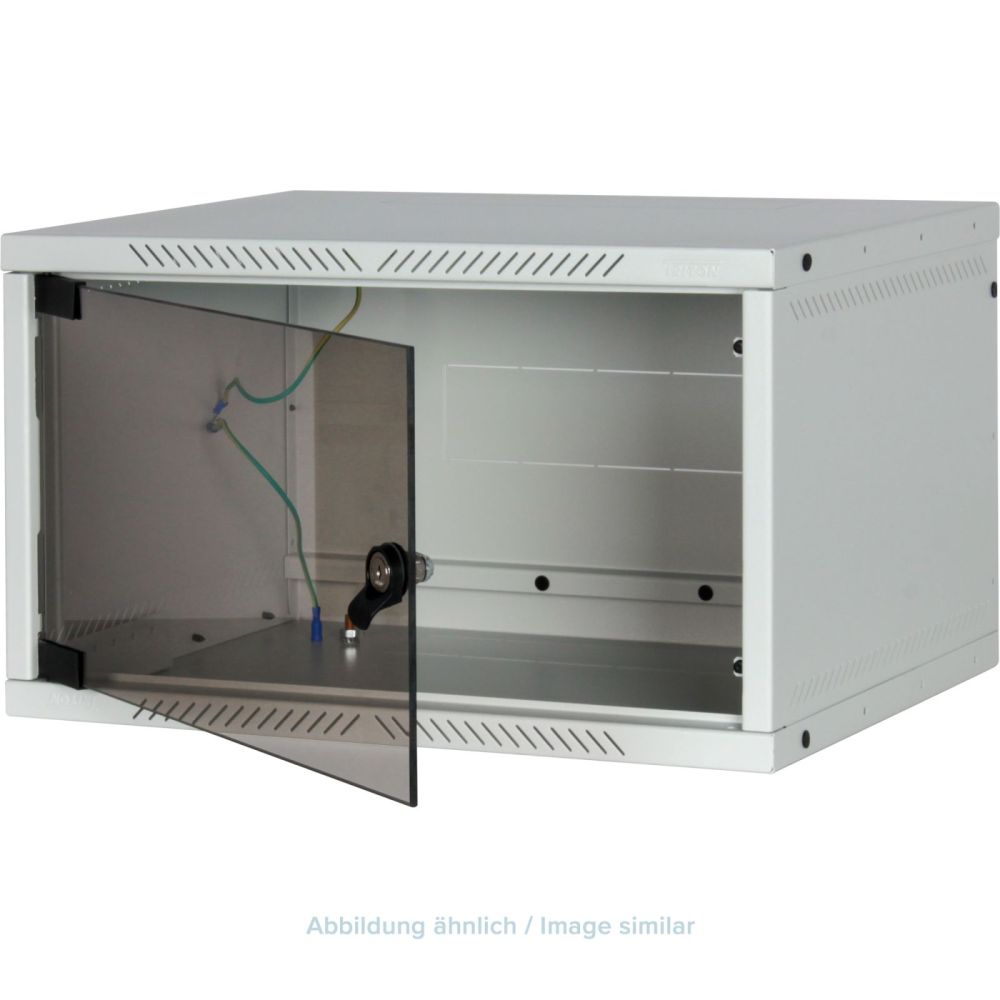

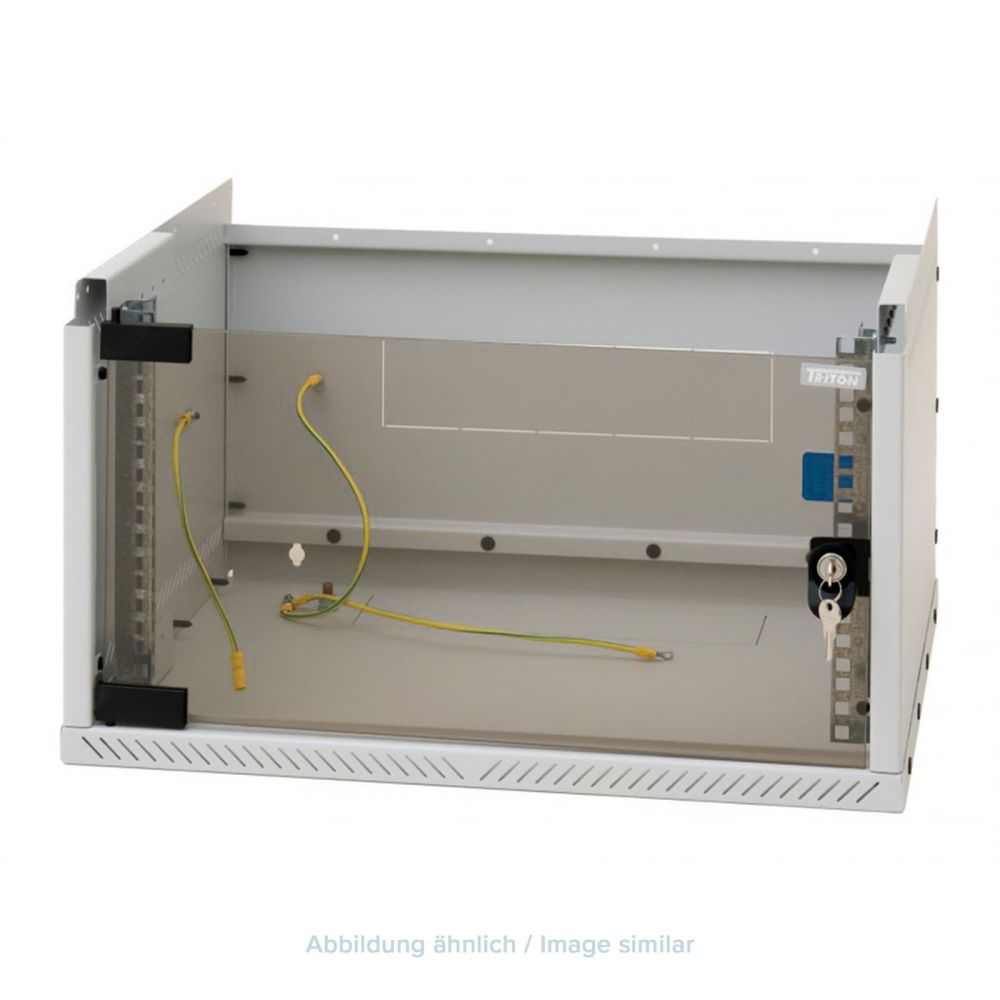

The housing features a 4 mm thick safety glass door with bronze-coloured appearance, equipped with a locking system. The door can be mounted with right- or left-hand swing and provides convenient access to installed devices. Doors are rated for a maximum load of 10 kg per door. Inside, two depth-adjustable vertical profile rails are integrated, enabling flexible device mounting. The rear panel is removable, as are the side panels, facilitating access for installation and maintenance.

Technology Explained Simply

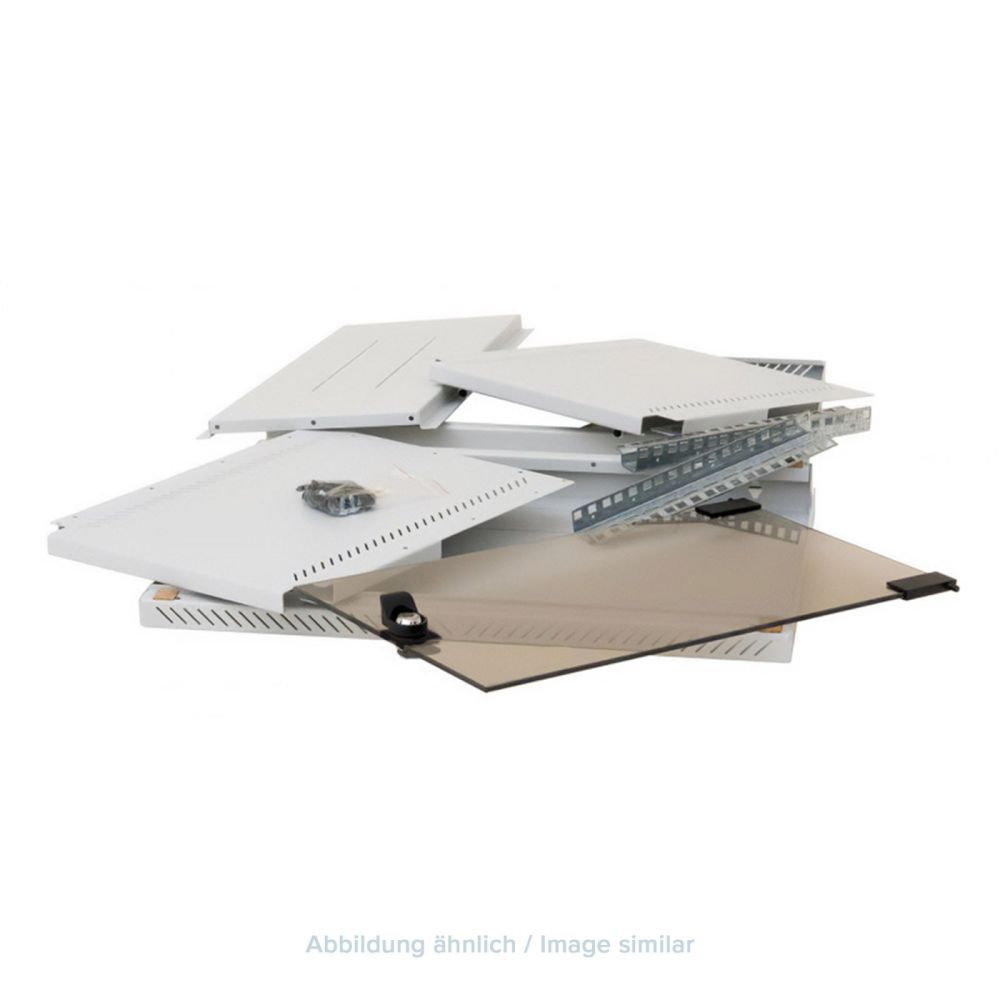

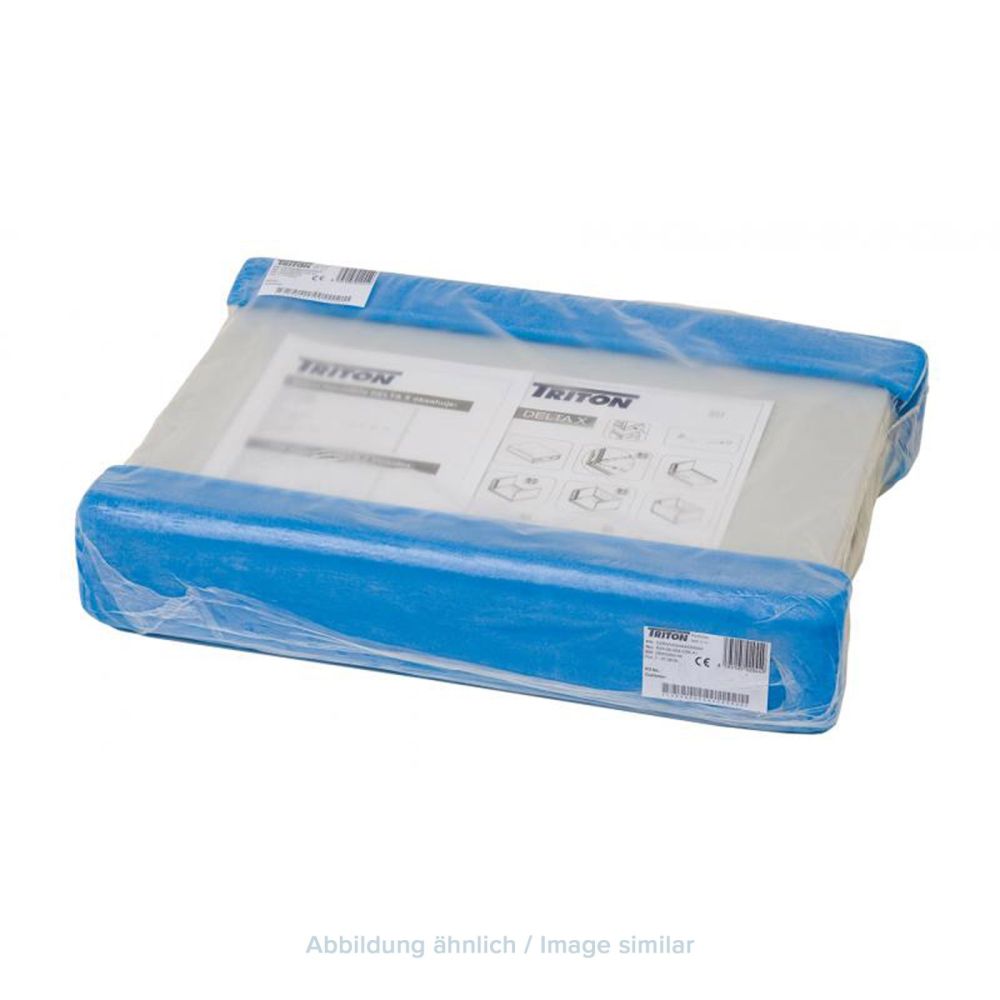

The construction is based on a disassembled design, where all parts are connected via plastic connectors. This reduces transport and storage costs and enables quick assembly without special tools — only a Torx screwdriver (T25) is required. The minimum sheet thickness is 65 micrometres, ensuring sufficient stability and corrosion protection. The protection class IP30 protects against solid foreign objects larger than 2.5 mm and against splashing water, but not against direct water jets or immersion. Passive ventilation is achieved through ventilation slots, enabling sufficient air circulation for cooling installed components.

Compatibility and Accessories

The cabinet is equipped with three cable entries — top, bottom, and rear — each with removable covers. These allow for organized cable routing. Compatible accessories include mounting kits with screws and cage nuts, cable ties, intermediate shelves, and UPS systems from the CP series. Additionally, wall housings from the SMA series and control centres for IP-based building automation are available, enabling integration into existing networks and control systems.

Mounting and Installation

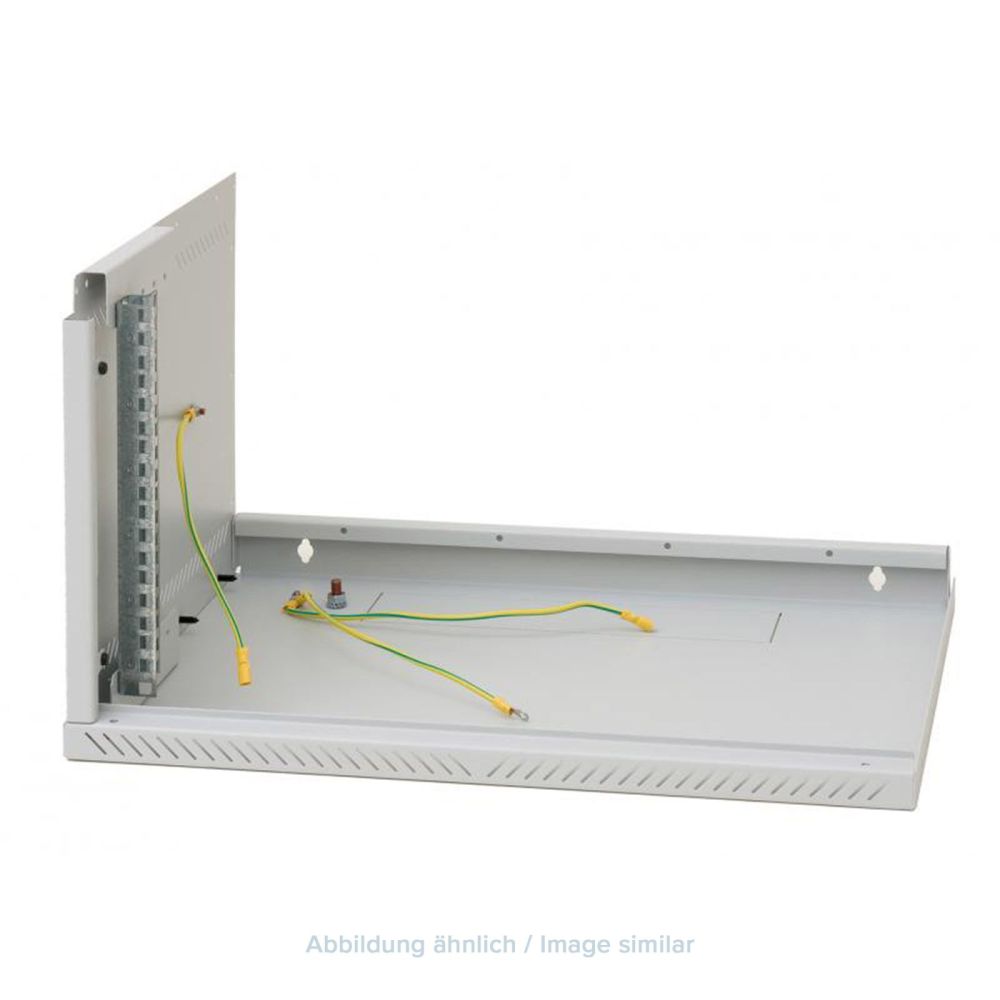

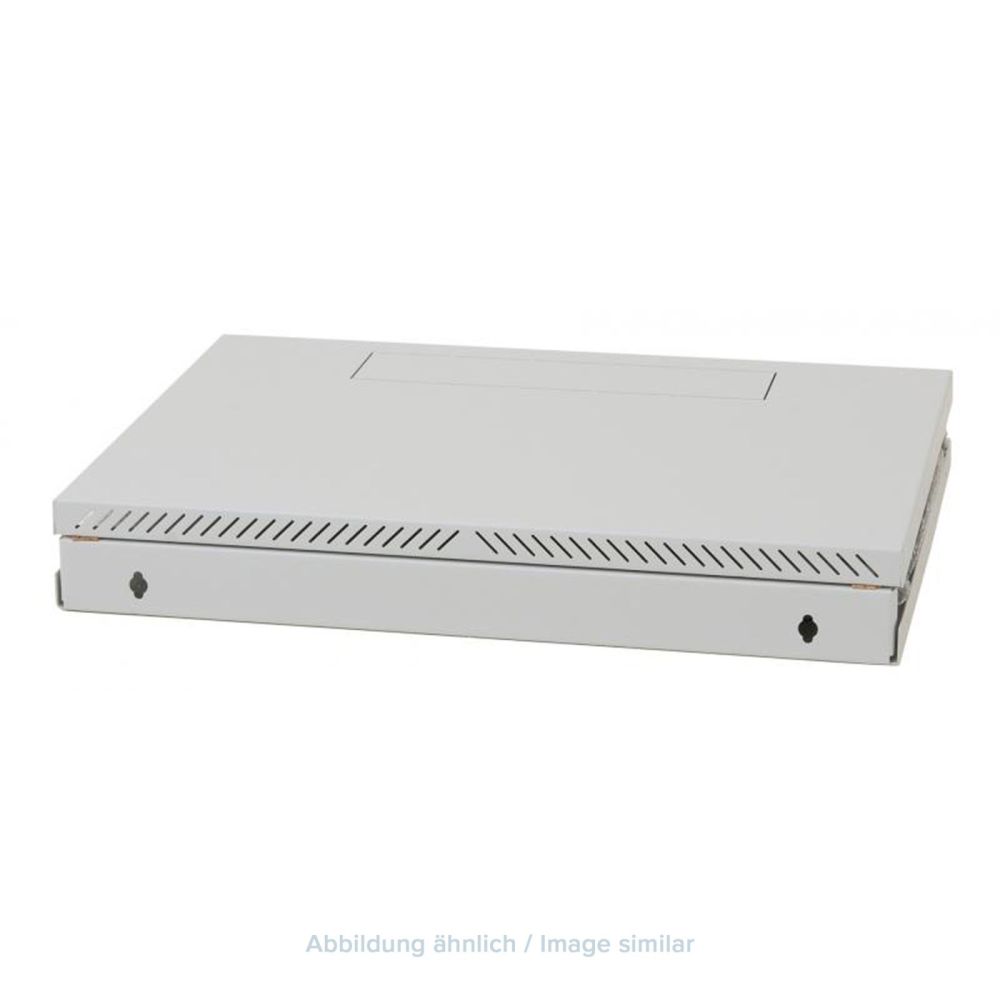

Mounting is performed on the wall using the included mounting elements. The hole spacing for hanging is marked in the distribution diagram with the value "R". Earthing is achieved via an integrated earthing system, with an M8 screw in the base of the housing serving as the main earthing point. Earthing cables must be properly secured throughout the entire service life. The installation depth is a maximum of 300 mm, allowing the cabinet to be used even in rooms with limited space.

Advantages in Operation

The wall cabinet offers a compact, secure, and easy-to-maintain solution for housing IT and communication devices. The disassembled delivery form reduces transport costs and enables flexible storage. The depth-adjustable rails and removable walls simplify installation and maintenance. The integrated earthing and cable entries ensure organized and safe cabling. The construction is designed for use in offices and technical rooms where stable and secure mounting of distributors is required.

Technical data
Door width	505mm
Height packaging	0.580m
Height (outside)	580mm
Depth	400mm
Width	550mm
Protection class	IP30
Height unit	12U
Packaging volume	0.1276m³
Weight	19.380kg
Colour	Grey (RAL7035)
Width packaging	0.550m
Door height	530mm
Length packaging	0.400m
Recommended maximum load	25kg
Detachable side panels
Detachable rear panel
Demountable

---
