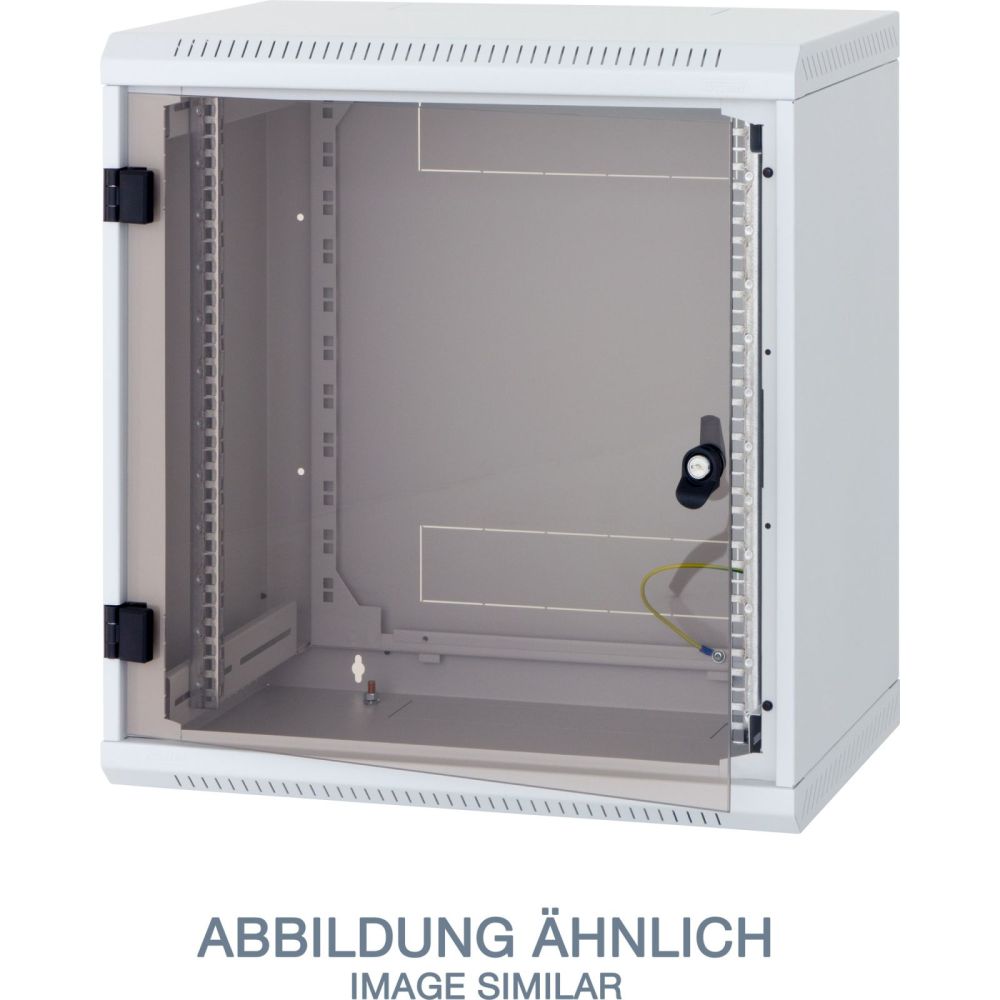

Triton RBA-09-AS4-CAX-A1 48,3 cm ( 19 inch ) wall-mounted enclosure, 9 U, 1-piece, T395, light grey content_copy

The Triton wall-mounted enclosure RBA-09-AS4-CAX-A1 is a single-piece 48,3 cm ( 19 inch ) wall rack system with a height of 9 U, designed for use in data and telecommunications installations. The enclosure is mounted directly to the wall and features a compact, robust construction made of steel deep-drawn sheet in light grey colour (RAL 7035). Dimensions are 600 mm (width) × 500 mm (height) × 395 mm (depth), with a maximum installation depth of 300 mm. The enclosure is designed for a recommended maximum load of 30 kg, with individual doors capable of supporting up to 10 kg. The construction is welded, providing high stability, with a minimum coating thickness of 65 µm.

Applications
This wall-mounted enclosure is designed for indoor use, particularly in IT infrastructure areas such as server rooms, network centres, or distribution boxes in buildings. It is suitable for installing network devices, switches, routers, modems, and other 48,3 cm ( 19 inch ) components. The protection class IP20 ensures protection against contact with fingers and against solid foreign objects, but not against splashing water or dust. The maximum installation depth of 300 mm allows for mounting devices with shallow depth, while the overall depth of the enclosure is 395 mm.

Functions and Equipment in Detail
The enclosure features a 4 mm thick, impact-resistant, hardened safety glass door with a bronze-coloured appearance, certified according to CSN EN 12150-1+A. In case of breakage, the glass shatters into small, harmless fragments, enhancing safety. The door can be installed with right- or left-hand swing, and rotating the entire enclosure changes the door swing direction. The door opens 165° and can be removed. The locking system ensures secure access to the interior. Two door keys are included in the delivery scope.

Technology Explained Simply
The vertical 48,3 cm ( 19 inch ) rack rails are depth-adjustable, enabling flexible device mounting. The delivery includes two adjustable vertical rack rails. The rear panel of the enclosure is perforated, allowing an optional second pair of rack rails to be installed. At the bottom of the enclosure, there is an M8 screw serving as a central earthing point, connected via earthing cables to all removable parts. This ensures safe and proper earthing throughout the entire service life. Cable entries in the roof, floor, and rear panel are equipped with removable blanking plates, which can be sealed with brush strips to prevent dust and foreign objects. A brush strip set is included in the delivery scope.

Compatibility and Accessories
The enclosure is designed for mounting 48,3 cm ( 19 inch ) components. Compatible accessories include mounting kits with screws and cage nuts, 48,3 cm ( 19 inch ) intermediate shelves in various depths (e.g. 150 mm, 250 mm), cable ties, and UPS systems such as models CP1200EIPFCRM2U, CP1600EIPFCRM2U, and CP2000EIPFCRM2U. Additionally, MSR control centres for IP-based building automation are available and can be integrated into the enclosure. The A6 version of the enclosure offers six removable openings in the roof and floor for mounting ventilation units (e.g. RAx-CH-X2x-X1), enabling cooling of components that could not be cooled in conventional wall distributors.

Mounting and Installation
The depth-adjustable rack rails facilitate device mounting and cable management. The removable side and rear panels allow for flexible adaptation and maintenance.

Operational Advantages
The enclosure provides a stable, secure, and easy-to-maintain solution for use in IT infrastructures. The safety glass door ensures visibility and access, while earthing safety and cable entries with brush strips enhance operational safety. The integrated ventilation openings in the A6 version enable efficient cooling of devices requiring active ventilation. The robust welded construction and high-quality workmanship ensure long service life and reliability in use.

Delivery Scope
Included in the delivery scope: 1 brush strip, 2 door keys, 4 wood screws 6 x 50, 4 washers 6.6, 4 10er anchors, 8 cage nuts M6, and two adjustable vertical rack rails. The earthing cables are connected to all removable parts, and the M8 screw at the bottom serves as the central earthing point.

Technical data
Length packaging	0.395m
Door width	516mm
Packaging volume	0.1185m³
Width	600mm
Height packaging	0.500m
Recommended maximum load	30kg
Protection class	IP20
Door height	395mm
Weight	16.160kg
Depth	395mm
Height unit	9U
Colour	Grey (RAL7035)
Width packaging	0.600m
Height (outside)	500mm
Detachable side panels
Ventilation holes
Demountable
Detachable rear panel

---
