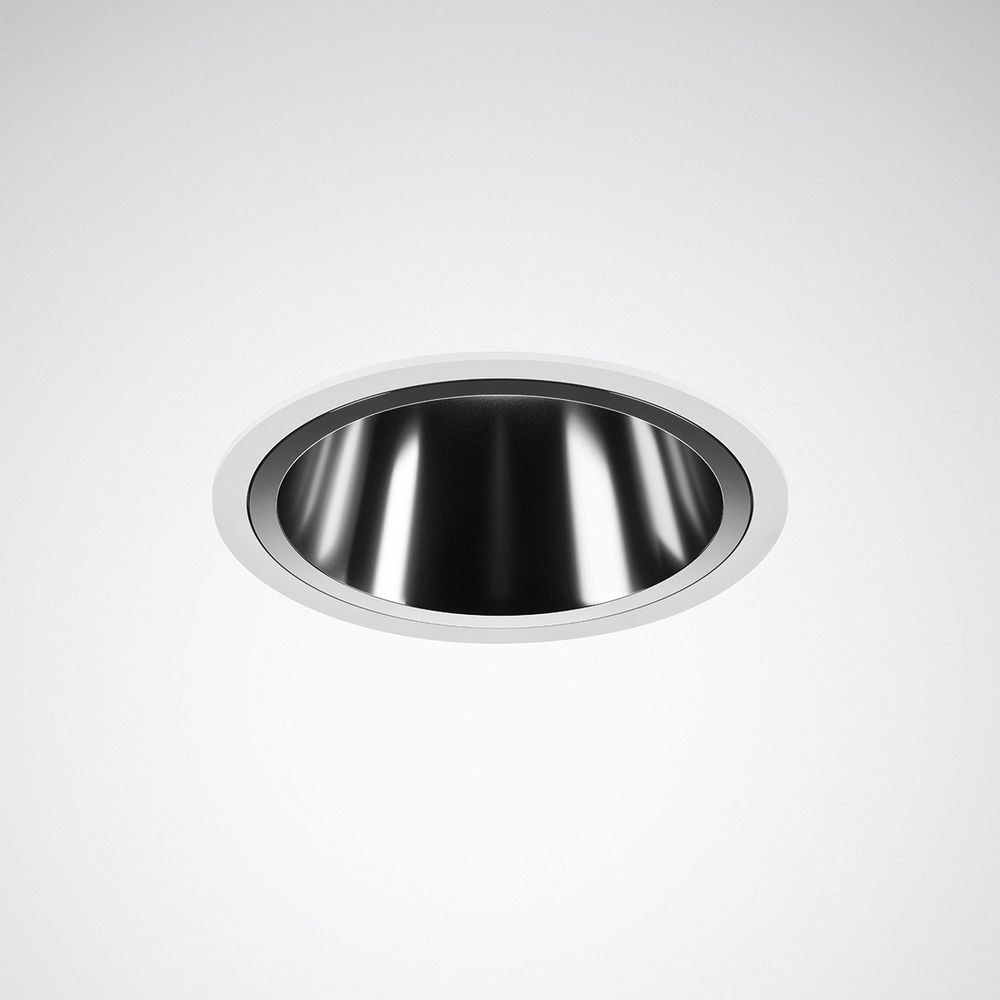

Compact LED downlight in a round design. Recessed downlight with edge for sawn ceiling openings. Tool-free ceiling installation using quick-assembly clamps. Ceiling cutout size Ø 150 mm. Renovation panels for installation in existing ceiling openings with unsuitable dimensions are available as accessories that must be ordered separately. Installation depth >= 130 mm, luminaire height 133 mm. With high-gloss vapor-coated plastic reflector. Color of the ceiling installation frame: white. Symmetrical light distribution characteristics and half-value angle: 60° Very Wide Flood. Light control using collimator/lens technology. Limitation of direct glare in accordance with UGR 19. With one LED module. Luminaire luminous flux 2,700 lm, connected load 26.0 W, luminaire luminous efficacy 104 lm/W. Variable light color (warm white - daylight white), correlated color temperature (CCT) 2700-6500 K, general color rendering index (CRI) Ra = 80. Color tolerance (initial MacAdam) = 3 SDCM corresponds to a very high color uniformity of the LED in the application. Average service life L90 (tq 25 °C) = 50,000 h, average service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Housing and heat sink made of die-cast aluminum. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP20. Protection type on the room side:
IP20. Shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 850 °C. The ballast is connected to the mains using a connection terminal. The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire is silicone-free. The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. For workplaces with display screen devices. Offices, corridors, foyers, conference rooms, sales areas, waiting areas. With Trilux after-sales promise: The luminaire is available for 10 years, spare parts (LED module, operating device and optical system) for 15 years after the invoice date. Reasonable changes that serve progress are reserved.
Type:
SNSAct RC5 HRVFL-19 26 ETDD8 01
Questions & answers
What is the delivery time of Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451?
The article Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 9002043451 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451 always at the best possible price. We can give you a discount of 2% on
Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451 we can offer you a price of 317,67 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux SNSAct RC5 HRVFL-19 26 ETDD8 01 downlight 2700lm 9002043451 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
