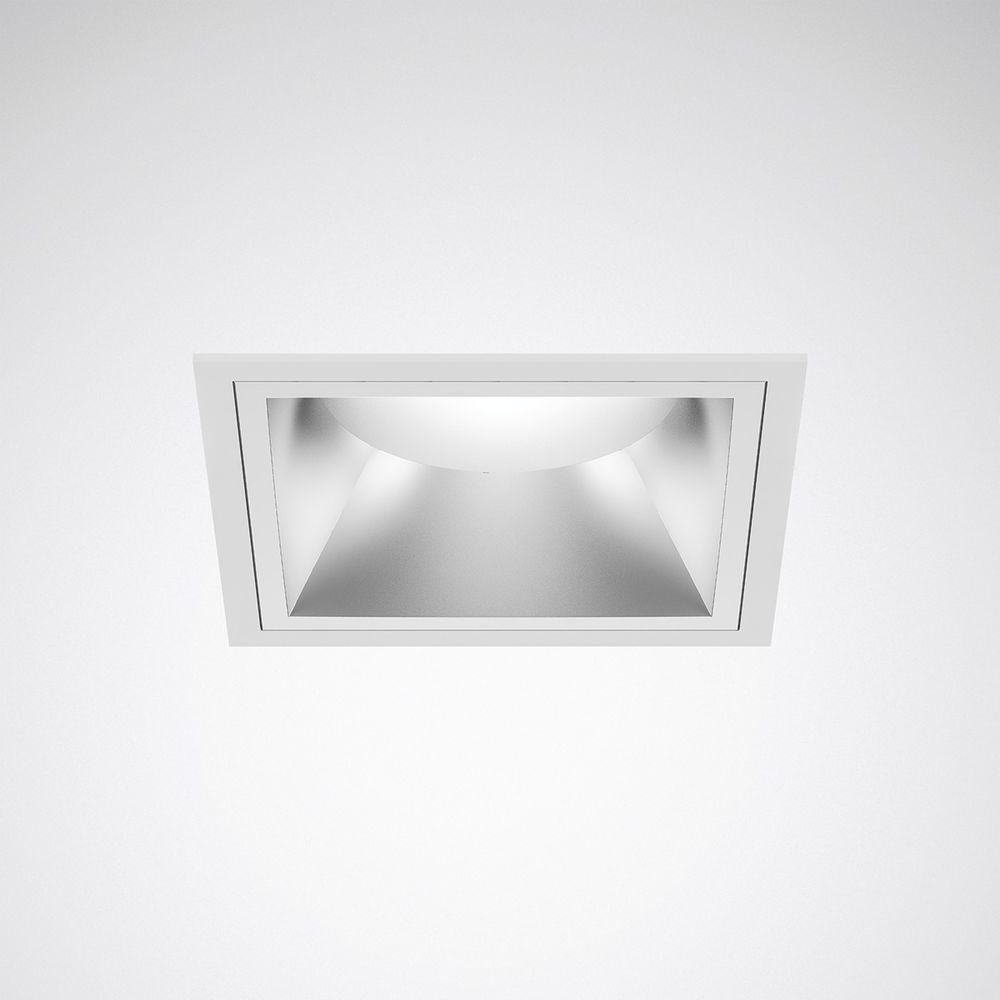

Trilux SNS QC5 MRVFL-19 14-840 ET 01 downlight 13W 1400lm 9002021120

Compact LED downlight in a square design. Recessed downlight with edge for sawn ceiling openings. Tool-free ceiling installation using quick-assembly clamps. Square ceiling cut-out size 150 mm. Installation depth >= 130 mm, luminaire height 133 mm. With matt glossy vapor-coated plastic reflector. Color of the ceiling installation frame: white. Symmetrical light distribution characteristics and half-value angle: 60° Very Wide Flood. Light control using collimator/lens technology. Limitation of direct glare in accordance with UGR 19. With one LED module. Luminaire luminous flux 1,400 lm, connected load 11.0 W, luminaire luminous efficacy 127 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra = 80. Color tolerance (initial MacAdam) = 3 SDCM corresponds to a very high color uniformity of the LED in the application. Average service life L90 (tq 25 °C) = 50,000 h, average service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Housing and heat sink made of die-cast aluminum. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20. Protection type on the room side: IP20. Shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 3-pin connection terminal up to 2.5 mm² for mains connection and separate 3-pin mains forwarding box. The mains-side connection of the ballast is made using a connection terminal. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire is silicone-free. The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. For workplaces with display screen devices. Offices, corridors, foyers, conference rooms, sales areas, waiting areas. With Trilux after-sales promise: The luminaire is available for 10 years, spare parts (LED module, control gear and optical system) for 15 years after the invoice date. Reasonable changes that serve the purpose of progress are reserved.
Type: SNS QC5 MRVFL-19 14-840 ET 01
