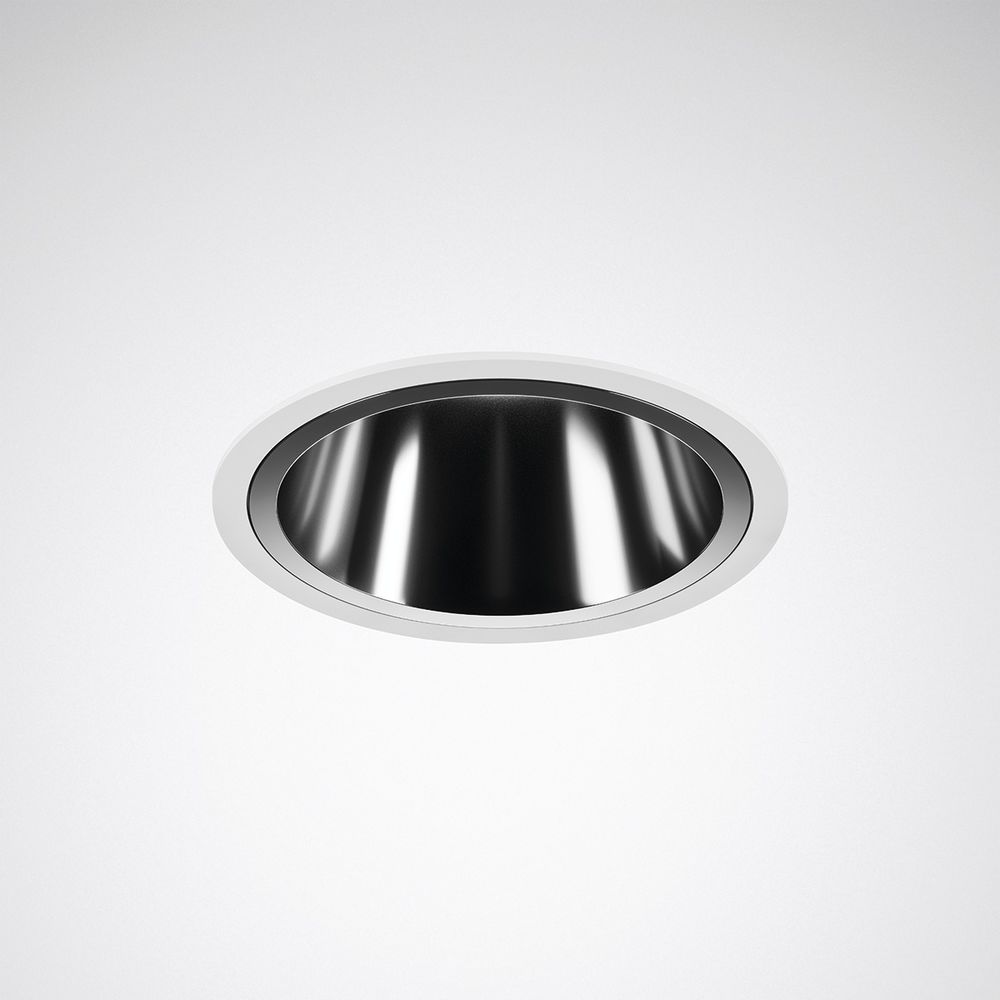

Compact LED downlight in a round design. Recessed downlight with edge for sawn ceiling openings. Tool-free ceiling installation using quick-assembly clamps. Ceiling cutout size Ø 210 mm. Renovation panels for installation in existing ceiling openings with unsuitable dimensions are available as accessories that must be ordered separately. Installation depth >= 127 mm, luminaire height 130 mm. With high-gloss vapor-coated plastic reflector. Color of the ceiling installation frame: white. Symmetrical light distribution characteristics and half-value angle: 60° Very Wide Flood. Light control using collimator/lens technology. Limitation of direct glare in accordance with UGR 19. With one LED module. Luminaire luminous flux 3,800 lm, connected load 33.0 W, luminaire luminous efficacy 115 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra = 80. Color tolerance (initial MacAdam) = 3 SDCM corresponds to a very high color uniformity of the LED in the application. Average service life L90 (tq 25 °C) = 50,000 h, average service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Permissible ambient temperature (ta): -20 ° C - + 25 ° C. Housing and heat sink made of die-cast aluminum. Protection class (EN 61140): II, protection type (DIN EN 60529):
IP20. Protection type on the room side:
IP20. Shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 5-pin connection terminal up to 2.5 mm² for mains connection and separate 5-pin mains forwarding box. The mains-side connection of the ballast is made using a connection terminal. With electronic ballast, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). Possible dimming range: 1...100%. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Live-Link ready. The luminaire is silicone-free. The luminaire meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing center. For workplaces with display screens. Offices, corridors, foyers, conference rooms, sales areas, waiting areas. With Trilux after-sales promise: The luminaire is available for 10 years, spare parts (LED module, control gear and optical system) for 15 years after the invoice date. Reasonable changes that serve progress are reserved.
Type:
SNS RC7 HRVFL-19 38-830 ETDD 01
Questions & answers
What is the delivery time of Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983?
The article Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 9002015983 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983 always at the best possible price. We can give you a discount of 2% on
Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983 we can offer you a price of 288,08 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux SNS RC7 HRVFL-19 38-830 ETDD 01 downlight, 35W, 3800lm, 9002015983 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
