TRILUX TugraHE 15 PL 30-8-RGBW ETDD PC 23 luminaire Tugra prisms 8469151

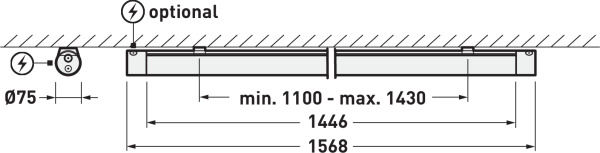

Multivariable and modern tubular luminaire with a 75 mm profile diameter. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For wall and ceiling mounting. Standard stainless steel mounting clips (2 pieces, V2A) with triangle included in delivery. Optional accessories enable further mounting concepts. As a single luminaire or in light strip application. The continuous mounting channel of the luminaire body enables very high flexibility in the placement of the fastening points. The packaging is made of recyclable cardboard, plastic-free. Multiple packaging with 28 luminaires and project packaging with 108 luminaires per packaging unit also reduce the general consumption of resources in the overall process. Opal cylinder profile with photometrically effective prism structure as secondary optics. With Lambertian luminous intensity distribution. With predominantly direct luminous intensity distribution. With a slight indirect component to brighten the surface. Luminaire luminous flux and light color are fixed. Rated luminous flux 3000 lm, rated power 50 W, maximum luminaire luminous efficacy 60 lm/W. Light color RGBW, correlated color temperature (CCT) RGBW, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Color of the end caps gray (RAL 7035). Standard end caps included in delivery. Luminaire length 1568 mm, luminaire height 75 mm, Ø luminaire body 75 mm. The device carrier is fixed to the luminaire profile with transparent devices to prevent shadows. Permissible ambient temperature (ta) -30 °C - 35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK10, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.0 kg. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). ENEC certification by an independent testing body is in preparation. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: TugraHE 15 PL 30-8-RGBW ETDD PC 23
