TRILUX Amatris G4 C07 WR 14-26/3ML-840 01 Downlights 20W 2600lm 8382440 content_copy

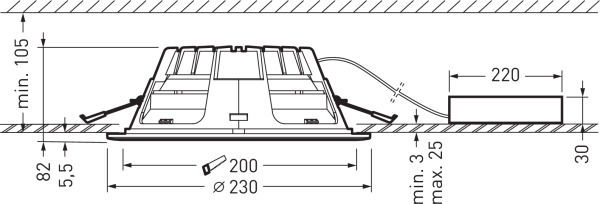

Round LED downlight with white reflector. Tool-free ceiling installation using quick-mounting springs. With closed, prismatic PMMA diffuser. Reflector painted white. With symmetrical, narrow beam light distribution. Luminaire luminous flux adjustable in 3 levels. Rated luminous flux 1400 lm - 2600 lm, rated power 11.5 W - 20 W, maximum luminaire luminous efficacy 130 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Ceiling ring and heat sink made of die-cast aluminum. Ceiling ring powder-coated white (RAL 9016). Including decorative ring for holding clothing. External dimensions of ceiling ring Ø 230 mm, luminaire height 82 mm. Permissible ambient temperature (ta): - +25 °C. Weight: 0.8 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Separate control gear with integrated strain relief. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
Type: Amatris G4 C07 WR 14-26/3ML-840 ET 01
