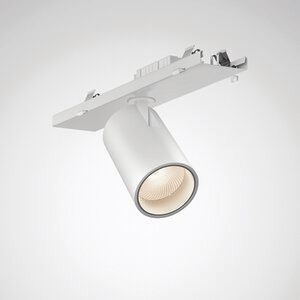

TRILUX 7651 LentyP L-FL 40-840 M35 ET 01 Electronic Transformer (ET) 26W 8315740

Device carrier for E-Line 7651 Fix strip lighting system with track spotlight for accent lighting, can be rotated 355° and pivoted 100°. For combination with E-Line Fix 0765... support profiles with 375 mm plug spacing for IP20. Compatible with E-Line T5N/LED 07650... support profiles. As a single or strip light for direct ceiling mounting and suspended mounting using accessories that must be ordered separately. Fastened to the support profile using stainless steel snap locks that can be operated without tools. Proper installation of the device carrier with the support profile is confirmed by a clicking sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after successful installation, thus ensuring protection against theft and dismantling. Optics in ConVision® technology with LED lenses and anti-dazzle elements. Flood beam characteristic. Beam angle 34°. Luminaire luminous flux and light color are fixed. Rated luminous flux 3700 lm, rated power 26 W, maximum luminaire luminous efficacy 142 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 2 SDCM.. Equipment carrier made of sheet steel. Directional spotlight made of die-cast aluminum, structural powder-coated. Surface coated white (RAL 9016). Permissible ambient temperature (ta): +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, protection type on the room side: IP20. Weight: 1.2 kg. Automatic electrical connection through plug contacts with phase selection. The phase selection is done without tools. With electronic control gear, switchable. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
Type: 7651 LentyP L-FL 40-840 M35 ET 01
