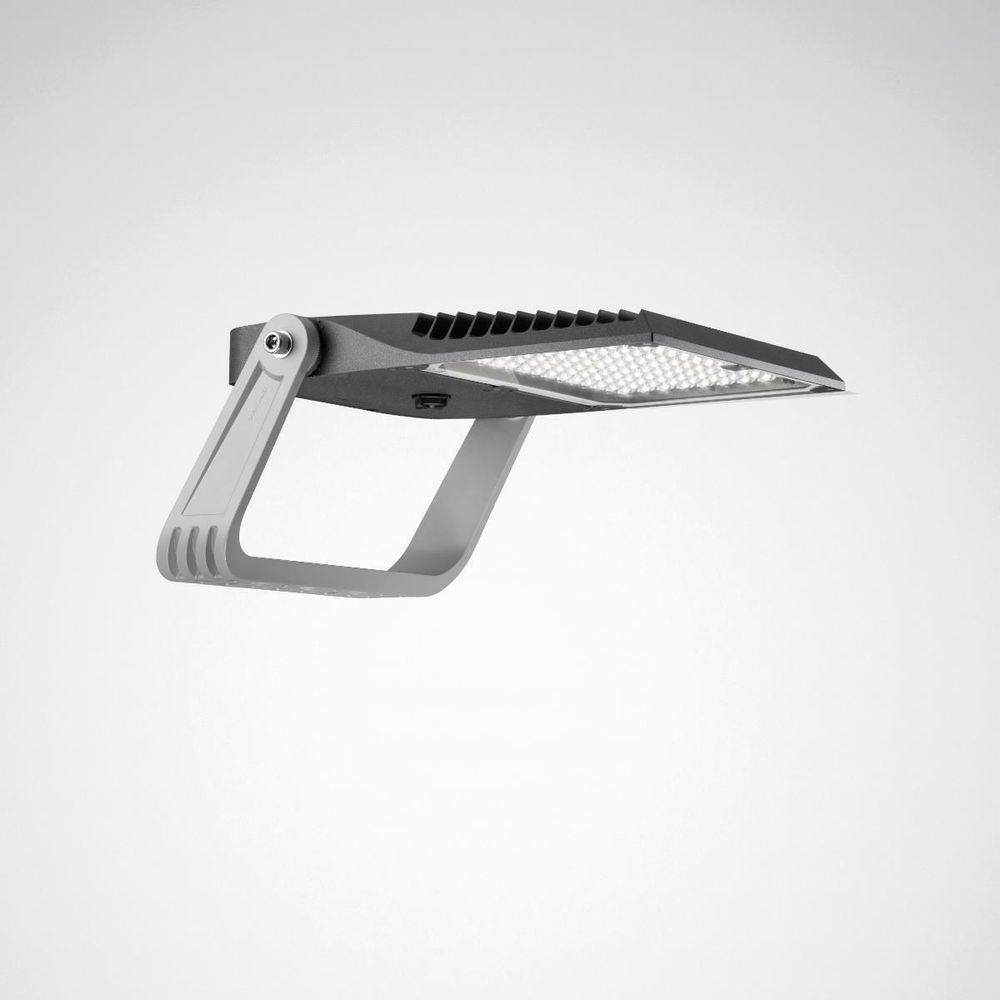

TRILUX LnPlus 60-AM19L-LR/35000-740 24G1 312W 35000lm 633x494x275 8275640

LED floodlight for area lighting. With power reduction via control phase. Switching off a control phase causes the luminaire luminous flux to be set to 50%. The luminaire meets the requirements of EN 60598 and is designed for wind effects in accordance with EN 1991 (Eurocode) with a basic wind speed of up to 30 m/s (corresponds to wind zone 4 in Germany) in terrain category 1. Mounting bracket made of die-cast aluminum. The sturdy mounting bracket with 3 holes enables both 2-point fastening and central 1-point fastening. Spotlight head can be pivoted using one-point mounting on the mounting bracket. The pivot position is secured by toothed locks. Spotlight head and mounting bracket are fully assembled on delivery. Mast mounting for single and multiple use possible using accessories. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical medium-wide beam light distribution. Additional beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color are fixed, with constant luminous flux at the end of the service life (CLO). LED system consisting of 24 MLT LED modules, each with 4 LEDs. Rated luminous flux 35,000 lm, rated power 298 W, maximum luminaire luminous efficacy 117 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body and cover plate carrier made of die-cast aluminum. Cover plate made of flat single-pane safety glass attached to the carrier frame. Luminaire body (primary color) and retaining bracket (additional color) in contrasting colors. Primary color anthracite (DB 703), additional color silver gray (RAL 9006). Luminaire housing with highly weather-resistant powder coating. Other color variants according to RAL or DB color code possible. Dimensions (L x W): 633 mm x 494 mm, height 279 mm. Ball-proof according to DIN 18032-3. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK09. Wind attack area fw . Weight: 15.5 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
Type: LnPlus 60-AM19L-LR/35000-740 24G1 ET
