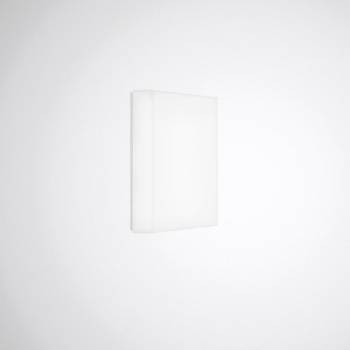

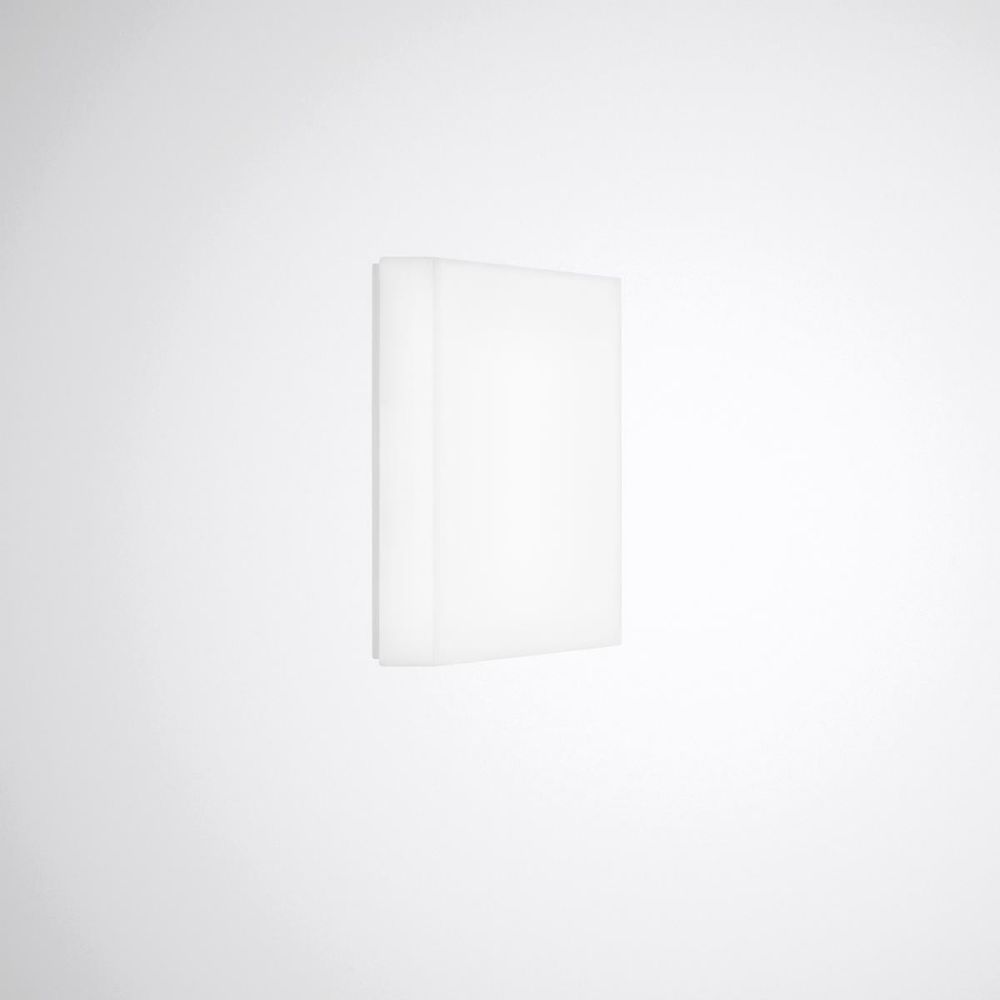

TRILUX Olisq QWD2 DW 20-840 ETDD IK Opal diffuser 17W 2000lm 840 IP40 8245351 content_copy

Decorative, square surface-mounted luminaire with an impact-resistant, opal diffuser made of PMMA. Decorative coverings for precisely fitting light and room staging are available as an optional accessory, which can also be made in customer-specific colors on request. Developed and manufactured in Germany. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. For wall or ceiling mounting. For protection and to support quick assembly, the components in the box are arranged in assembly order. The cover can be quickly mounted on the mounting body without tools using a click lock. The feed opening and the fastening points correspond to those of the Deca series. The material and structure of the covering diffuser ensure even and shadow-free illumination of the easy-to-clean luminaire surface. With Lambertian light intensity distribution. With a slight indirect component to brighten the surface. Luminaire luminous flux and light color are fixed. Rated luminous flux 2000 lm, rated power 15 W, maximum luminaire luminous efficacy 133 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The replacement is done without tools, the replacement light source can be obtained as a spare part. Luminaire body made of sheet steel. Surface coated white (RAL 9016). Luminaire dimensions (L x W x H): 325 mm x 325 mm x 62.5 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.7 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date available subject to reasonable changes that serve progress.
Type: Olisq QWD2 DW 20-840 ETDD IK
