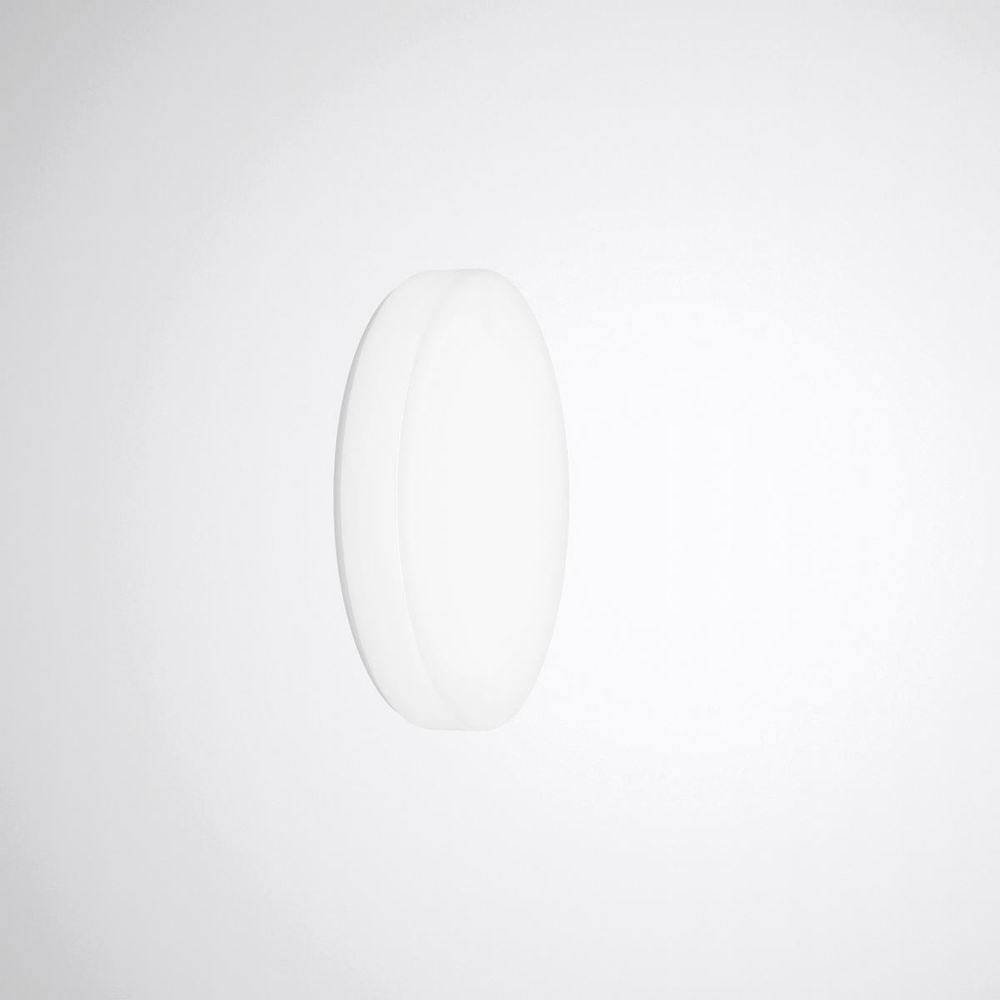

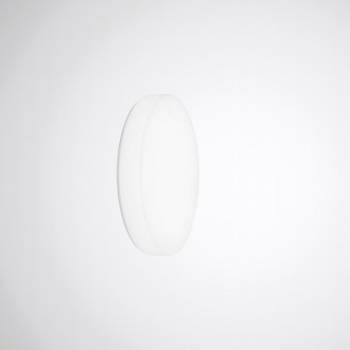

Decorative, round surface-mounted light with an opal, cylindrical diffuser made of PMMA. Version with increased protection class
IP54 all around. Decorative coverings for precisely fitting light and room staging are available as an optional accessory, which can also be made in customer-specific colors on request. Developed and manufactured in Germany. With integrated HF motion sensor. Shape of the detection area similar to an ellipse. Width of the detection area: 1 - 5 m. Length of the detection area: 0.5 - 5 m. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. In combination with an accessory (ZVF...) that can be ordered separately, the light is protected against vandalism and ball-proof in accordance with DIN 18032-3. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For wall or ceiling mounting. With accessories to be ordered separately, also suitable for semi-recessed installation (ceiling with cutout) and suspended installation. For protection and to support quick installation, the components in the box are arranged in assembly order. The cover is quickly mounted on the mounting body without tools using a click lock. The feed opening and the fastening points correspond to those of the 740N, Mondia series. The material and structure of the covering diffuser ensure even and shadow-free illumination of the easy-to-clean luminaire surface. With Lambertian luminous intensity distribution. With a slight indirect component to brighten the surface. Luminaire luminous flux and light color are fixed. Rated luminous flux 3800 lm, rated power 30 W, maximum luminaire luminous efficacy 127 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The replacement is done without tools, the replacement light source can be obtained as a spare part. Luminaire body made of sheet steel. Surface coated in white (RAL 9016). Luminaire diameter Ø 400 mm, luminaire height 68 mm. Insect-proof lamp compartment. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP54, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.1 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interests of progress.
Type:
Olisq RWD2 DW 40-830 ET HFS IP54
Questions & answers
What is the delivery time of Trilux Olisq RWD2 DW 40-830 ET HFS IP54 light 29W 3800lm 830 IP54 8203540?
The article Trilux Olisq RWD2 DW 40-830 ET HFS IP54 light 29W 3800lm 830 IP54 8203540 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 8203540 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Olisq RWD2 DW 40-830 ET HFS IP54 light 29W 3800lm 830 IP54 8203540 always at the best possible price. We can give you a discount of 2% on
Trilux Olisq RWD2 DW 40-830 ET HFS IP54 light 29W 3800lm 830 IP54 8203540 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Olisq RWD2 DW 40-830 ET HFS IP54 light 29W 3800lm 830 IP54 8203540 we can offer you a price of 364,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
