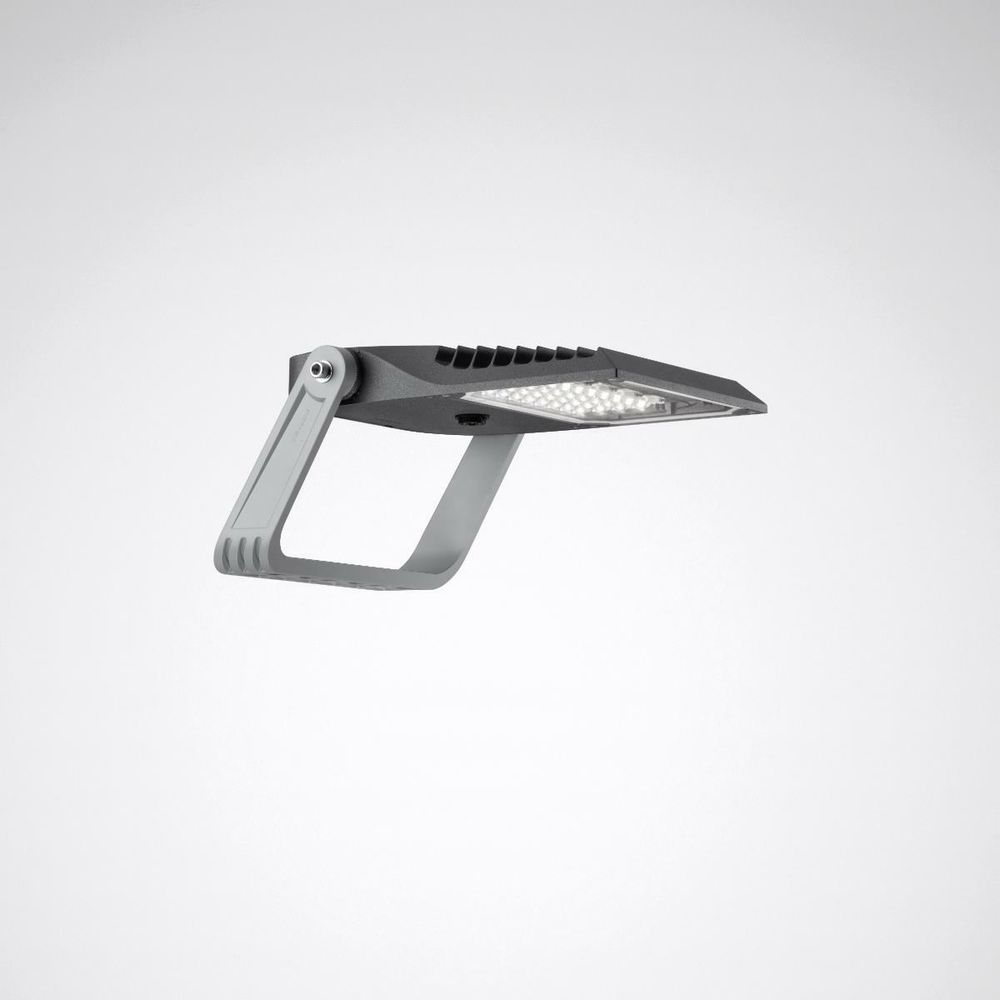

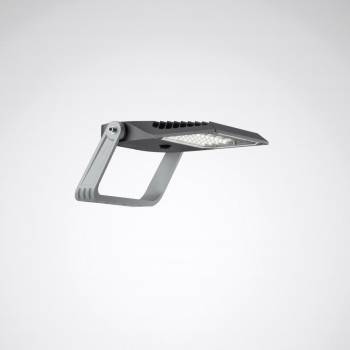

TRILUX LnPlus 40-AM19L/3200-730 4G1 ETDD spotlight CLO 25W 3200lm 8122651

LED floodlight for area lighting. The luminaire meets the requirements of EN 60598 and is designed for wind impacts in accordance with EN 1991 (Eurocode) with a base wind speed of up to 30 m/s (corresponds to wind zone 4 in Germany) in terrain category 1. Mounting bracket made of die-cast aluminum. The sturdy mounting bracket with 3 holes enables both 2-point fastening and central 1-point fastening. Spotlight head can be pivoted using one-point mounting on the mounting bracket. The pivot position is secured using toothed locks. Spotlight head and mounting bracket are fully assembled when delivered. Mast mounting for single and multiple use possible using accessories. In MLT version (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical medium-wide beam light distribution. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with constant luminous flux at the end of the service life (CLO). LED system consisting of 4 MLT LED modules, each with 4 LEDs. Rated luminous flux 3200 lm, rated power 24 W, maximum luminaire luminous efficacy 133 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body and cover plate carrier made of die-cast aluminum. Cover plate made of flat single-pane safety glass attached to the carrier frame. Luminaire body (primary color) and retaining bracket (additional color) in contrasting colors. Primary color anthracite (DB 703), additional color silver gray (RAL 9006). Luminaire housing with highly weatherproof powder coating. Other color variants according to RAL or DB color code possible. Dimensions (L x W): 503 mm x 390 mm, height 240 mm. Ball-proof according to DIN 18032-3. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK09. Wind attack area fw . Weight: 8.0 kg. With control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
Type: LnPlus 40-AM19L/3200-730 4G1 ETDD
