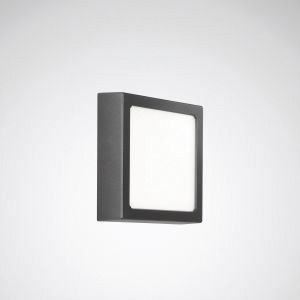

TRILUX Skeo Square MULTILC WD1 1G1Y ET wall light electronic transformer 7867840

Square, decorative LED surface-mounted light for wall and ceiling mounting. The wall light's optical and technical design features mean that its design language harmonizes with other lights that can be used in the project. Can also be used holistically inside the building. Surface-mounted lights for ceiling and wall mounting. With Lambertian light intensity distribution. Luminaire luminous flux adjustable in 2 levels, light color adjustable in 2 levels. The LED system forms a firmly connected unit with the luminaire cover and can be replaced. LED system with adjustable luminaire luminous flux and adjustable light color via DIP switch. Rated luminous flux 670 lm - 1000 lm, rated power 8.5 W - 12 W, maximum luminaire luminous efficacy 85 lm/W. Selectable color temperature: 3000 / 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 4 SDCM. Average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Cover made of highly impact-resistant PMMA, opal. Surface anthracite coated (DB 703). Dimensions (L x W): 260 mm x 260 mm, luminaire height 72 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK10. Weight: 2.1 kg. With 3-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 1 kV / 2 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
Type: Skeo Square MULTILC WD1 1G1Y ET
