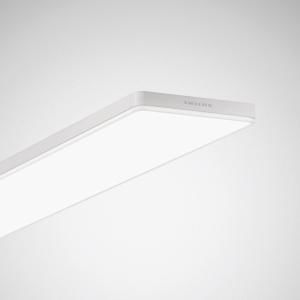

TRILUX LunexoAct D2 CDP-I 5500 ETDD8 +LLWC 01 surface-mounted light, 66W, 7793462

Exclusive rectangular LED surface-mounted luminaire with rounded corners and visible light edge. With integrated LiveLink WiFi control unit for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. Surface-mounted luminaire for ceiling mounting indoors. For single luminaire applications. With internal micro-prismatic CDP-I. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1500 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 10.5 kg. With two electronic control gear, digitally dimmable (DALI DT8). Control gear in accordance with DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after the invoice date subject to reasonable changes that serve progress.
Type: LunexoAct D2 CDP-I 5500 ETDD8 +LLWC 01
