TRILUX 2340 G2 WD1 LED 14/08/ML-8MC ET LED surface-mounted luminaire rd 7790140 content_copy

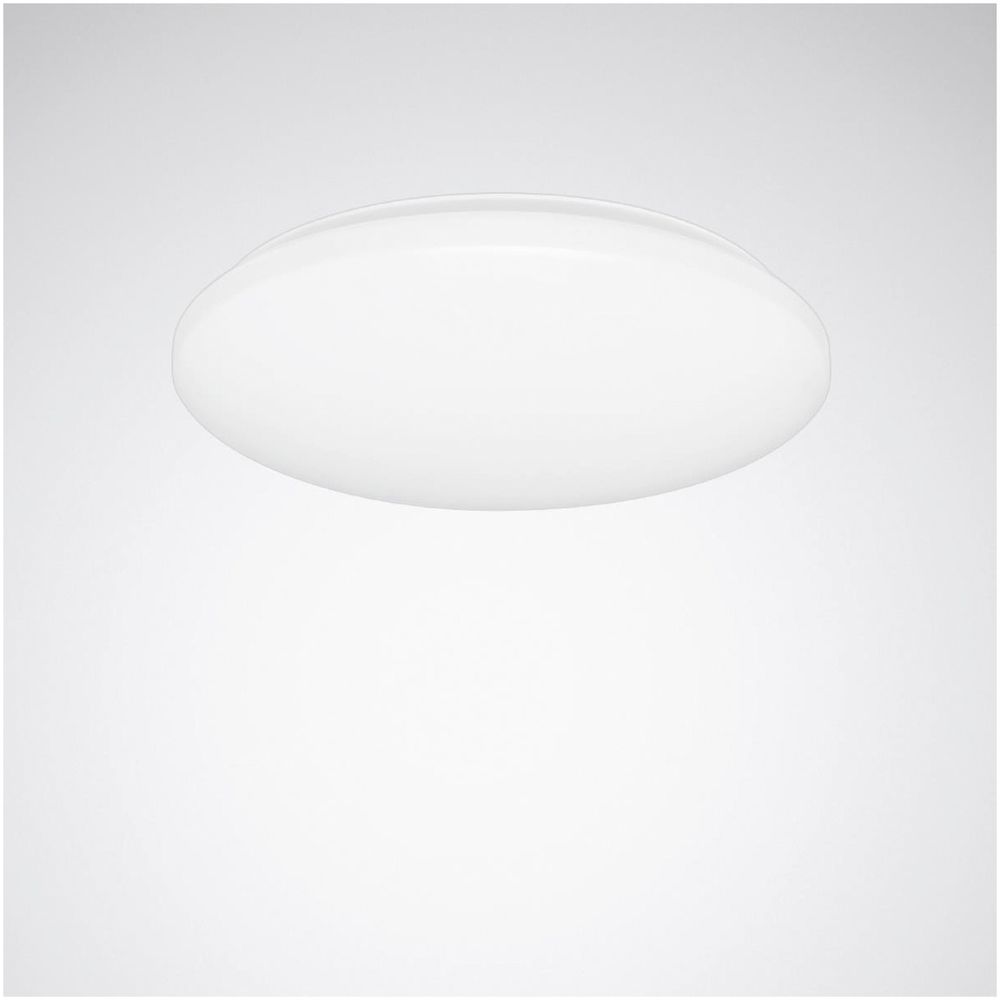

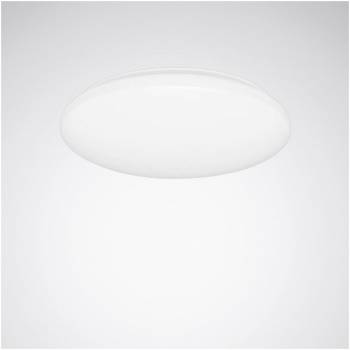

Round LED surface-mounted light with cover made of polystyrene. For wall or ceiling mounting. The cover is held securely in place by a bayonet lock. Round, opal cover, spherically shaped. With Lambertian light distribution. Luminaire luminous flux adjustable in 2 levels, light color adjustable in 2 levels. Rated luminous flux 760 lm - 1400 lm, rated power 8 W - 13 W, maximum luminaire luminous efficacy 108 lm/W. Light color warm white or neutral white, correlated color temperature (CCT) 3000 K or 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 5 SDCM. Average rated service life L65(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Luminaire body made of aluminum. Surface coated white (RAL 9016). Diameter of the cover Ø 330 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
Type: 2340 G2 WD1 LED 14/08/ML-8MC ET
