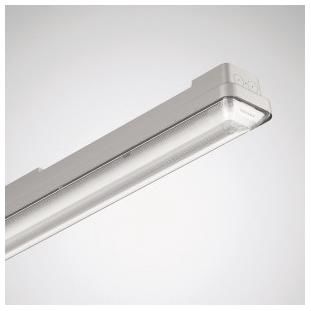

LED damp-proof luminaire
IP 66 for use in applications with high demands on variability, efficiency, light quality and technology. The luminaire is part of a range with identical, technically compatible variants. These variants are available with alternative optical systems, light engines with adjustable luminous fluxes and with connection options to light management and emergency lighting systems. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Suspended installation possible using optional accessories. Ceiling mounting using the enclosed stainless steel fastening clip. Suspended installation possible using optional accessories. With a prismatic, photometrically effective, translucent PC cover, direct beam. With symmetrical, wide beam light distribution. Luminaire luminous flux and light color fixed. Rated luminous flux 8100 lm, rated power 53 W, maximum luminaire luminous efficacy 153 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L80(tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP 66, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.1 kg. With 5-pin connection terminal up to 2.5 mm2. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
AragF 15 P-W 80-840 ETDD PC
Questions & answers
What is the delivery time of Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651?
The article Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 7412651 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651 always at the best possible price. We can give you a discount of 2% on
Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651 we can offer you a price of 284,87 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux AragF 15 PW 80-840 ETDD PC wet room light 53W 7412651 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
