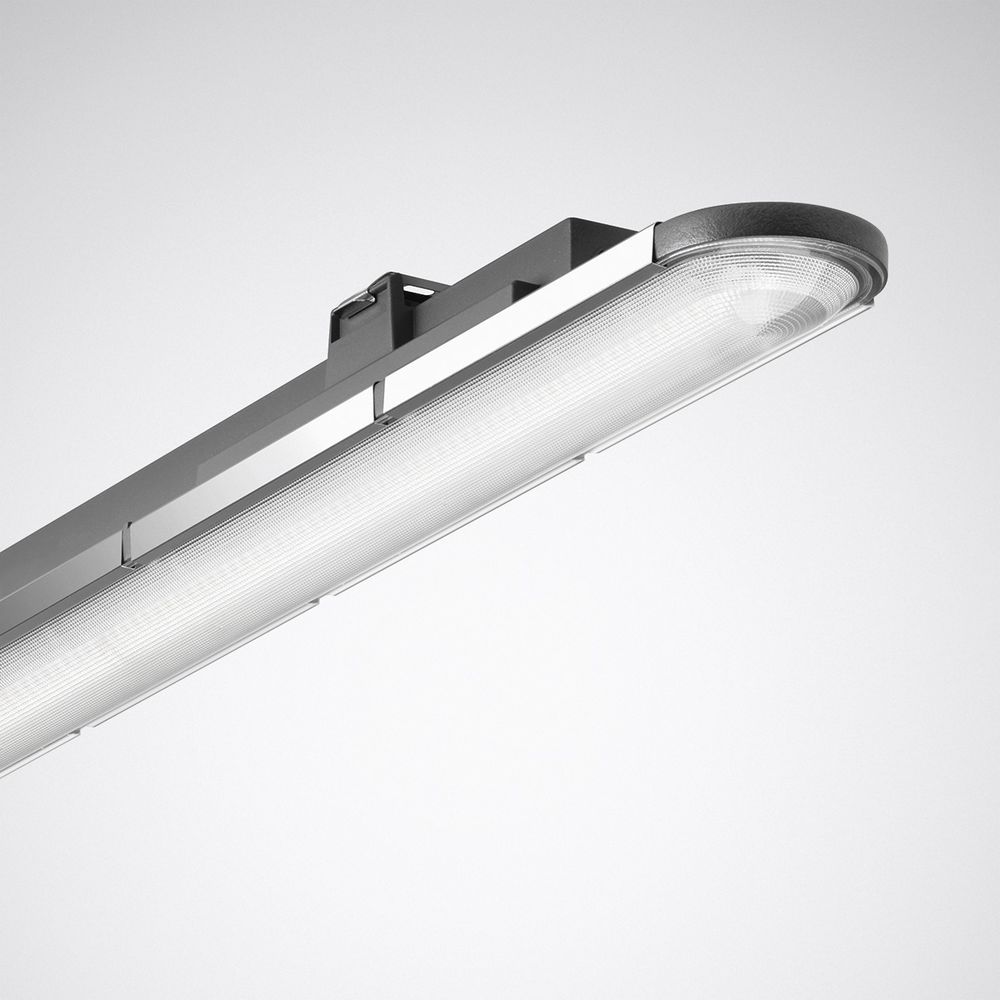

Trilux Nextrema G3 XB 60-840 ET +HFS TWP wet room light 46W 7367740

LED damp-proof light. Phoenix type quick-connect system. With integrated HF motion sensor. With integrated HF motion sensor. Shape of the detection area similar to an ellipse, length of the detection area up to 12 meters, width of the detection area up to 8 m. The IR remote control available as an accessory can be used to set the functional parameters signal strength, hold time and, in conjunction with luminaires of the ETDD switching type, light value and dimming level. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling and wall as well as suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ mounting rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). Optical system consisting of primary optics with PMMA diffuser. With symmetrical, extremely wide beam light distribution. Luminaire luminous flux and light color are fixed. Rated luminous flux 6000 lm, rated power 39 W, maximum luminaire luminous efficacy 154 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Color of lamp body anthracite, dimensions (L x W): 1047 mm x 96 mm, lamp height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.3 kg. With front-side connection plug type Phoenix. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick connection plug. The lamp is suitable for operation on a 230 V direct current network (DC). With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: Nextrema G3 XB 60-840 ET +HFS TWP
