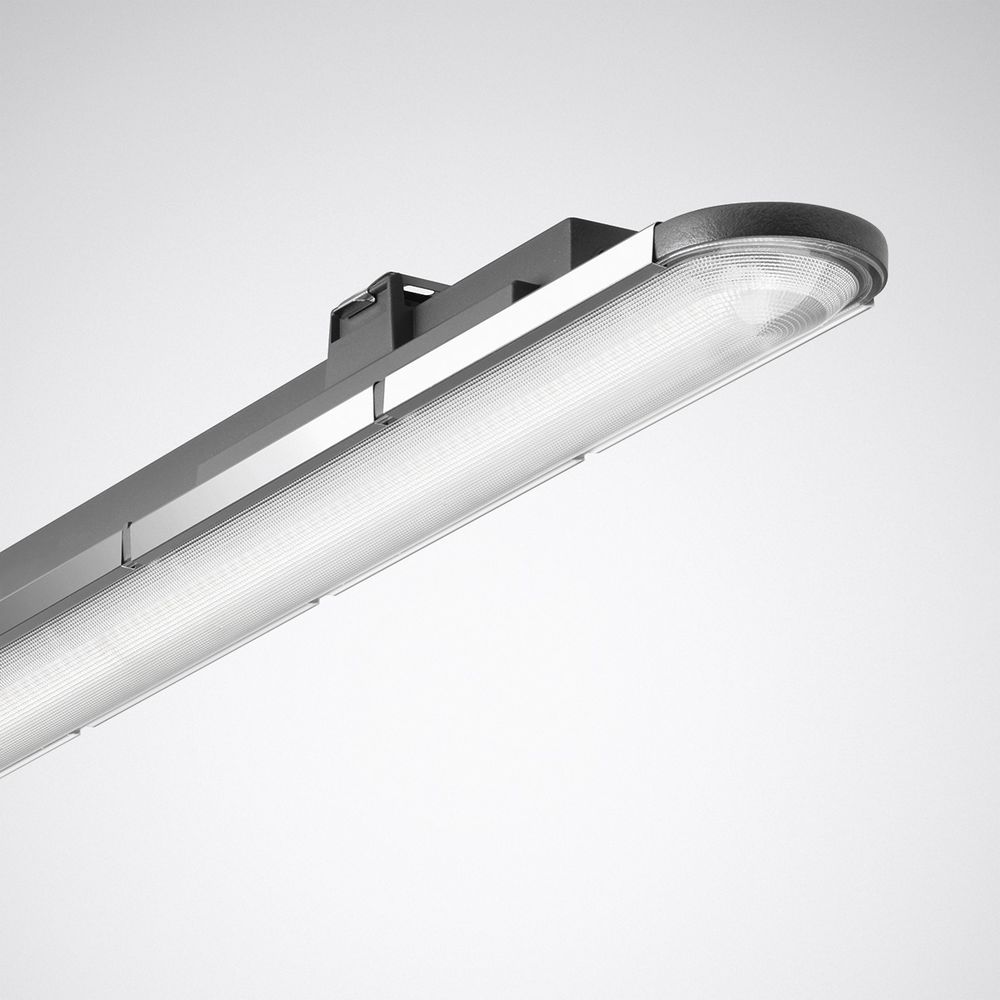

LED damp-proof light. Phoenix type quick-connect system. With integrated HF motion sensor. With integrated HF motion sensor. Shape of the detection area similar to an ellipse, length of the detection area up to 12 meters, width of the detection area up to 8 m. The IR remote control available as an accessory can be used to set the functional parameters signal strength, hold time and, in conjunction with luminaires of the ETDD switching type, light value and dimming level. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling and wall as well as suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ mounting rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). PMMA diffuser with internal prism structure. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP66, shock resistance according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.1 kg. With front-side connection plug type Phoenix. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick-connection plug. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
Nextrema G3 B 60-840 ET +HFS TWP
Questions & answers
What is the delivery time of Trilux Nextrema G3 B 60-840 ET +HFS TWP wet room light 45W 7362940?
The article Trilux Nextrema G3 B 60-840 ET +HFS TWP wet room light 45W 7362940 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 7362940 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Nextrema G3 B 60-840 ET +HFS TWP wet room light 45W 7362940 always at the best possible price. We can give you a discount of 2% on
Trilux Nextrema G3 B 60-840 ET +HFS TWP wet room light 45W 7362940 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Nextrema G3 B 60-840 ET +HFS TWP wet room light 45W 7362940 we can offer you a price of 417,51 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
