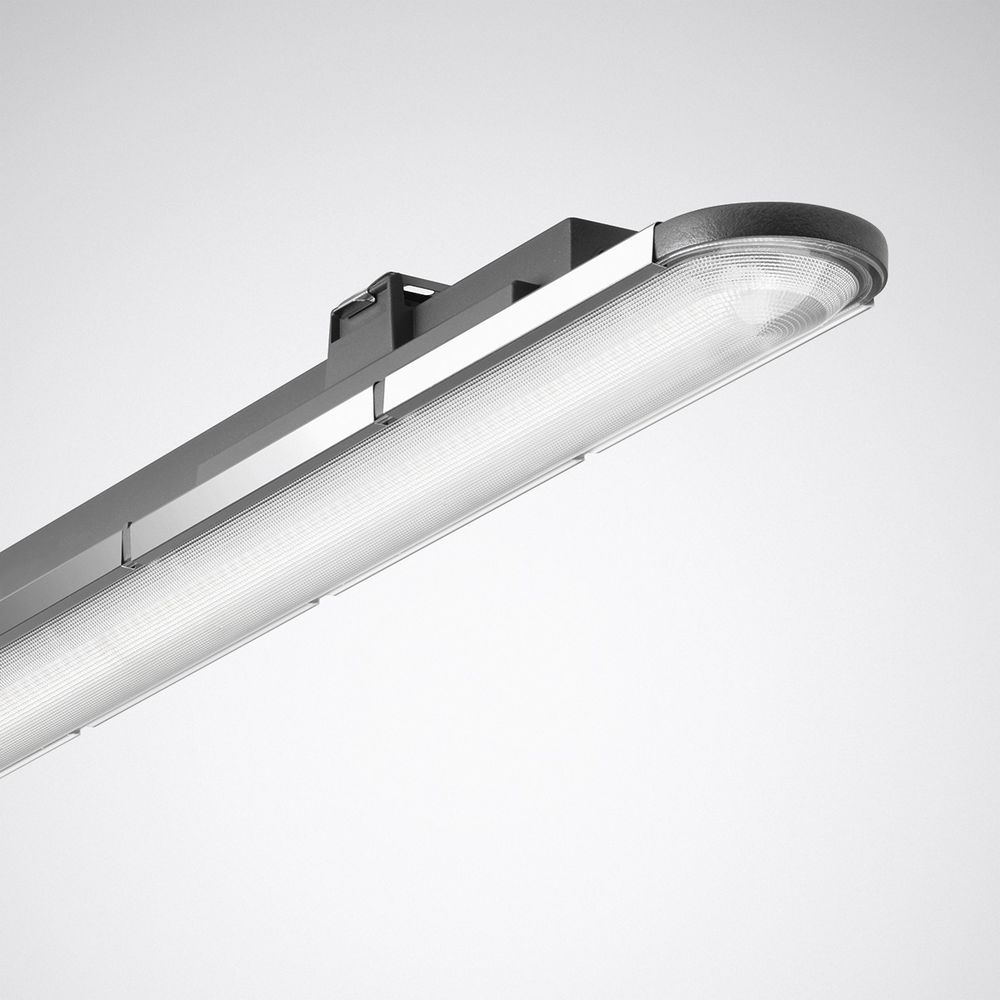

Trilux Nextrema G3 B 40-840 ET TWP wet room light 30W 7361840 content_copy

LED damp-proof luminaire. Phoenix type quick-connect system. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (e.g. ATL1). PMMA diffuser with internal prism structure. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Die-cast aluminum luminaire body. Robust design with vibration-free components. Color of luminaire body anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.9 kg. With front-mounted connector plug type Phoenix. The electrical connection is made without tools. The strain relief of the connecting cable is provided by means of the M25 screw connection of the quick-connection plug. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: Nextrema G3 B 40-840 ET TWP
