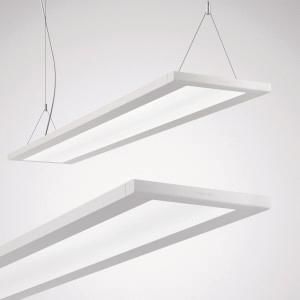

Trilux LuceoS H2-L CDP 6500-830 ETDD 01 louvre light 6300lm 7017651

Versatile luminaire module for suspended and surface-mounted luminaires. In combination with accessories that must be ordered separately, the modules are completed to form individual luminaires or light strip applications with a continuous light emission surface for surface-mounted or suspended installation. In combination with the accessories that must be ordered separately for the desired application, the module is suitable for suspended and surface-mounted installation. Suspended light strip application across corners is possible using a node that must be ordered separately. With highly efficient CDP microprismatics. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L90(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1490 mm x 240 mm, luminaire height 20 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.1 kg. The electrical connection is made by plugging in the connection headpiece. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using the touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: LuceoS H2-L CDP 6500-830 ETDD 01
