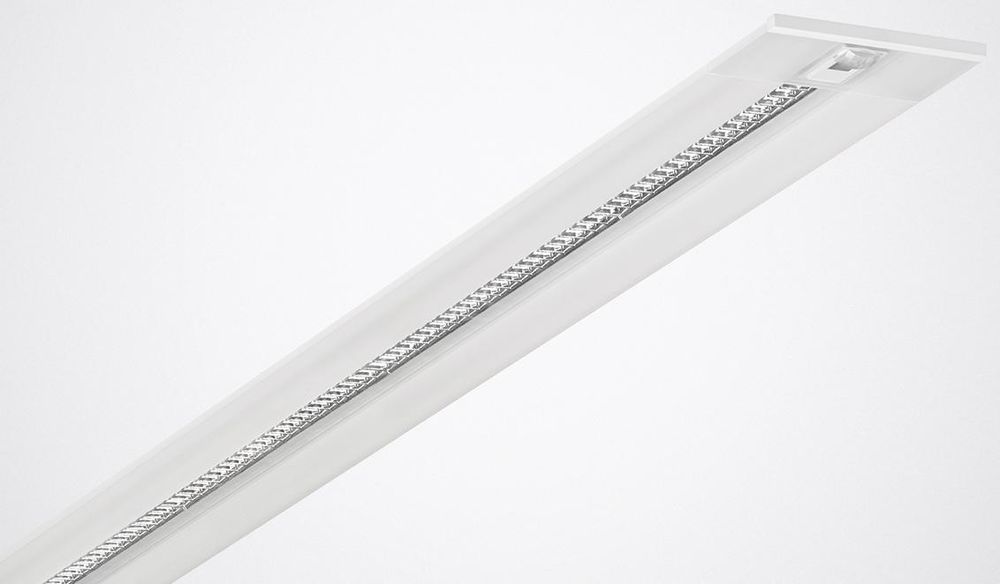

LED recessed light for single or strip light applications. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight-dependent control and presence detection as well as a WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink Sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the run-on time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Continuous light strips by connecting the luminaire bodies using tool-free assembly technology. Optical system in micro-reflector technology (MRX) with highly efficient, aluminum-coated reflector chambers made of plastic for high glare control and efficiency. Discreet lateral light output over the entire length of the luminaire. With symmetrical, limited, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. The mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear, digitally dimmable (DALI). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request.The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
SFlow C3-L MRX LED4000-840 ETDD LLWM 01
Questions & answers
What is the delivery time of Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651?
The article Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6922651 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651 always at the best possible price. We can give you a discount of 2% on
Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651 we can offer you a price of 1.085,57 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux SFlow C3-L MRX LED4000-840 ETDD LLWM 01 recessed light 30W 4000lm 6922651 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
