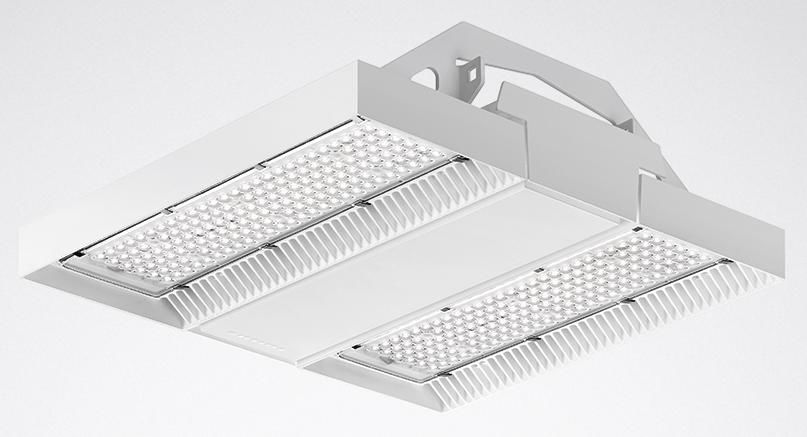

Robust LED high bay spotlight, ball-proof. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Suitable for use in rooms with an increased fire risk. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. Surface-mounted luminaire for ceiling mounting. Optical system composed of a PC lens optic. With symmetrical, narrow beam light distribution. Luminaire luminous flux and light color fixed. LED system consisting of 2 LED modules, mounted on an aluminum support. Rated luminous flux 13300 lm, rated power 78 W, maximum luminous efficacy of the luminaire 171 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, Television Lighting Consistency Index (TLCI) > 60. General color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 50 °C) = 100,000 h, L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 320 mm x 342 mm, lamp height 63 mm. Reinforcement on the rear of the lamp body for special use in sports facilities. Ball-proof in accordance with DIN 18032-3. Permissible ambient temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP65, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 4.3 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type:
Mirona Fit-Spo TB LED 13000-840 ETDD
Questions & answers
What is the delivery time of Trilux Mirona Fit-Spo TB LED 13000-840 ETDD hall light deep/wide 13200lm 691865?
The article Trilux Mirona Fit-Spo TB LED 13000-840 ETDD hall light deep/wide 13200lm 691865 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6918651 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Mirona Fit-Spo TB LED 13000-840 ETDD hall light deep/wide 13200lm 691865 always at the best possible price. We can give you a discount of 2% on
Trilux Mirona Fit-Spo TB LED 13000-840 ETDD hall light deep/wide 13200lm 691865 if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Trilux Mirona Fit-Spo TB LED 13000-840 ETDD hall light deep/wide 13200lm 691865 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
