Trilux SFlow H3-L MRWD LED6400-840 ETDD LLWS 01 hanging light 6300lm ws 6917751

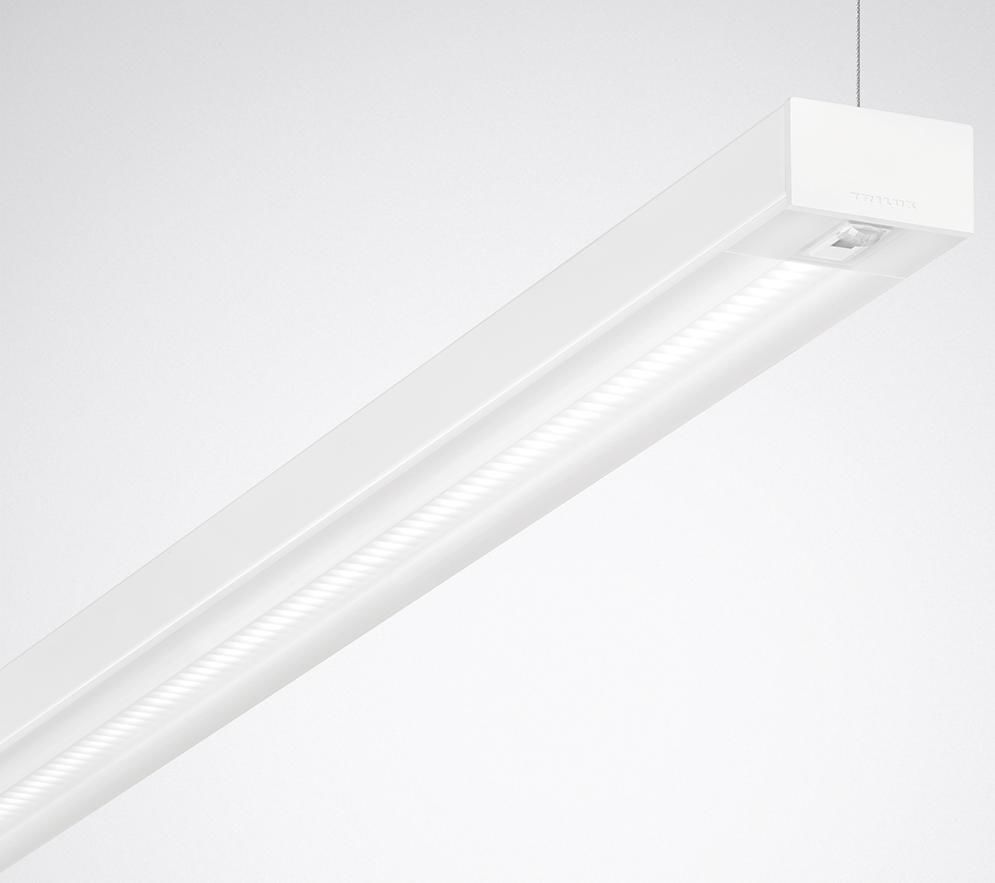

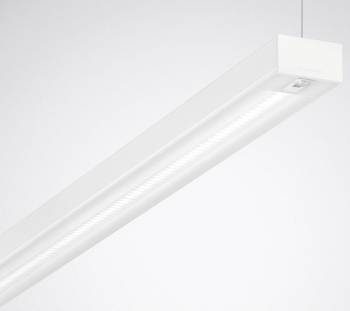

LED pendant light for single or strip lighting applications. With integrated LiveLink sensor for connection to a LiveLink control unit for daylight-dependent control and presence detection. LiveLink Sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the switch-off time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended installation height of 2.8 m, permissible installation height 2.5 m to 4 m. For suspended installation. As a single light or in a light strip application. Optical system in micro reflector technology (MRWD) with highly efficient, white-polished reflector chambers made of plastic with diffuser disc for an evenly illuminated light image with maximum visual comfort. With additional clear cover disc integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the light. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. Mains connection is made using plug-in terminals. Electrical connection of the components is made independently. With electronic control gear, digitally dimmable (DALI). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear,optical system) 15 years after the invoice date, subject to reasonable changes in the interests of progress.
Type: SFlow H3-L MRWD LED6400-840 ETDD LLWS 01
