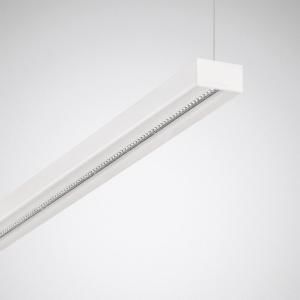

Trilux SFlow H2-L MRX LED6400-840 ET 01 LED hanging light 6300lm ws 6899640

LED pendant luminaire for single or strip light applications. For suspended installation. As a single luminaire or in strip light application. Optical system in micro reflector technology (MRX) with highly efficient, aluminum-coated reflector chambers made of plastic for high glare control and efficiency. Discreet lateral light output over the entire length of the luminaire. With symmetrical, limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.1 kg. Mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type: SFlow H2-L MRX LED6400-840 ET 01
