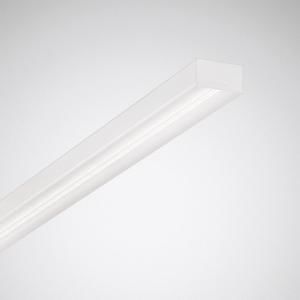

Trilux sFlow D2-L MLA LED4600-840 ETDD, 01 LED Recessed louvred luminaire 6896251

LED surface-mounted luminaire for single or strip lighting applications. Surface-mounted luminaire for ceiling mounting. With separately ordered installation accessories also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. With separately ordered accessories also suitable for suspended mounting (ZS1P 2000). Optical system in Micro Linear Technology (MLA) with highly efficient reflector comb made of profiled plastic with diffuser disc. Flush-mounted on the room side and protection of the LED as well as minimization of point luminance. Discreet lateral light output over the entire length of the luminaire. With asymmetrical wide beam light distribution. Luminaire luminous flux and light color permanently set. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 4700 lm, rated power 29 W, maximum luminaire luminous efficacy 162 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.2 kg. Mains connection is made using plug-in terminals. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: SFlow D2-L MLA LED4600-840 ETDD 01
