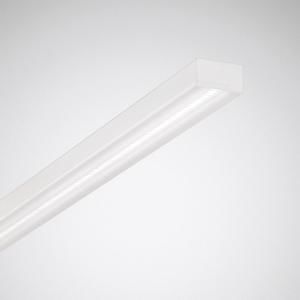

Trilux SFlow D1-L MRWD LED3200-840ETDD01 LED surface-mounted light 25W 3200lm 6895451

LED surface-mounted light for single or strip lighting applications. Surface-mounted light for ceiling mounting. With separately ordered installation accessories also suitable for use in panel ceilings (SFlow ZBP L1). For panel ceilings in module 100. With separately ordered accessories also suitable for suspended mounting (ZS1P 2000). Optical system in micro reflector technology (MRWD) with highly efficient, white-polished reflector chambers made of plastic with diffuser disc for an evenly illuminated light image with maximum visual comfort. With additional clear cover disc integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the light. With Lambertian light intensity distribution. Light luminous flux and light color permanently set. LED system and light optics can be snapped into the light body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 3200 lm, rated power 22 W, maximum luminaire luminous efficacy 145 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1132 mm x 84 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.3 kg. Mains connection is made using plug-in terminals. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: SFlow D1-L MRWD LED3200-840 ETDD 01
