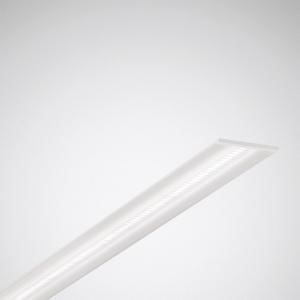

Trilux sFlow C2-L MRWD LED4000-840 ET 01, LED Recessed louvred luminaire 6894040

LED recessed light for single or strip light applications. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Continuous strip lights by connecting the light bodies using tool-free assembly technology. Optical system in micro reflector technology (MRWD) with highly efficient, white-polished reflector chambers made of plastic with diffuser disc for an evenly illuminated light image with maximum visual comfort. With additional clear cover disc integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the light. With Lambertian light intensity distribution. Light luminous flux and light color are permanently set. LED system and light optics can be snapped into the light body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 4000 lm, rated power 31 W, maximum luminaire luminous efficacy 129 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.0 kg. Mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: SFlow C2-L MRWD LED4000-840 ET 01
