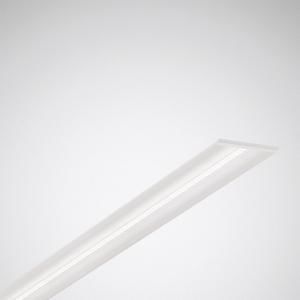

LED recessed light for single or strip light applications. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Continuous strip lights by connecting the luminaire bodies using tool-free assembly technology. Optical system in Micro Linear Technology (MLA) with highly efficient reflector comb made of profiled plastic with diffuser disc. Discreet lateral light output over the entire length of the luminaire. With asymmetrical, wide beam light distribution. Luminaire luminous flux and light color fixed. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 4700 lm, rated power 29 W, maximum luminaire luminous efficacy 162 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1413 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.9 kg. The mains connection is made using plug-in terminals. The electrical connection of the components is made automatically. With electronic control gear, digitally dimmable (DALI). Control gear in accordance with the DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear can be replaced in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
SFlow C2-L MLA LED4600-840 ETDD 01
Questions & answers
What is the delivery time of Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651?
The article Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6893651 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651 always at the best possible price. We can give you a discount of 2% on
Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651 we can offer you a price of 493,33 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux SFlow C2-L MLA LED4600-840 ETDD01 LED recessed light 36W 4500lm 6893651 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
