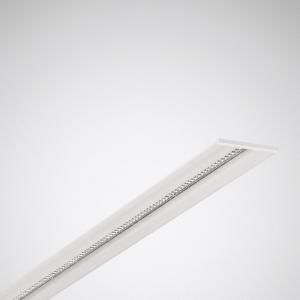

Trilux sFlow C1-L MRX LED3200-840 ET 01, LED Recessed louvred luminaire 6893440

LED recessed luminaire for single or strip light applications. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L1). For panel ceilings in module 100. Continuous strip lights by connecting the luminaire bodies using tool-free assembly technology. Optical system in micro reflector technology (MRX) with highly efficient, aluminum-coated plastic reflector chambers for high glare control and efficiency. Discreet lateral light output over the entire length of the luminaire. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1132 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.2 kg. The mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: SFlow C1-L MRX LED3200-840 ET 01
