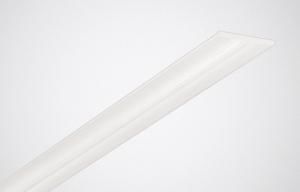

LED recessed light for single or strip light applications. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L1). For panel ceilings in module 100. Continuous strip lights by connecting the light bodies using tool-free assembly technology. Optical system in micro-reflector technology (MRW) with highly efficient reflector chambers made of white polished plastic for high lighting comfort and efficiency. With additional clear cover plate integrated in the optical system for flush-fitting on the room side and protection of the LED. Discreet lateral light output over the entire length of the light. With symmetrical, wide beam light distribution. Light luminous flux and light color permanently set. LED system and light optics can be snapped into the light body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. Rated luminous flux 3100 lm, rated power 21 W, maximum luminaire luminous efficacy 148 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1132 mm x 100 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.3 kg. Mains connection is made using plug-in terminals. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type:
SFlow C1-L MRW LED3200-830 ETDD 01
Questions & answers
What is the delivery time of Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751?
The article Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6892751 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751 always at the best possible price. We can give you a discount of 2% on
Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751 we can offer you a price of 426,11 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux sFlow C1-L MRW LED3200-830 ETDD, 01 LED Recessed louvred luminaire 6892751 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
