Trilux InperlaL G2 C07 HR19 2700-840ET01 LED downlight 25W 2700lm DA210 6869440 content_copy

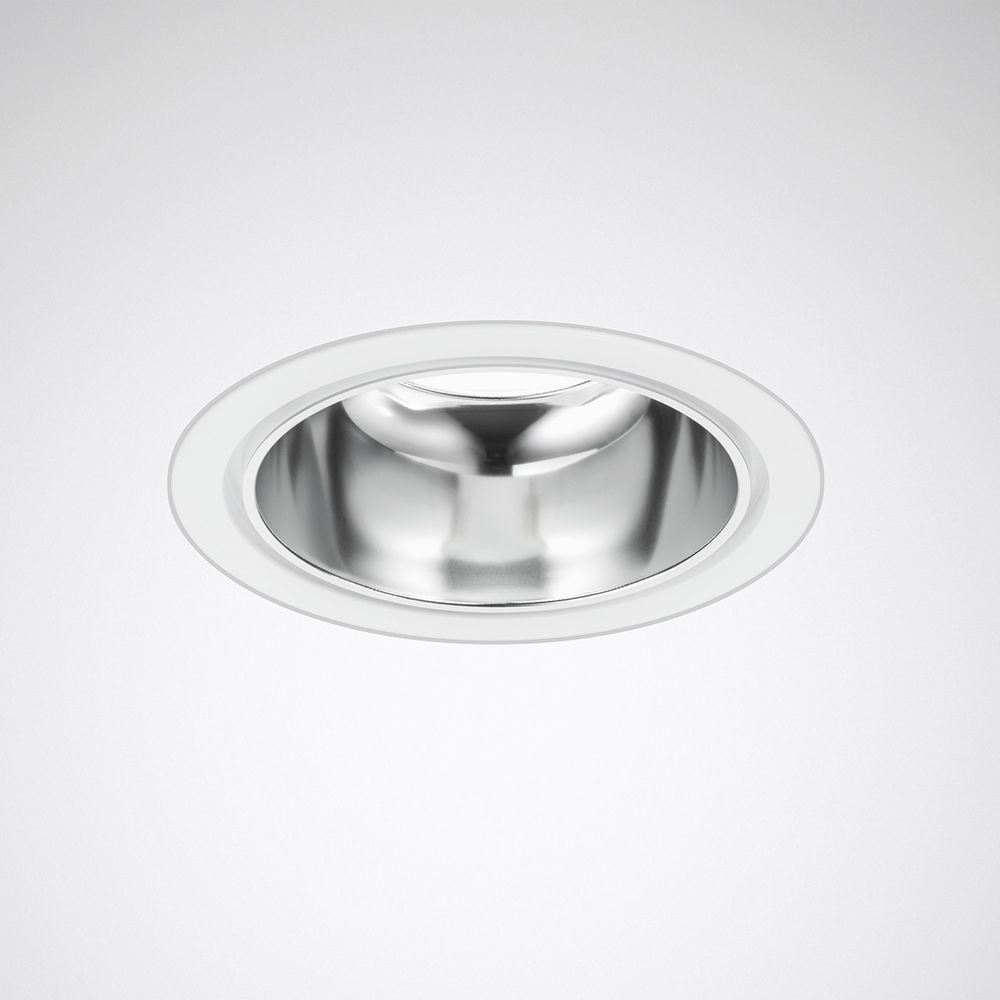

Round LED downlight with high-gloss aluminum reflector. Recessed downlight for sawn ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Suitable for installation in ceiling cutouts of Ø 210 mm - Ø 225 mm. In conjunction with a renovation ring as an optional accessory, ceiling openings up to Ø 260 mm are covered. Installation depth > 105 mm. High-gloss anodized aluminum reflector. With symmetrical limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Ceiling ring and heat sink made of die-cast aluminum. Surface coated white (RAL 9016). External dimensions of ceiling ring Ø 236 mm, luminaire height 103 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. In conjunction with a closed decorative cover, protection class IP54 is achieved on the room side. Protection class (EN 61140): II, protection type (DIN EN 60529): IP54, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 1.0 kg. With 3-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: InperlaL G2 C07 HR19 2700-840 ET 01
