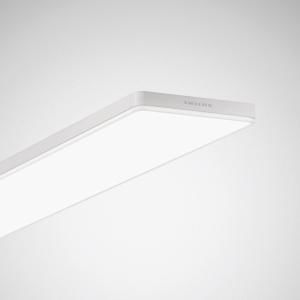

Trilux Lunexo D1 CDP-I 4400 840 ETDD 01, LED luminaire 6827851

Exclusive rectangular LED surface-mounted luminaire with rounded corners and visible light edge. Surface-mounted luminaire for ceiling mounting indoors. For single luminaire application. With internal micro-prismatic CDP-I. With symmetrical limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1200 mm x 200 mm, luminaire height 49 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.5 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Number of occupied DALI participants: 1. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: Lunexo D1 CDP-I 4400 840 ETDD 01
