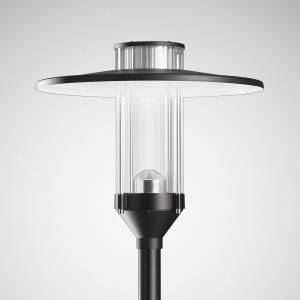

Decorative LED skylight lantern for mast mounting. With intelligent label for quick access to luminaire information using a QR code. For mast top Ø 76 mm. Also suitable for mounting on masts with a top Ø 60 mm using reducers that must be ordered separately. Matching mast on request. Optical system designed in multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetrical, wide-beam light distribution. The subsequent installation of a rear / side shield is possible as an accessory that must be ordered separately. Luminaire luminous flux and light color are fixed, with constant luminous flux at the end of the service life (CLO). LED system consisting of 4 LED modules. Rated luminous flux 3800 lm, rated power 31 W, maximum luminaire luminous efficacy 123 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum, luminaire roof made of corrosion-resistant aluminum, highly weatherproof powder-coated. Color black (RAL 9005). Coating suitable for marine weather on request. Luminaire roof powder-coated white on the inside. End cylinder made of highly impact-resistant PMMA, clear. Luminaire cover can be pushed up into self-locking service position. Protection class (EN 61140): II, protection type (DIN EN 60529):
IP23, protection type lamp compartment:
IP23. Shock resistance level according to IEC 62262: IK04. Protection type lamp compartment:
IP23. Mast available on request. Wind attack area fw 0.470 m2. Weight: 11.0 kg. With electronic control gear, switchable The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With connected, 6000 mm long supply cable. With insulated support point for the earth conductor. Electroblock with all electrical components can be replaced without tools. Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type:
9821 RB6L/3800-740 4G1S ET
Questions & answers
What is the delivery time of Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840?
The article Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6717840 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840 always at the best possible price. We can give you a discount of 2% on
Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840 we can offer you a price of 1.137,57 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux 9821 RB6L / 3800-740 4G1S ET, Skylight Lantern 6717840 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
