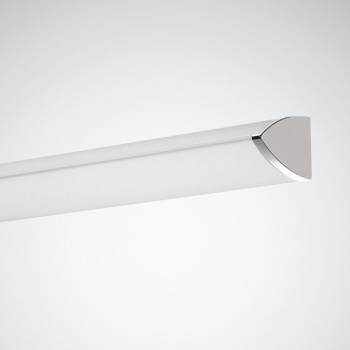

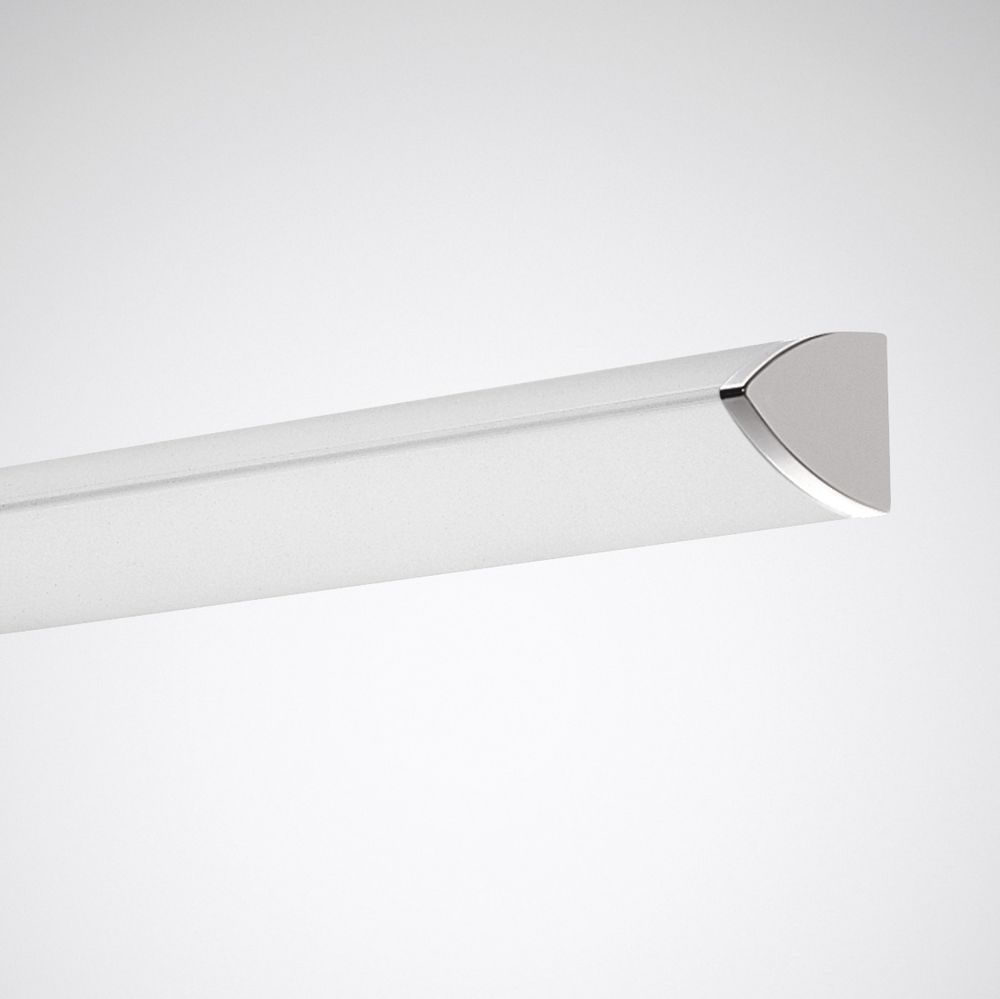

Trilux 6689440 6651 C LED1100-830 ET surface-mounted luminaire 12 W 1100 lm IP40 chrome content_copy

LED surface-mounted luminaires for ceiling and wall mounting. For horizontal or vertical mounting. Length optimized for tile and mirror dimensions. PMMA diffuser, opal, with internal grooved prism structure, made from one piece. With Lambertian luminous intensity distribution. Luminaire luminous flux and light color fixed. Rated luminous flux 1100 lm, rated power 11 W, maximum luminaire luminous efficacy 100 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum. . With flat plastic head pieces on the front, in a chrome design. Dimensions (L x W): 600 mm x 88 mm, luminaire height 111 mm. With cable duct integrated at the rear for cable routing with longitudinally offset wall outlet. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.4 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
