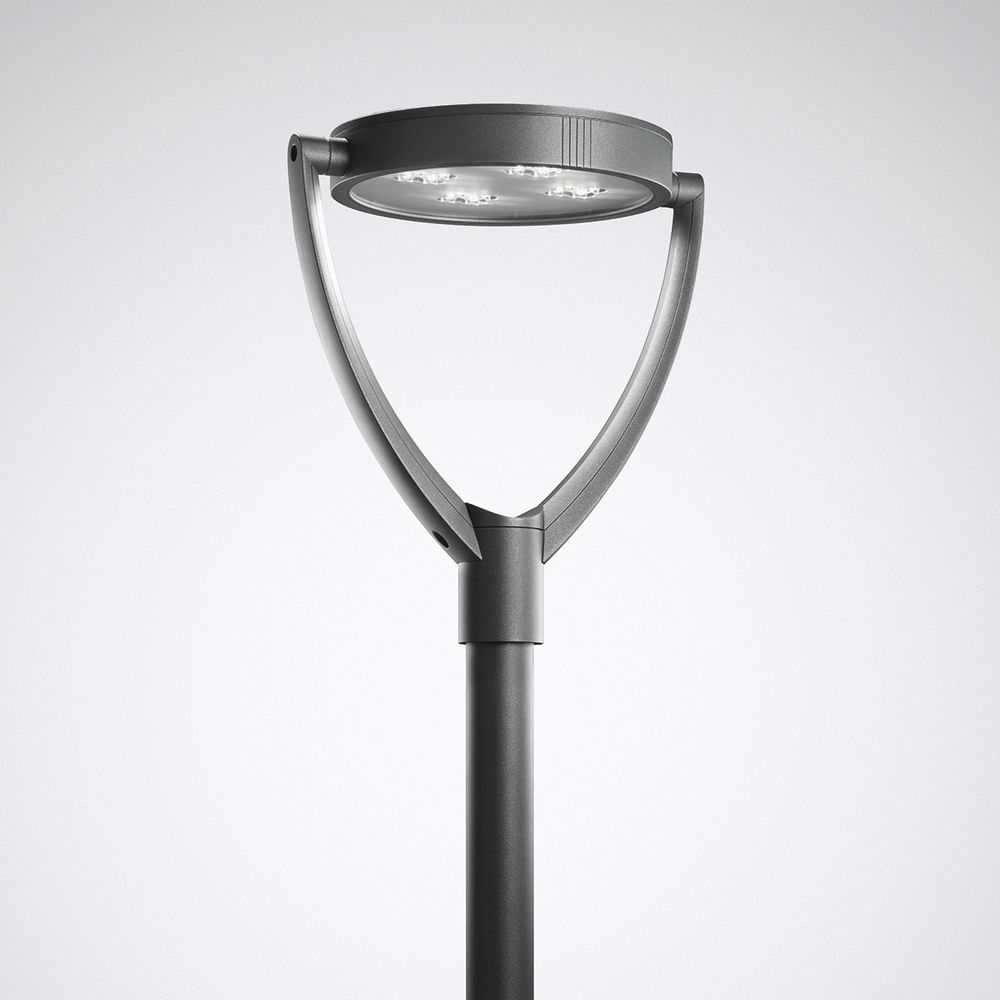

Trilux Publisca P1-RB6L-LRA/5600-740 6G 1S ET LED outdoor light 59W IP66 6683340

Decorative mast-top light with flat cover plate, parabolic mast top. With intelligent label for quickly calling up luminaire information using a QR code. With independent power reduction via integrated evaluation electronics. Reduction of the luminaire luminous flux to 50% for a period of 7 hours (-2h/+5h), distributed around a daily new center of the duty cycle. Mast-top light for mast spigot Ø 76 mm. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. Also suitable for mounting on masts with spigot Ø 60 mm using reducers that can be ordered separately. Matching mast on request. Optical system designed in multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetrical, wide beam light distribution. Optimized for horizontal alignment of the luminaire body. Additional beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear/side shield is possible as an accessory that must be ordered separately. Luminaire luminous flux and light color are fixed, with constant luminous flux at the end of the service life (CLO). With 6 LED modules. LED module consisting of four LEDs, including optical system. Rated luminous flux 5600 lm, rated power 51 W, maximum luminaire luminous efficacy 110 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface anthracite coated (DB 703). Coating suitable for marine weather on request. Tilt angle adjustable. Can be locked in 10° increments between 0° and 90°. Cover pane made of heat-treated toughened safety glass (ESG-H). Cover pane sealed in the luminaire body. With a transmittance of > 98%. Protection class (EN 61140): II, protection type (DIN EN 60529): IP23, protection type lamp compartment: IP23. Shock resistance level according to IEC 62262: IK08. Protection type lamp compartment: IP23. Mast available on request. Wind attack area fw 0.080 m2. Weight: 9.0 kg. Equipment carrier with all electrical components and LED modules mounted as the upper luminaire cover. Can be removed after loosening four V2A fastening screws. With operating device, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: Publisca P1-RB6L-LRA/5600-740 6G1S ET
