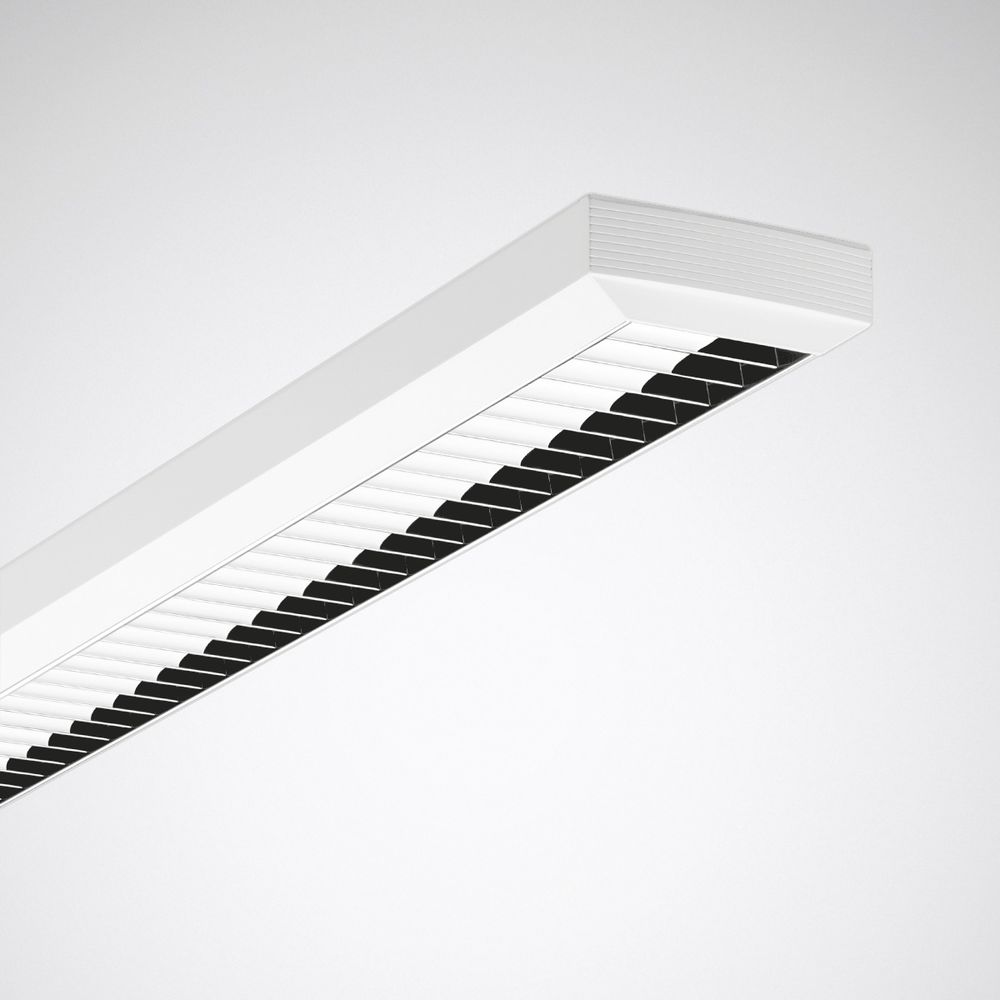

Trilux Atirion DL RPV 1500 5200-840 ET, LED grid mounted luminaire 6634640 content_copy

LED surface-mounted luminaire for single or strip light applications. For mounting on ceilings and overhangs indoors. With high-gloss anodized parabolic mirror louvre. Louvre fastening and automatic electrical protection measure through sliding contact locks. Louvre can be folded down and removed on both sides without tools. With symmetrical, limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 35,000 h, average rated service life L70(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Flat profile design, angled at 55° on the room side. Dimensions (L x W): 1548 mm x 197 mm, luminaire height 75 mm. Please order head pieces for individual luminaires or light strip ends separately. Luminaire body with integrated coupling bars for precisely aligned light strips with continuous grids. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 4.3 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
