Trilux 6634551 Atirion D-L RPV 1500 5200-830 ETDD LED surface-mounted luminaire 52W 5500lm

Your rating:
Average rating
product review for Trilux 6634551 Atirion D-L RPV 1500 5200-830 ETDD LED surface-mounted luminaire 52W 5500lm
( 4 / 5 ) 1 ratings
Trilux 6634551
This image may differ from the desired article.
312,26 EUR 315,02 EUR
( 371,59 EUR incl. VAT )
≈ £261.36  |  ≈ $343.17
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Trilux 6634551 Atirion D-L RPV 1500 5200-830 ETDD LED surface-mounted luminaire 52W 5500lm
Lieske Part No.:322102
Mfg Part No: 6634551
UPC/EAN: 4018242340323
Weight:5.18 kg
Type:Atirion D-L RPV 1500 5200-830 ETDD
Graduated prices net
From piecesPrice per pieces
4305,23 EUR
8298,21 EUR
12291,18 EUR
16284,16 EUR

Product information for Trilux 6634551:

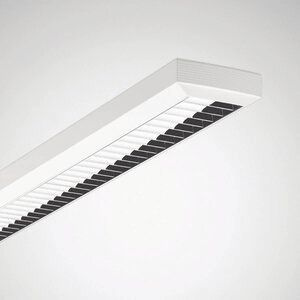

The Trilux Atirion D-L RPV 1500 5200-830 ETDD is an LED surface-mounted luminaire for indoor use, specifically designed for individual mounting or as part of a lighting strip on ceilings and soffits. The design features a flat profile with a room-side front angled at 55°, enabling optimal light direction and reduced glare. The luminaire body is made of sheet steel and is white-coated, comparable to RAL 9016, creating a clean, modern appearance. The luminaire includes a parabolic reflector grid, finished in high-gloss anodized, providing a symmetrical, limited wide light distribution. The grid mounting is tool-free, foldable on both sides, and removable, simplifying maintenance and replacement of the light source. Electrical protection is automatically ensured by sliding contact closures.

Applications

The luminaire is designed for indoor use, particularly in offices, administrative buildings, production halls, or other spaces requiring uniform, glare-free lighting. The lighting strip function allows for the creation of continuous light lines, with integrated coupling brackets ensuring precise alignment during installation. The permissible ambient temperature ranges from -20 °C to 25 °C, ensuring suitability for air-conditioned indoor environments.

Functions and Equipment in Detail

The luminaire is equipped with an electronic ballast that is digitally dimmable and complies with the DALI-2 standard (EN 62386). Control is via DALI control terminals with touch function (Touch DIM), enabling switching and dimming directly at the luminaire. The light source is replaceable according to Ecodesign requirements (EU Regulation 2019/2020), as is the ballast, enhancing maintenance and sustainability. The luminaire is Monitoring ready (MOR) and provides data for monitoring or predictive maintenance, making it compatible with TRILUX Monitoring Services.

Technology Explained Simply

The light distribution is symmetrical and limited wide, ensuring uniform illumination of the room. The glare rating according to UGR classification (EN 12464-1) is 80, indicating good glare limitation. The colour location tolerance (initial MacAdam) is 3 SDCM, ensuring high colour consistency and visual uniformity of the lighting. The average rated lifespan is L80 = 35,000 hours and L70 = 50,000 hours at an operating temperature of 25 °C. Flicker is minimal, with Pst LM = 1.0 at full load, and the stroboscopic effect is SVM = 0.4 at full load, contributing to a comfortable and work-friendly lighting environment.

Compatibility and Accessories

The luminaire is designed for use in lighting strips and features integrated coupling brackets for precise alignment. End caps for individual luminaires or lighting strip ends are available separately. The luminaire is equipped with a ballast that complies with the DALI-2 standard, allowing integration into existing DALI control systems. Compatibility with TRILUX Monitoring Services enables the use of monitoring and maintenance functions.

Mounting and Installation

Installation is carried out on ceilings or soffits in indoor spaces. The tool-free, foldable grid mounting on both sides simplifies installation and maintenance. The luminaire is designed for use in rooms with an ambient temperature range of -20 °C to 25 °C. Dimensions are 1548 mm (length) × 197 mm (width), with a height of 75 mm. The luminaire weighs 4.3 kg.

Operational Advantages

The luminaire offers high service life, low maintenance costs, and high energy efficiency. The replaceability of the light source and ballast according to Ecodesign requirements increases sustainability. DALI control enables flexible lighting management, and monitoring functions support predictive maintenance. Low glare and the flat design contribute to a pleasant lighting experience in the room.

Protection Class and Safety

The luminaire has protection class IP20 (DIN EN 60529), providing protection against finger contact and against solid foreign objects up to 12.5 mm. The protection class is I (EN 61140), and the impact resistance rating is IK02 (IEC 62262). The glow wire test according to IEC 60695-2-11 was conducted at a test temperature of 850 °C. The luminaire meets the essential requirements of applicable EU directives and the Product Safety Act and carries the CE marking. Additionally, it is ENEC certified, confirming safety through an independent testing body.

General
Light intensity distributionSymmetrically limited, wide beam
Glare rating UGR80
Colour point tolerance (initial MacAdam)3 SDCM
Flicker Pst LM1,0 at full load
Stroboscopic effect SVM0,4 at full load
Luminaire body materialsteel sheet
Surface protectionwhite coated similar to RAL 9016
Designflat profile, room-side angled 55°
Pitchparabolic reflector grid, high gloss, anodized
Grid mountingtool-free, foldable and removable on both sides
Protective measuresliding contact closures
Type of control gearelectronic, digital dimmable (DALI)
DALI standardDALI-2 (EN 62386)
ControlTouch function via DALI control terminals (Touch DIM)
Eco-design compliancelight source and operating device interchangeable VO (EU) 2019/2020
Monitoring functionMonitoring ready (MOR)
CompatibilityTRILUX Monitoring Services
Degree of protectionIP20 (DIN EN 60529)
Protection classI (EN 61140)
Shock resistance ratingIK02 (IEC 62262)
Filament test temperature850 °C
Permissible ambient temperature-20 to 25 °C
Luminaire height75 mm
CE markingYes
ENEC certificationYes
