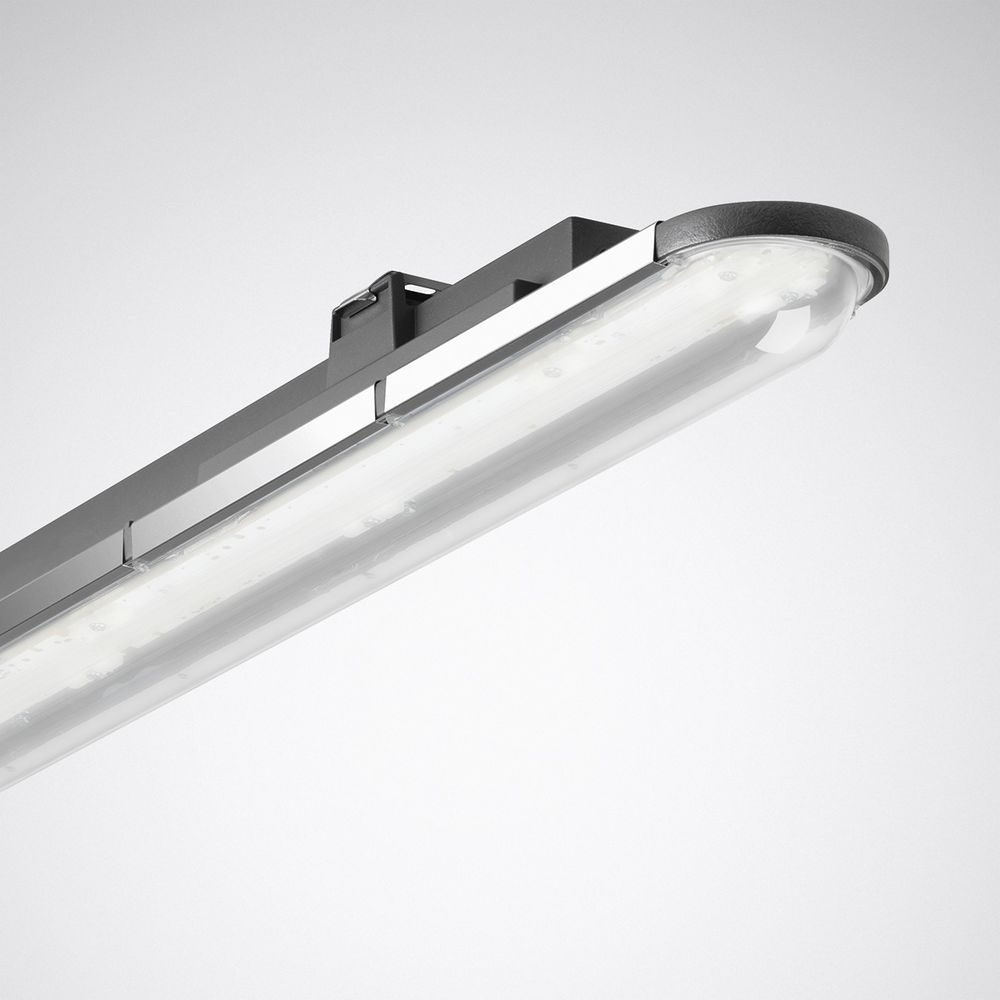

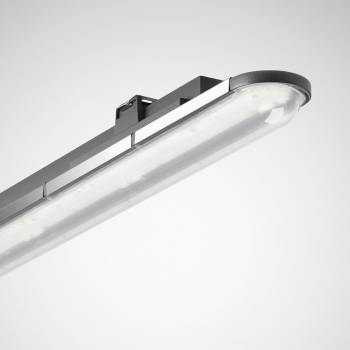

LED damp-proof luminaire. Wieland type quick-connect system. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for damp rooms and covered outdoor areas. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). Optical system consisting of primary optics with PC diffuser. With symmetrical, narrow beam light distribution. Luminaire luminous flux and light color fixed. Rated luminous flux 8000 lm, rated power 50 W, maximum luminaire luminous efficacy 160 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 112 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP66, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.5 kg. With WIELAND type connection plug on the front. Matching connection socket included in delivery. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type:
Nextrema G3 TB 8000-840 ETDD PC
Questions & answers
What is the delivery time of Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K?
The article Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6634351 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K always at the best possible price. We can give you a discount of 2% on
Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K we can offer you a price of 470,37 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux Nextrema G3 TB 8000-840 ETDD PC, LED Waterproof luminaire 57W 4000K via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
