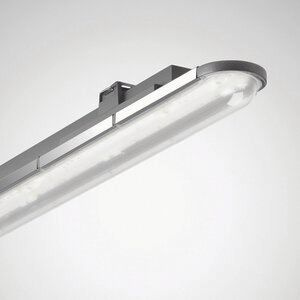

Trilux 6634340 Nextrema G3 TB 8000-840 ET PC LED trough light 57 W 8000 lm IP66 content_copy

LED damp-proof luminaire. Wieland type quick-connect system. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for damp rooms and covered outdoor areas. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). Optical system consisting of primary optics with PC diffuser. With symmetrical, narrow beam light distribution. Luminaire luminous flux and light color fixed. Rated luminous flux 8000 lm, rated power 50 W, maximum luminaire luminous efficacy 160 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 112 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 3.4 kg. With WIELAND type connection plug on the front. Matching connection socket included in delivery. The light is suitable for operation on a 230V direct current network (DC). With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the light is ENEC-certified by an independent testing body. Light 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
