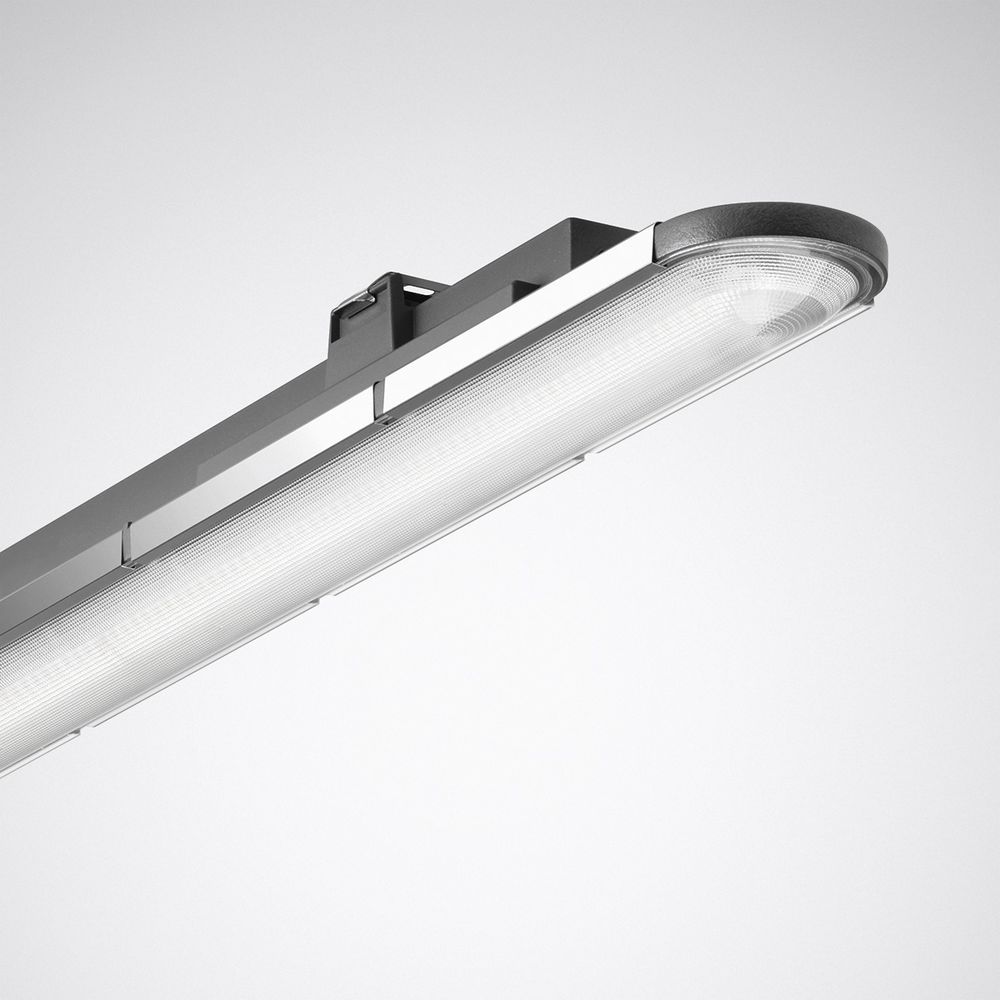

LED damp-proof luminaire. With through-wiring 5 x 1.5 mm2. Quick-connect system type Wieland. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). Optical system consisting of primary optics with PMMA diffuser. With symmetrical, extremely wide beam light intensity distribution. Luminaire luminous flux and light color are fixed. Rated luminous flux 6000 lm, rated power 39 W, maximum luminaire luminous efficacy 154 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP66, shock resistance according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.3 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick connection plug. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type:
Nextrema G3 XB 6000-840 ETDD +LV
Questions & answers
What is the delivery time of TRILUX Nextrema G3?
The article TRILUX Nextrema G3 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6632451 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TRILUX Nextrema G3 always at the best possible price. We can give you a discount of 2% on
TRILUX Nextrema G3 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of TRILUX Nextrema G3 we can offer you a price of 484,07 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
